ASSEMBLY

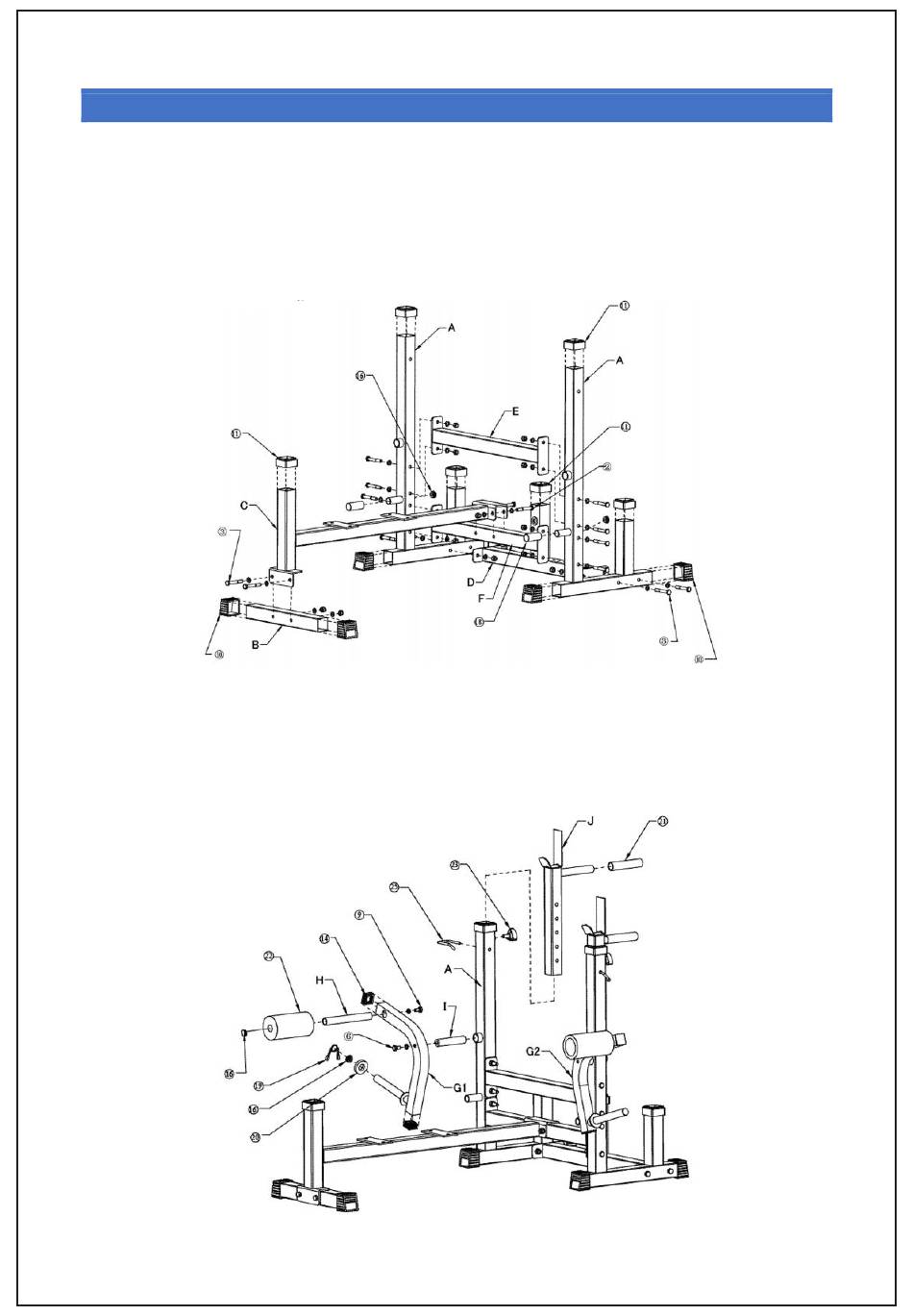

Step 1:
•
Install 2 x foot covers (10), tube bushing (11) and rubber cover (18) on A.
•
Install 2 x foot covers (10) on B.
•
Install 1 x tube bushing (11) on C and D.
•
Install 14 x M10x70 bolts, nuts, and washers (3) and 2 x M10x75 bolts (2).
Step 2:
•
Install 2 x 38mm tube plugs (14) and 1 x 25 tube plug (16) and spring clip (19) on G1 and G2.
•
Install H and I on G1 and G2 with 1 x M8x20 bolt and washer (9) and 1 x M10x20 bolt and
washer (6).
•
Install 25 x tube plug (16) and 2 x foam rollers (22) on H.
•
Install 2 x grip handle covers (21) on J1 and J2.
•
Install J1/J2 on A with 1 x lock catch (25) and triangle handle (23).
