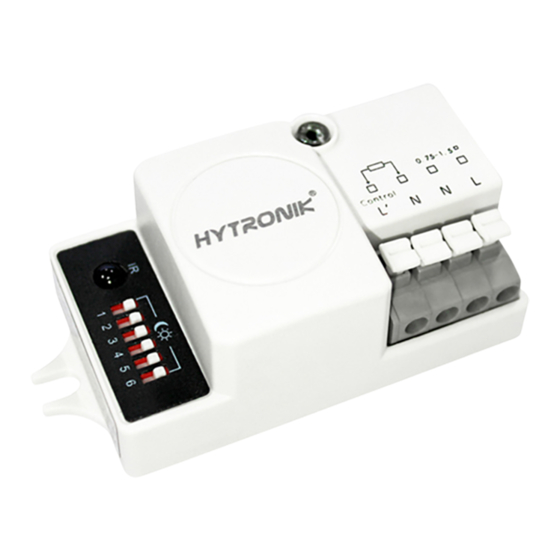

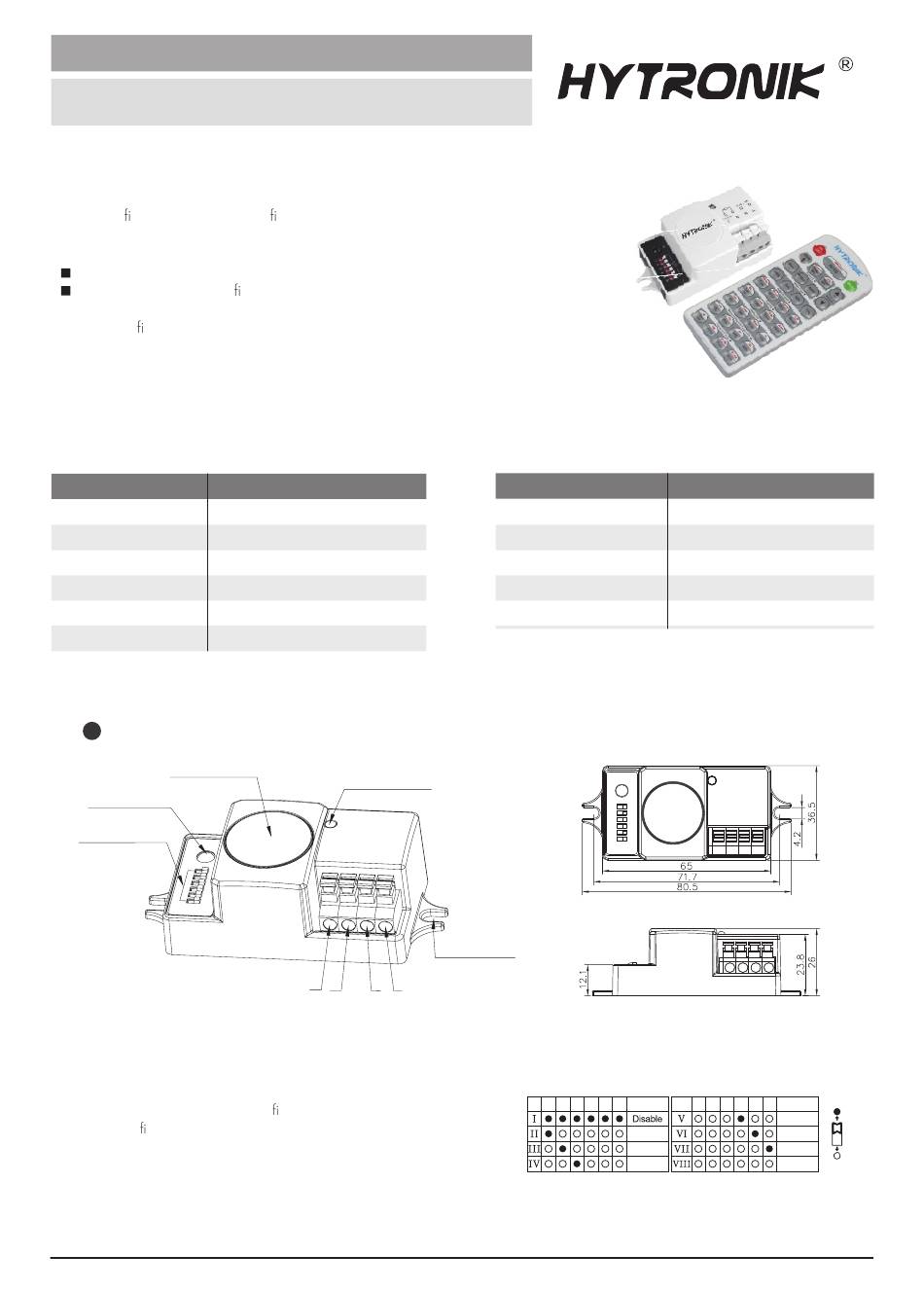

Daylight Sensor
DS05 DS06 DS07
Photocell Advance
TM
Version with Remote Control

Applications

Thanks to the Photocell Advance
inside the xture completely. The xture is effectively controlled by the
daylight sensor, automatic on/off operation based upon daylight.
No drill or hole is needed for accessing the daylight condition
Works from behind the xture cover/diffuser
Use for retro t and new building installations

Technical Data

Model No.
Mains voltage
Stand-by power
Switched power:
Capacitive
Resistive
Switched power
DS05 (On/off control)
1
Antenna module
Infrared receiver
DIP switch setting (Daylight Threshold)
Set the lux level according to the real application environment. Light
keeps off if ambient daylight is suf cient (above the threshold preset).
With insuf cient natural light, light will automatically turn on.
Light will never switch off when daylight threshold is set to disable.
TM
function, these daylight sensor can built
DS05 DS06 DS07
220~240VAC 50Hz
<1W
400VA
800W
80mA
Daylight sensor
L' N
N
L
Model No.
Daylight threshold
Operation temperature
Case temperature (Max.)
IP rating
Warming-up
Installation hole
1 2 3 4 5 6
Edition: 26 Feb. 2020
DS05 DS06 DS07
2 ~ 500 lux, disabled
Ta: -20
O
C ~ +60
O
Tc: +80
O
C
IP20
20s
1 2 3 4 5 6
50 Lux
2 Lux
100 Lux
10 Lux
300 Lux
30 Lux
500 Lux
Ver. A0
Page 1/4
C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS05 and is the answer not in the manual?

Questions and answers

Related Manuals for Hytronik DS05

Summary of Contents for Hytronik DS05

  • Page 1 Daylight Sensor DS05 DS06 DS07 Photocell Advance Version with Remote Control Applications Thanks to the Photocell Advance function, these daylight sensor can built inside the xture completely. The xture is effectively controlled by the daylight sensor, automatic on/off operation based upon daylight.
  • Page 2 Function It’s well known that LED lights have a totally different spectrum to natural light. Hytronik uses this principle and comes up with special photocell and sophisticated software algorithm to measure and differentiate natural light from LED light from behind the xture cover, so that this photocell can ignore internal LED light and only respond to the natural light outside.
  • Page 3 Note: if end-user do not want this manual override function, just leave the “push” terminal unconnected to any wire. Loop-in and Loop-out Terminal (DS05, DS06) Double L N terminal makes it easy for wire loop-in and loop-out, and saves the cost of terminal block and assembly time.
  • Page 4 Settings (Remote Control HRC-11) Permanent ON/OFF function Press button “ON/OFF” to select permanent ON or permanent OFF mode. * Press button “AUTO”, “RESET” to quit this mode. The mode will change to AUTO Mode after power failure. AUTO/SEMI-AUTO mode Press button “AUTO” to initiate automatic mode. The sensor starts working and all settings remain as before the light is switched ON/OFF.
  • Page 5 Additional Information / Documents 1. For full explanation of Hytronik Photocell AdvanceTM technology, please kindly refer to www.hytronik.com/download ->knowledge ->Introduction of Photocell Advance 2. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy Subject to change without notice.
