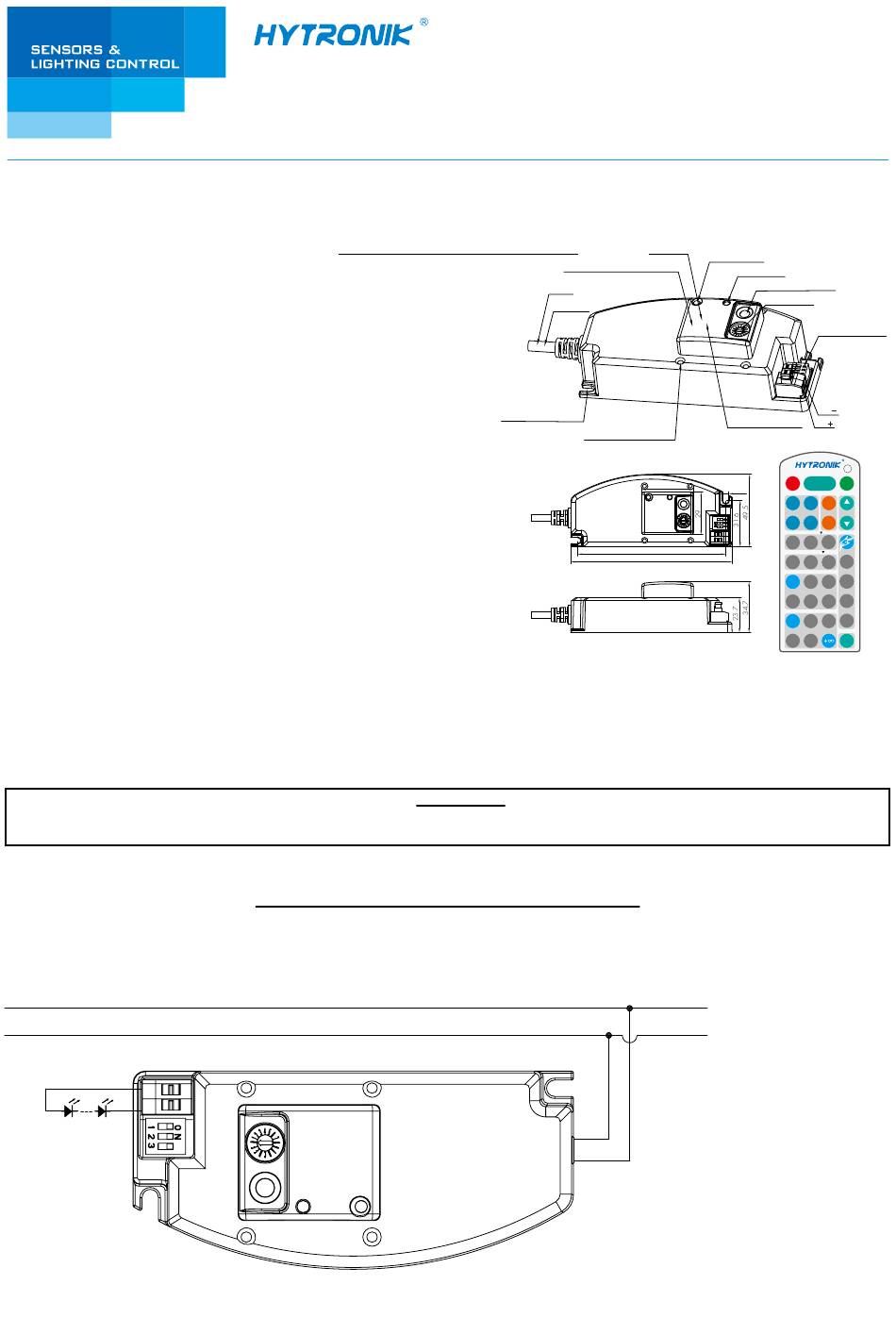

Hytronik HEC7028 Instruction Manual

PRODUCT TYPE:
OPERATING VOLTAGE:
HF SYSTEM:
TRANSMISSION POWER:
DETECTION ANGLE:
DETECTION RANGE:
TIME SETTING:
DAYLIGHT SENSOR:
STAND-BY PERIOD:
STAND-BY DIMMING LEVEL: 10% ~30%
MOUNTING:
INSTALLATION HEIGHT:
WORKING TEMP.:
This is a smart integration of microwave motion sensor and multiple
current selection LED driver, which gives pre-selected constant current
to drive the LEDs to work based upon movement detection. Designed
in the software and thanks to our worldwide patented circuit, the built-in
daylight sensor is prior to motion sensor so as to achieve utmost energy saving purpose.
Note: the high-frequency output of this sensor is <0.2mW; approximately just 1‰ of the transmission power of a mobile telephone or
the output of a microwave oven.
PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION AND RETAIN THIS LEAFLET IN A KNOWN

1.1 Ensure that the electricity supply is switched off before installing or servicing this product.

1.2 Wiring diagram

HYTRONIK INDUSTRIAL LIMITED
Room D, 10/f, Tower A, Billion Center, 1 wang Kwong Road,
Kowloon Bay, Kowloon, Hongkong
T: 00852-35197525
E: info@hytronik.com
Instruction Manual for Integrated SensorDIM LED Driver
Daylight Monitoring Version, Model No.:HEC7028

Technical Specifications

Integrated sensorDIM LED driver
220-240VAC
5.8GHz CW radar
<0.2mW
°
°
30 ~150
Max. 8 meters in diameter, adjustable
2s, 30s~30min.
2~50Lux; disable
0s, 10s ~ +∞
Indoors, ceiling&wall mounted
≤5M
-20~+50℃
AND SAFE PLACE FOR FUTURE REFERENCE.

SECTION 1 INSTALLATION AND WIRING

+
LED
LED -
F: 00852-30116936
50/60Hz
Installation hole (4.1mm)
IMPORTANT
CHINA FACTORY
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
Tel:86-752-2772020 F:86-752-2777877
E: info@hytronik.com W:www.hytronik.com
Buzzer
Daylight sensor
Cut-out size (L x D: 36 x 29.5mm)
L (Blue)
N (Brown)
Installation hole
(screw D x L: 3 x 10mm)
35.5
101.1
110
HEC7028
L
N
L
N
LED indication
Infrared remote receiver
Rotary switch
LED current selection
LED
Sensor antenna
LED
ON/
Auto Mode
Reset
OFF
4.1
Power
SC1 SC2
100% +
Scene mode
Dim
-
SC3 SC4 Power
80%
Detection range
100% 50% 10%
Stand-by dimming level Daylight Sensor
10% 20% 30% 2Lux
Test
30s 1min 5min 10Lux
2s
Hold-time
5min
10min 30min 50Lux
Lux
0s 10s 1min
Disable
Stand-by period
10min 30min M/A
HRC-05
