Hytronik DS05 Installation And Instruction Manual

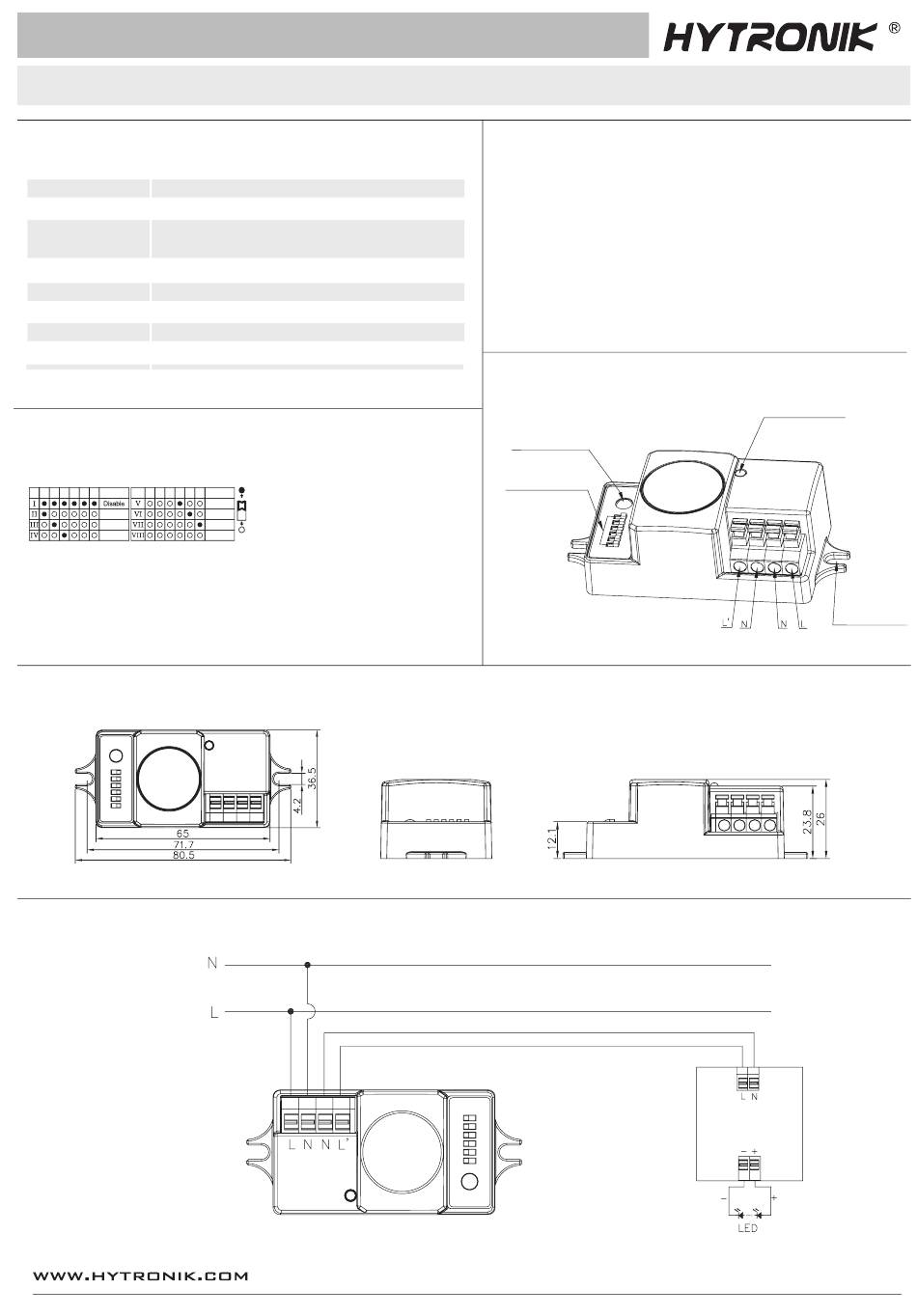

Installation and Instruction Manual
Technical Specifications
Product type Daylight Sensor
Operating voltage 220-240VAC 50Hz
Rated load Max. 800W (Resistive)
Max. 400W (Capacitive)
Power consumption < 0.5W
Daylight threshold 2Lux, 10Lux, 30Lux, 50Lux, 100Lux, 300Lux, 500Lux, Disable
Warmming up time 20s
º
Operating temperature -20 C ~ +60
IP rating IP20

Settings

Daylight Threshold
1 2 3 4 5 6 1 2 3 4 5 6
2 Lux
10 Lux
30 Lux
Set the lux level according to the real application environment. Light keeps off if ambient daylight is
sufficient (above the threshold preset). With insufficient natural light, light will automatically turn on.
Light will never switch off when daylight threshold is set to disable.
Dimensions (mm)

Wiring Diagram

220 - 240VAC
All manuals and user guides at all-guides.com

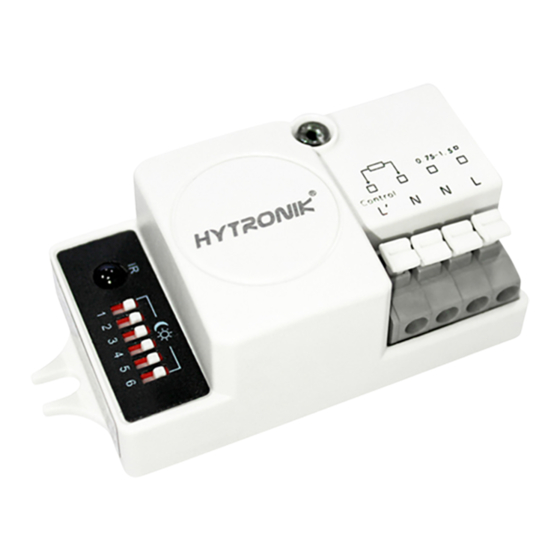

Fixture Built-in Daylight Sensor DS05
º
C
50 Lux
100 Lux
300 Lux
500 Lux
DS05

Functions

1. Lux Off Function
The built-in daylight sensor can measure ambient natural light. It will switch off the fixture in 5minutes
automatically, whenever artificial light is not required (natural light lux level exceeds daylight threshold).
Note: if the daylight threshold is preset at "disable", the fixture will never switch off even when natural
light is sufficient.
2. Loop-in and loop-out
Double L N terminal makes it easy for wire loop-in and loop-out, saves the cost of terminal block and
assembly time.
Infrared receiver
Daylight threshold
Daylight sensor
Installation hole
LED Driver
DS05-20170623-A1
