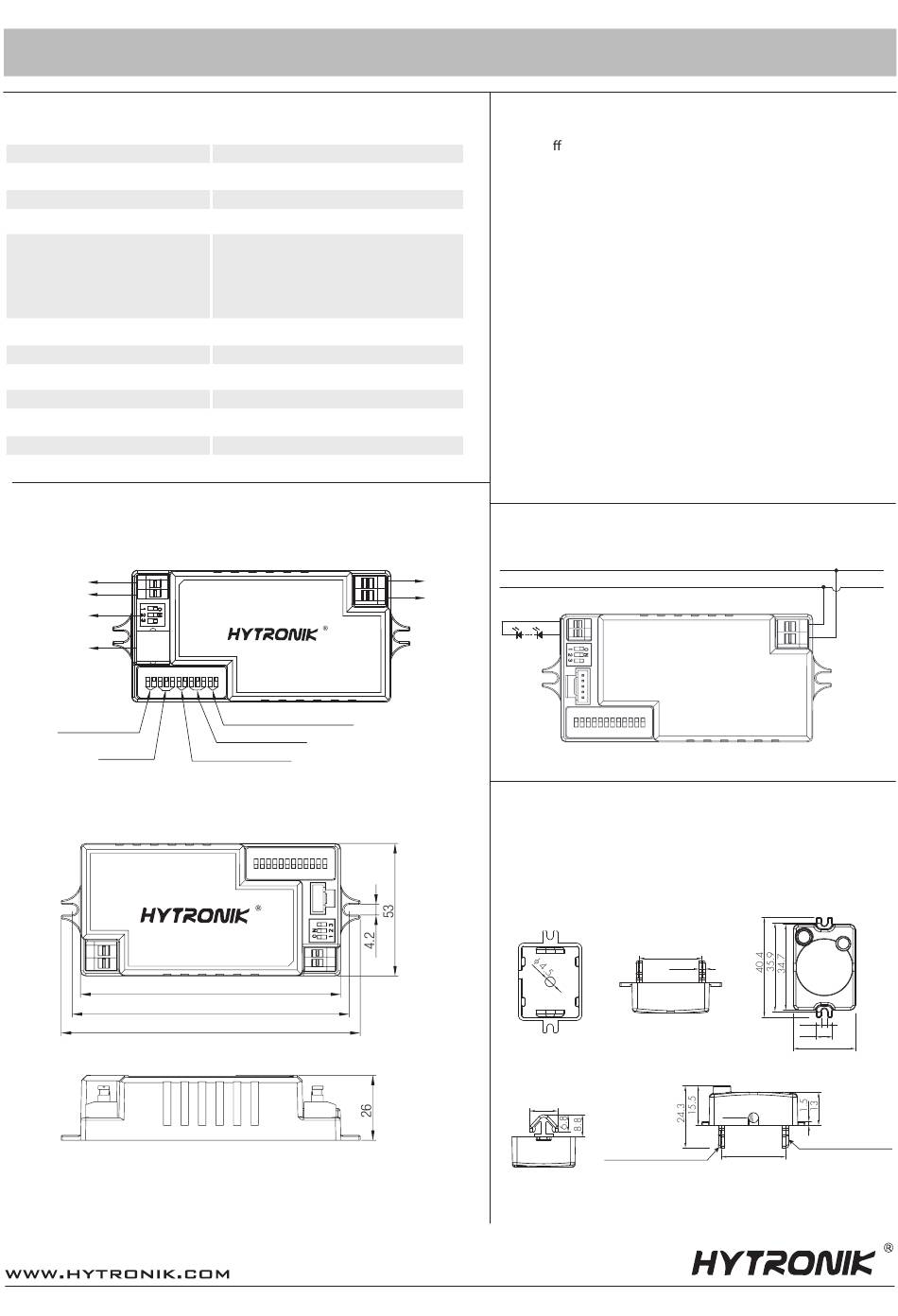

Hytronik HEC9025/I Installation And Instruction Manual

Integrated SensorDIM LED Driver HEC9025/I
Technical Specifications
Product Type:
Operating Voltage:
HF System:
Transmission Power:
Rated output current/voltage/power:
Detection Angle:
Detection Range(DxH):
Time Setting:
Light Control:
Mounting:
Working Temperature:
Dimensions (mm)
LED -
LED +
LED current
selection
Antenna module
connector
Detection area
Hold-time
Installation and Instruction Manual
Tri-level Control Microwave Motion Sensor
220-240VAC 50Hz/60Hz
5.8GHz CW radar
< 0.2mW
350mA/10-43V/15.7W 500mA/10-42V/21W
550mA/10-40V/22W 700mA/10-36V/25.2W
750mA/10-34V/25.5W 900mA/10-28V/25.2W
30~150°
Max. 12 x 6m
10s ~ 30 min.
2~50 lux, disable
Indoors, Ceiling & walling mounted
-20 ~ + 60°C
Stand-by dimming level
Stand-by period
Daylight threshold
104
110.7
119.5
Functions
1. Lux O Function
The built-in daylight sensor can measure ambient natural light and switch off
the fixture automatically whenever artificial light is not required (natural light
lux level exceeds daylight threshold).
2.Tri-level Control (Corridor Function)
Hytronik builds this function inside the motion sensor to achieve tri-level
control, for some areas which require a light change notice before switch-off.
The sensor offers 3 levels of light: 100%-->dimmed light -->off; and 2
periods of selectable waiting time: motion hold-time and stand-by period;
Selectable daylight threshold and freedom of detection area.
3. Zero-cross Relay Operation
Designed in the software, the sensor switches on/off the load right at the
zero-cross point, to ensure the in-rush current is minimised, enabling the
maximum life-time of the relay.
Wiring Diagram
N
L
Sensor antenna
Model SAM5/I
Super-compact sensor antenna, with Hytronik specially designed intelligent
photocell built inside.
11.2
LED -
N
LED +
L
HEC9025/I
25
2.5
φ4
25
Drill hole 9mm x 3mm
Drill hole for cable entry is 10mm x 10mm in
square shape or φ12mm in round shape
HHC9025/I-20180731-A1
L
N
2.5
6.6
25.2
Drill hole 9mm x 3mm
