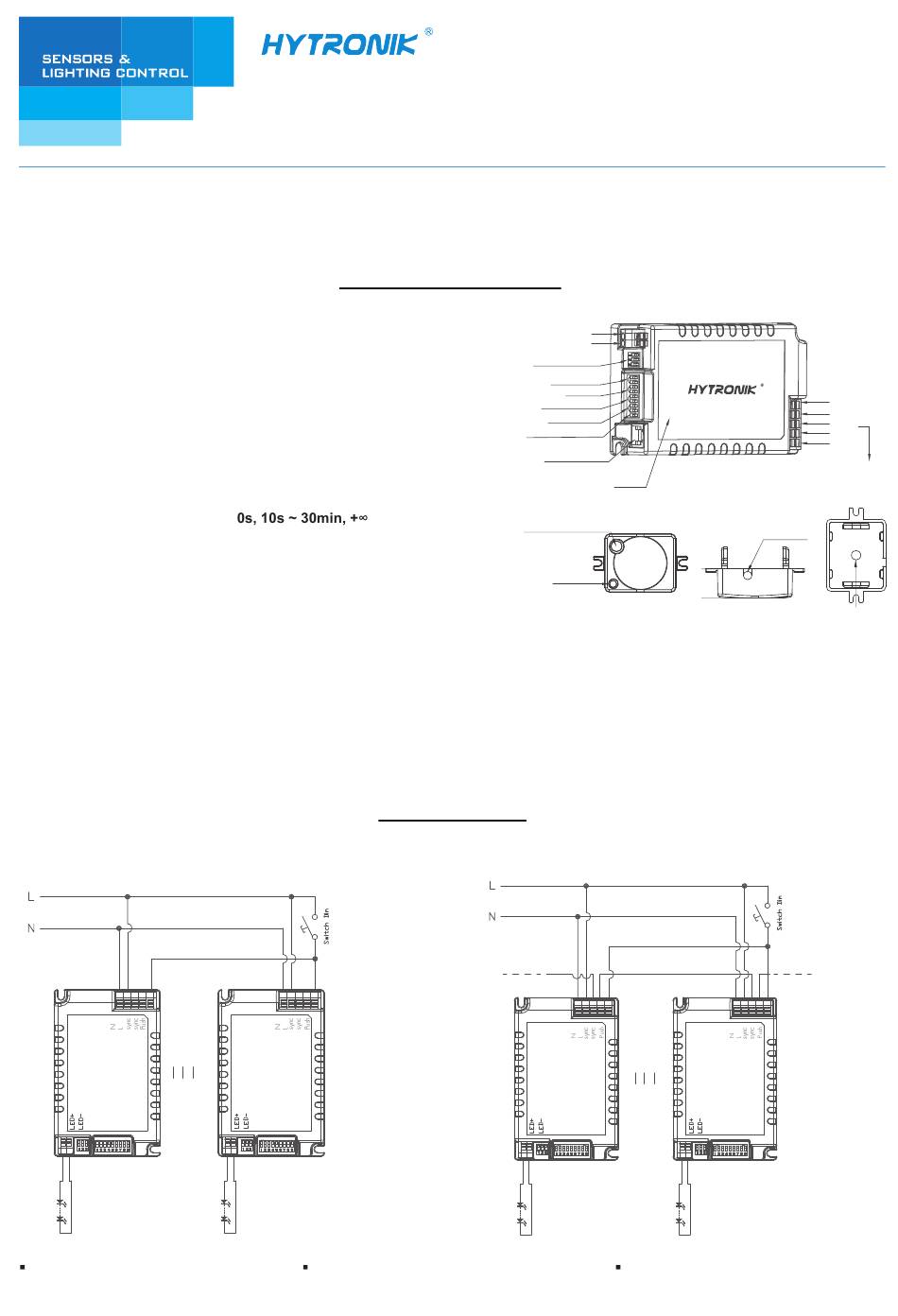

Hytronik HEC7430 Instruction Manual

INSTRUCTION MANUAL FOR INTEGRATED SENSORDIM LED DRIVER
DAYLIGHT MONITORING VERSION, MODEL NO.: HEC7430
PRODUCT TYPE:
OPERATING VOLTAGE:
HF SYSTEM:
TRANSMISSION POWER:
DETECTION ANGLE:
DETECTION RANGE:
TIME SETTING:
DAYLIGHT SENSOR:
STAND-BY PERIOD:
STAND-BY DIMMING LEVEL:
MOUNTING:
WORKING TEMPERATURE:
IP RATING:
This is a smart integration of microwave motion sensor and multiple current selection LED driver.
With the help of detached sensor antenna, it requires very little space on the LED panel and gives pre-selected constant current
to drive the LEDs to work based on movement detection.
Note: the high-frequency output of this sensor is < 0.2mW, approximately just 1‰ of the transmission power of a mobile
telephone.
Wiring Diagram-Push
Stranded wire: 0.5~1.5mm2
HYTRONIK INDUSTRIAL LIMITED
Room D, 10/f, Tower A, Billion Center, 1 wang Kwong Road,
Kowloon Bay, Kowloon, Hongkong
T: 00852-35197525 F: 00852-30116936
E: info@hytronik.com

Technical Specifications

Integrated sensorDIM LED driver
120-277VAC 50Hz/60Hz
5.8GHz CW radar
<0.2mW
30° ~ 150°
Max. 12 x 6m (DxH)
5s ~ 10 min (30s ~ 30min on RC)
5 ~ 50LUX, disable (2 ~ 50Lux, disable on RC)
10% ~ 30%
Indoors, ceiling & wall mounted
-20°C ~ +50°C
IP20

Section 1 Wiring

American wire gauge: 16~20AWG
CHINA FACTORY
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
Tel:86-752-2772020
E: info@hytronik.com
LED +
LED -
LED current selection
Detection area
Hold-time
Daylight threshold
Stand-by period
Stand-by dimming level
Antenna module
connector
Buzzer
Infrared remote receiver
Daylight sensor
Wiring Diagram-Push + Sync
Max.10pcs
Wire stripping length: 9~10mm
F:86-752-2777877
W:www.hytronik.com
N
L
SYNC
SYNC
PUSH
Extended antenna
Main body
Cable side entry
Cable back entry
Sensor antenna
]
