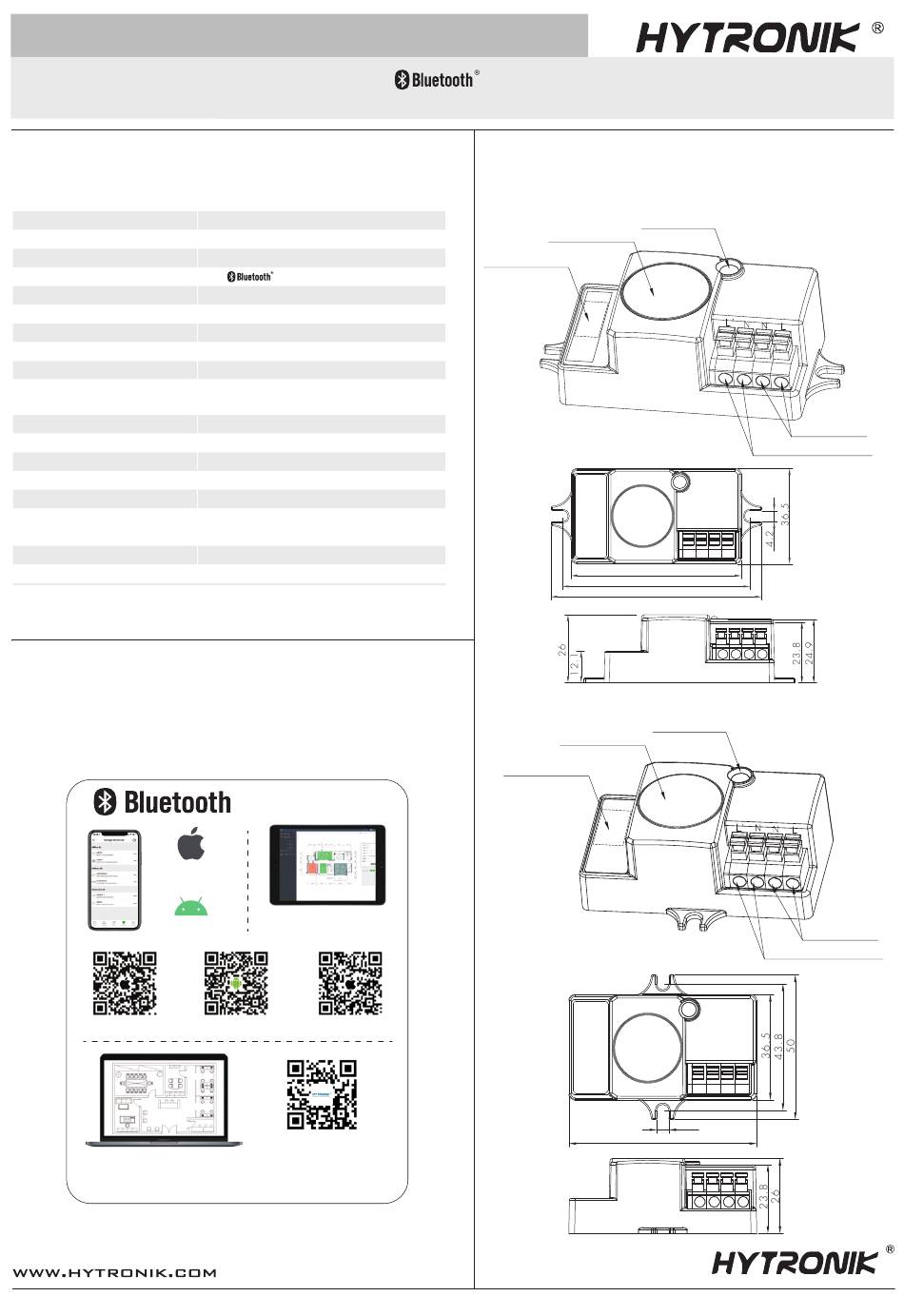

Installation and Instruction Manual

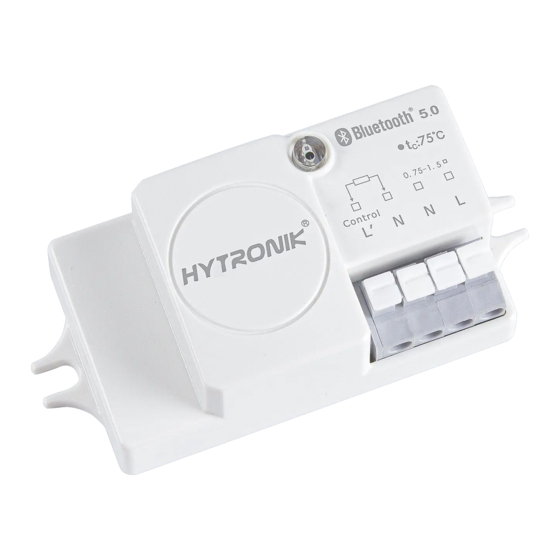

Built-in Microwave Motion Sensor with
ON/OFF CONTROL
1. Technical Specifications
Operation frequency
Transmission power
Range (Typical indoor)
Protocol
Operating voltage
Stand-by power
Load ratings
Warming-up
Sensor principle
Detection range (Max.)*
Detection angle
Operation temperature
Case temperature(MAX.)
IP rating
EMC standard (EMC)
Safety standard (LVD)
RED
Certification

2. Download the App

Free App for set-up and commissioning
iOS 10.0 or later
Android 5.0 or later
for iOS
Web app/platform:
2.4 GHz - 2.483 GHz
4 dBm
10~30m
5.0 SIG Mesh
220~240VAC 50/60Hz
<1W
300VA(capacitive),400W(resistive)
20s
High Frequency (microwave)
Max installation height: 6m
Max detection range：10m (diameter)
30°~150°
Ta:-20 O C~+50 O C
Tc:+75°
IP20
EN55015, EN61000, EN61547
EN60669-1/-2-1
AS/NZS60669-1/-2-1
EN300328, EN301489-1/-17,EN62479,
Semko,CB, CE , EMC, RED, RCM,UKCA
5.0 SIG mesh
Koolmesh Pro for iPad
for Android for iPad
for Web
iot.koolmesh.com
5.0 SIG Mesh

3. Installation

Mechanical Structure & Dimensions
Photocell Advance
Daylight sensor
Antenna module
Bluetooth module
65
71.7
80.5
Antenna module
Bluetooth module
HC005S/BT
T M
Power supply
220-240V out control
Photocell Advance
T M
Daylight sensor
Power supply
220-240V out control
4.2
65
HBHC25-20200302-A0
