BoomPilot
®

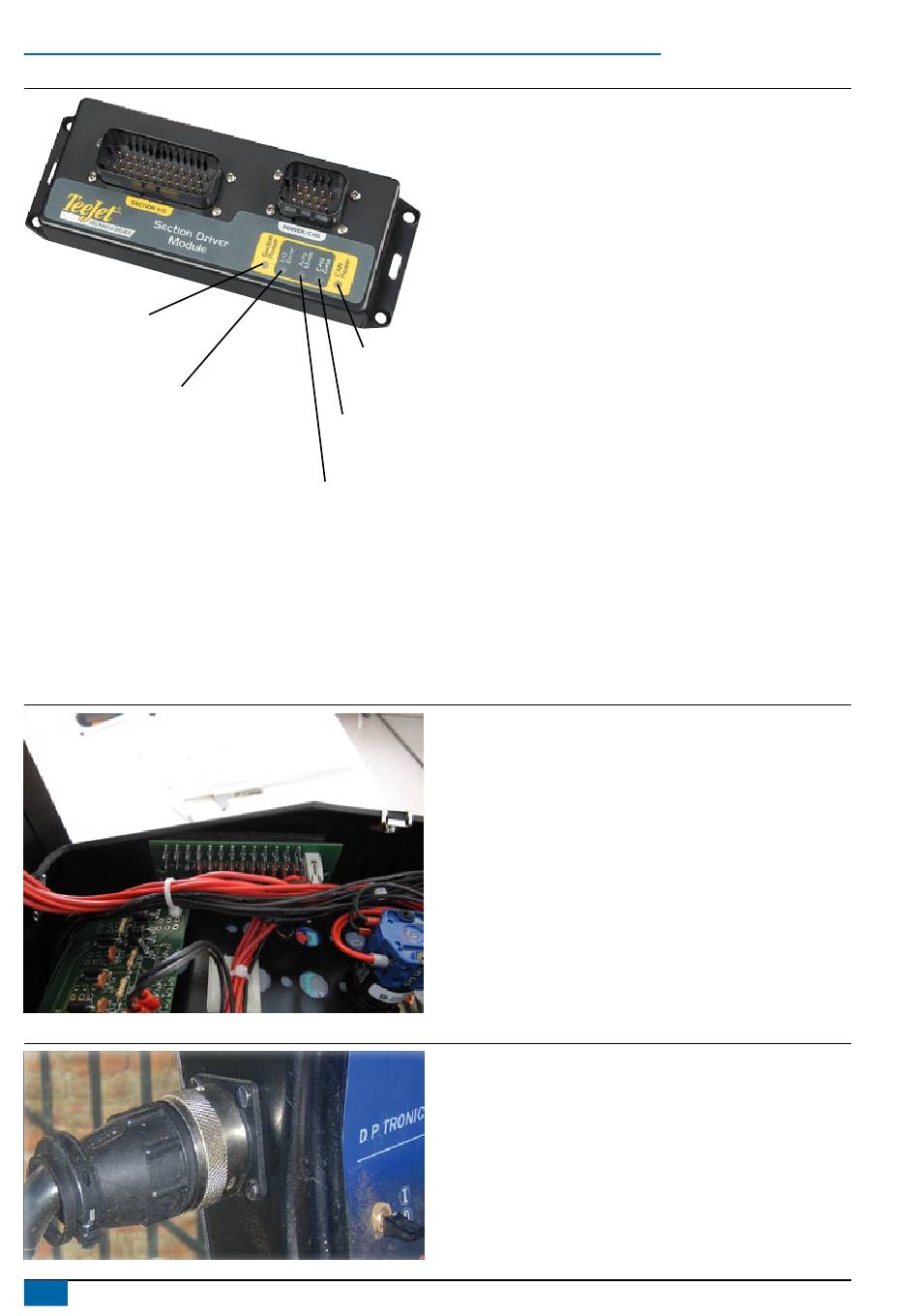

Figure 4: LED description
CAN power
On – CAN power is on
Off – CAN power is off
CAN data
Blinking – receiving console CAN messages
Off – CAN messages stop for > 3 seconds
3. inStaLLing the berthouD teLevoLux kit
To get electrical contact with the Sections and the Master switch in the Berthoud TELEVOLUX Switch Box, it's necessary to install a Berthoud
ABSC Interface (See pos. 7 and 8 on the two System Overview drawings). Before starting the installation, make sure that the power is
disconnected.
Warning: This is a critical operation and must only be conducted of persons with the necessary skills. In case the Berthoud TELELUX
Switch Box is damaged during the installation, it's on the buyers sole risk and therefore the buyer is not entitled to any form for
compensation.
Figure 5: Installing the Circuit board
Figure 6: Installing the Connector
6
www.teejet.com
Section power
On – boom section power is on
Off – boom section power is off
In/out error
Off – boom output is high or on
Blinking – boom output is low or off
Auto mode
On – auto mode is active
Off – manual mode is active
Place the interface in the right part of the box as shown on
the picture.
Drill two ø3.5 mm holes in the plastic housing with a
distance of 95 mm.
It's practical to install the wires on the interface before
installing it (See diagram next page).
Make a hole in the left part of the plastic
housing and install the round connector. The
Hole should be ø25 mm and fixing holes ø3.2
mm.
Connect the Automatic Boom section kit
as show on the system overview drawings.
The kit includes all necessary connectors
to get electrical contact with the Berthoud
TELEVOLUX Switch Box.
