BoomPilot
®

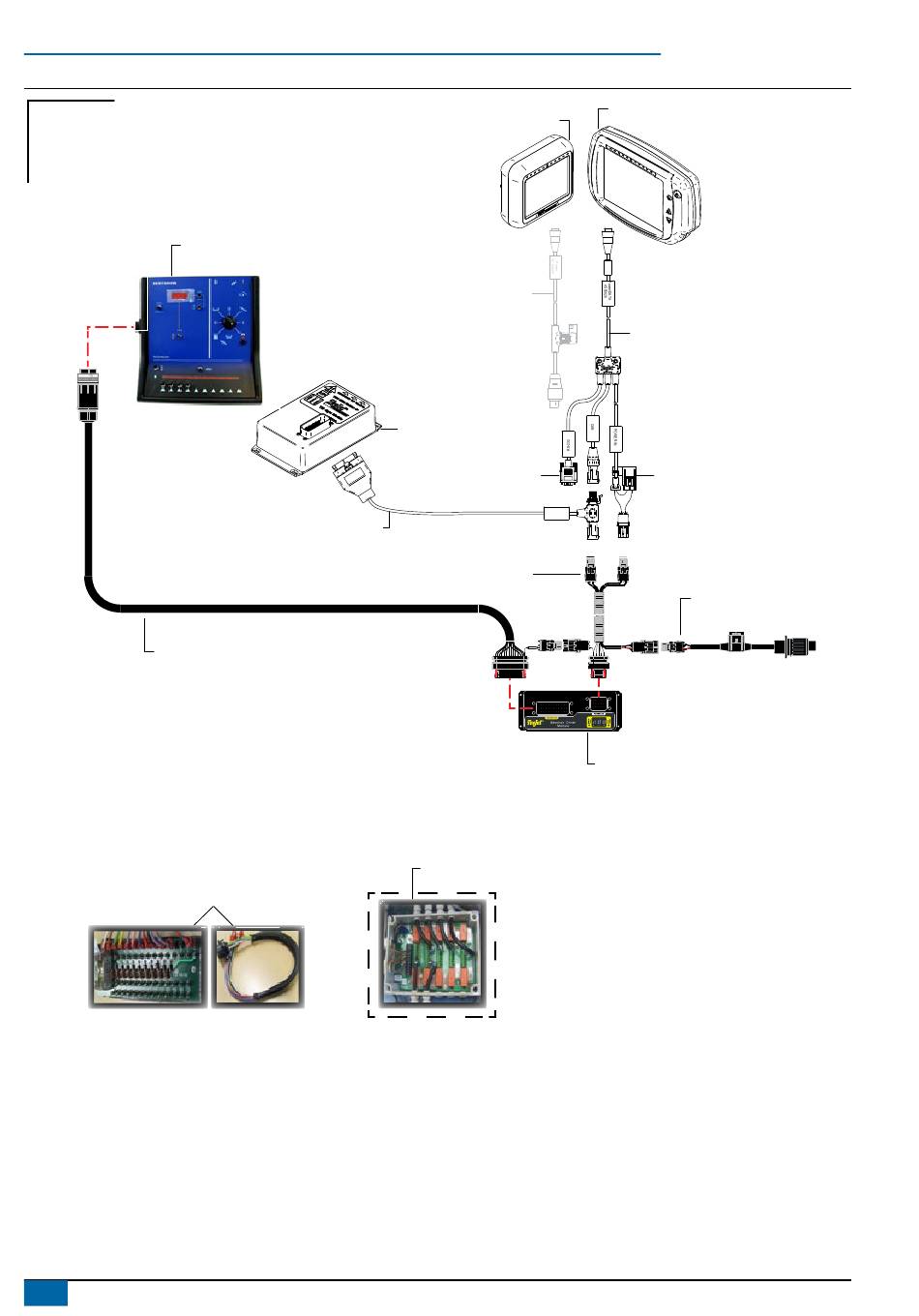

Figure 1: System diagram
Existing system
Not needed
BoomPilot
Optional accessory
Berthoud TELEVOLUX
BoomPilot cable
Maximum 15 sections + master
990-888: new Safi or Pneumatic valves
990-889: old Safi or ARAG valves
902-422
Berthoud ABSC Interface
4
www.teejet.com
Matrix Pro 570
45-05625 Power cable, COBO
(included with Matrix Pro kits)
NOT NEEDED WITH BOOMPILOT
Tilt gyro
module (TGM)
TGM harness
198-413 BoomPilot harness
(CANBUS & Power)
902-356
Relay box
(Only kit no. 990-899 for 'OLD SAFI' & 'ARAG' valves)
Matrix Pro 840
45-05845 3.3 m
Power/CAN/data cable
(included with FieldPilot
and BoomPilot kits)
to RS-232 10A fuse
CAN
A B B A
Section Power
78-05072
BoomPilot Section Driver (SDM)
(15 sections)
45-05648
Power cable with
3 position COBO connector
