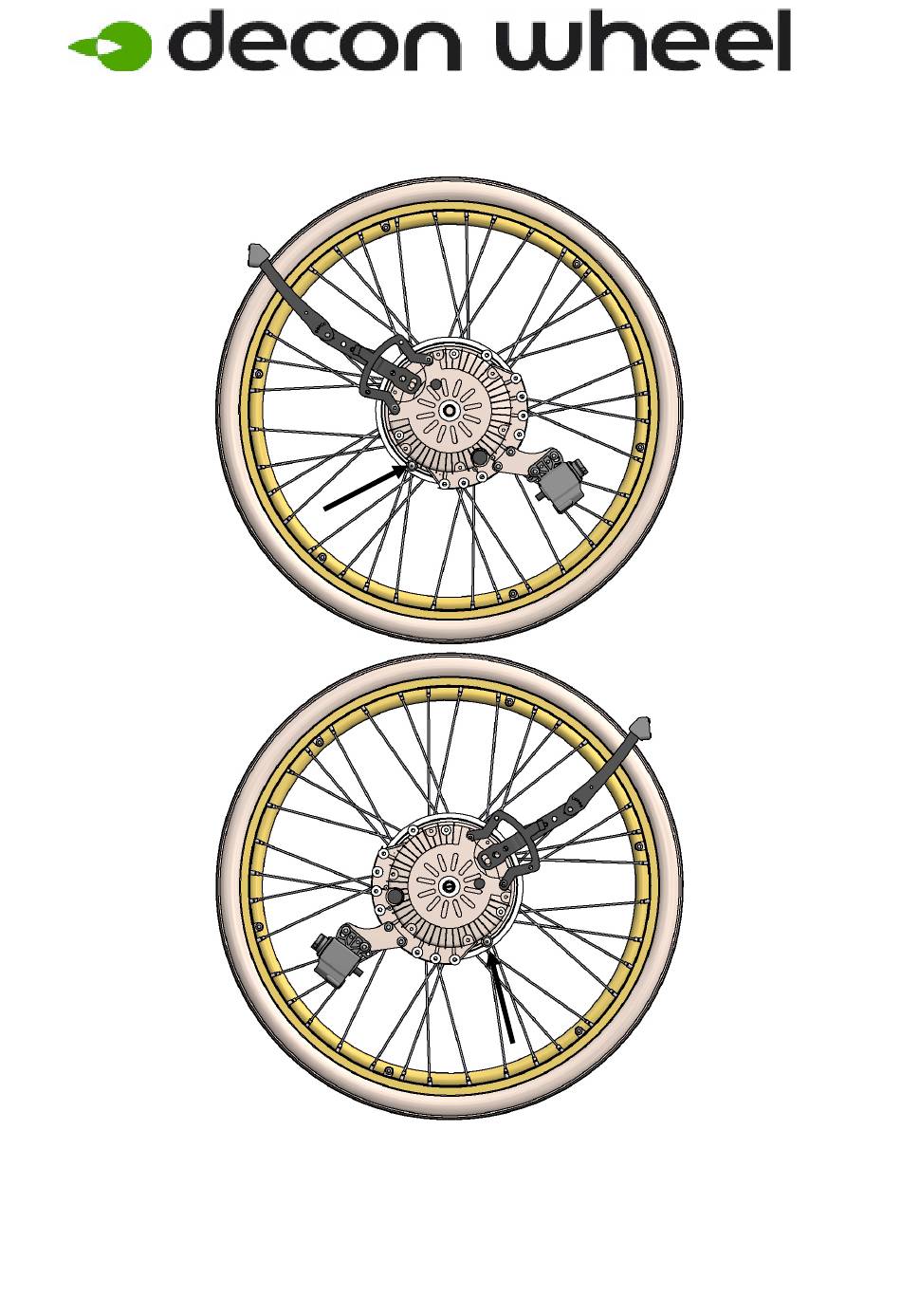

- Page 1 Assembly instructions for Action 5 with e-Drive MED3183 1. Remove wheels on both sides. 2. Check the correct placement for the stop pin and remove Battery Box and anti-tip devices. 2020-01-07...
- Page 2 3. Assembly the plate (right side) according to picture. Parts pair mountingset: ITEM PART NUMBER DESCRIPTION 405239 Nordlock Washer M16 XSM8ML Nut Self-Locking M8 XSM16M Nut M16 Low 100 400 007 Spacer HW069 Sleeve 100 400 001 Spacer 100 400 005 Spacer XSM8BR Washer Plain M8...
- Page 3 Assembly of the joystick Assemble the joystick on the right side, see the pictures above. Item No. Part Number Description XOC-46295-00 Sheet Metal Bracket XSM6X16 Screw - Round - M6 x 16 XSM6ML Locknut M6 XOC-48160-B0 Upper holder assembly 2 MED1500 Bracket XSM6BR...
- Page 4 Item No. Part Number Description XSM6TG Washer Xklamma3 Clamp XSM6X20 Screw M6 x 20 XSM6BR Plain Washer 6,4 MED1200 Attendant control (Not included) Assembly of the joystick as an attendant control (both sides) MED1436 If the Joystick is placed on the Left side turn it around to the other...
- Page 5 Brake adjustment 7. Move the spacer to the outside and adjust parking brake. 2020-01-07...
