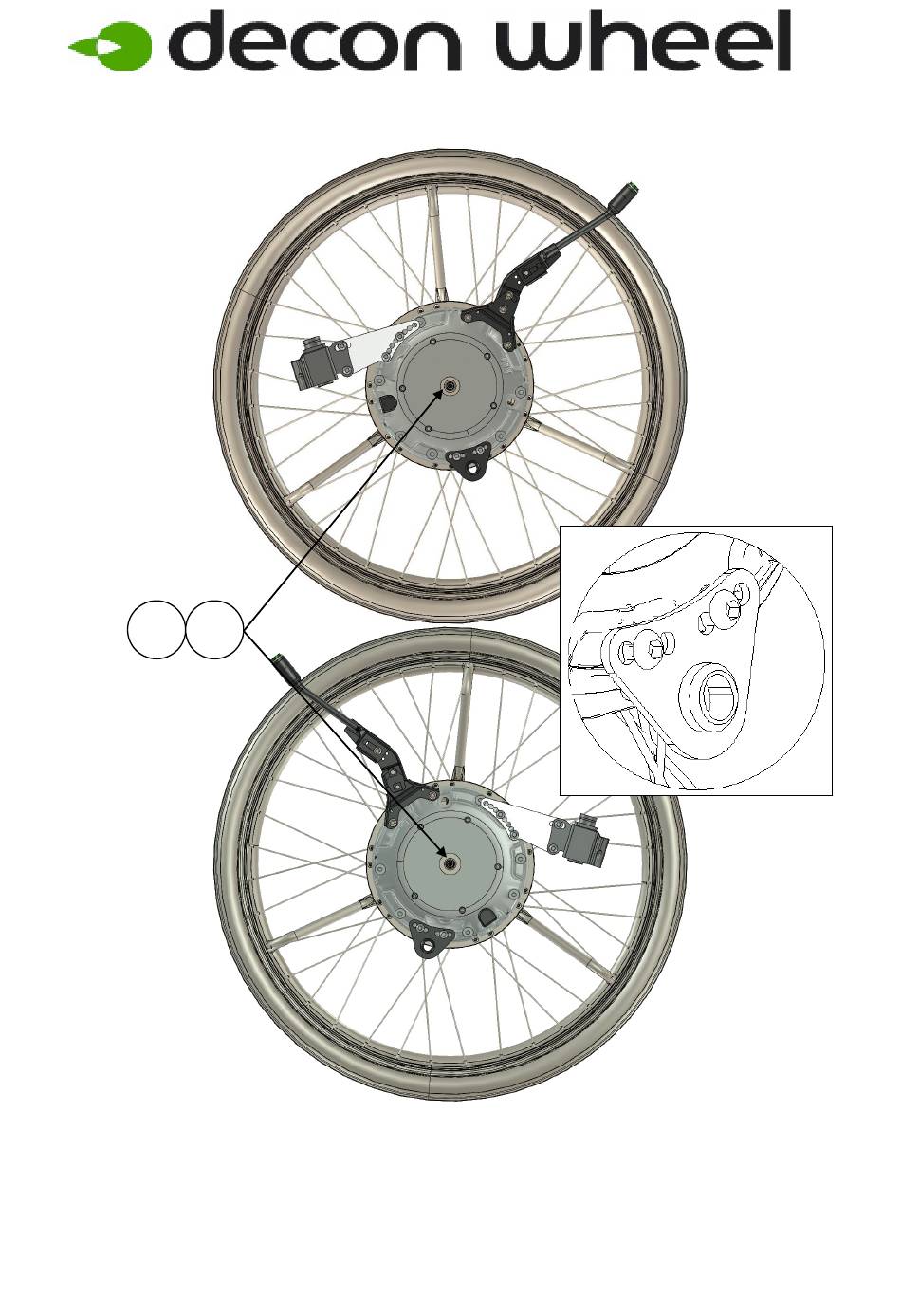

- Page 1 Assembly instructions for G5 Modulair MEM6123 and MEM6124 1. Remove wheels and brakes. 2. Check the correct placement for the eMove, and that it is axle Ø12,0 x 51 with Part Number: XOE-2530E-BO and Spacer with Part Number: XOE-25383-00. 2021-02-01...
- Page 2 3. Assembly the plates according to pictures. Parts for right side mounting: Item No. Part Number Description XSM16M Nut M16X1 Low XSM8BR Plain Washer M8 XSM8X45 Screw M8x45 XSM8ML Locknut M8 405239 Nordlock Washer 100 400 008 Spacer 100 400 009 Spacer 100 400 001 Spacer...
- Page 3 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Åtdragningsmoment / Tightening Gänga / Thread torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Åtdragningsmoment / Tightening Gänga / Thread torque M16x1 30 Nm...
