BoomPilot
®

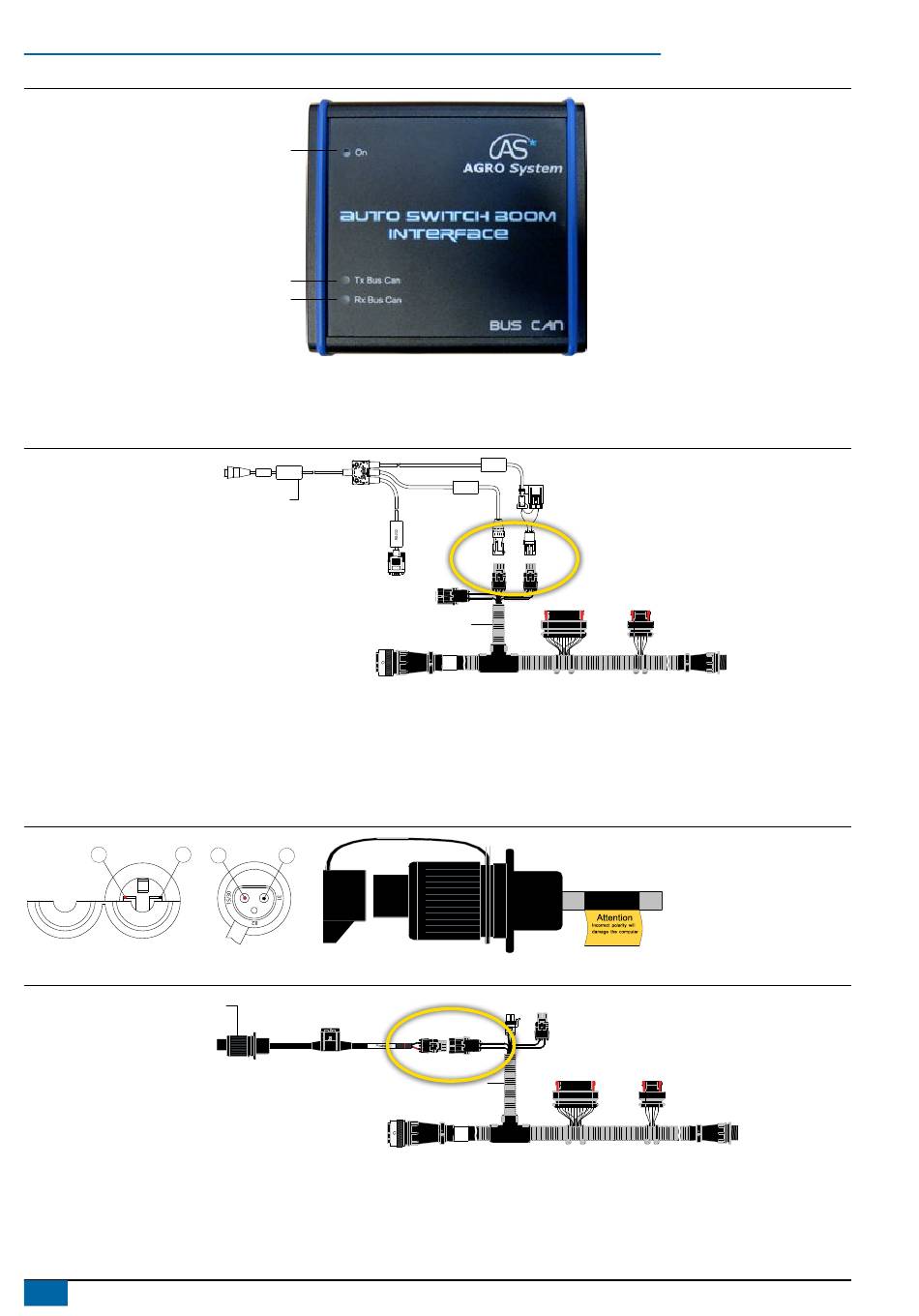

Figure 6: LED description
On – CAN power is on
Off – CAN power is off
Blinking – transmitting CAN messages
Blinking – Receiving CAN messages
5.

connect power/can/Data cabLe to booMpiLot harneSS

Connect Power/CAN/data cable
Figure 7: Connect power/CAN/data cable to BoomPilot harness
B
Power/CAN/Data Cable
6.

connecting to power

COBO Cable

Connect Power cable to BoomPilot harness
(D)
Warning: When connecting the system to 12V power it's very important that the polarity is correct, if not the system will be damaged.
Figure 8: COBO Cable
1 2
-
+
Figure 9: Connect power cable to BoomPilot harness
d
Cable, power

Battery Cable (Optional)

If a power connector (Socket) isn't available in the tractor cabin, a optional battery cable can be used (PN 96ET14).
6
www.teejet.com
On
Tx Bus Can
Rx Bus Can
to BoomPilot harness
(B) (C).
Power/DATA
45-05626
C
BoomPilot harness
(C).
1 2
C
POWER IN
CAN
A B B A
xxx-xxx
xxyyxx
B A
BoomPilot harness
xxx-xxx
xxyyxx
