BoomPilot
®

PRinCiPle of oPeRation

The BoomPilot system controls the sections valves according to the GPS position. The GPS makes it possible to avoid overlaps or skips.
The Section Driver Module (SDM) is designed for switching active high when spraying. This means that a 12V signal is issued to control the
corresponding section valve.
The SDM is connected in parallel with the controller section switches.
The BoomPilot controls the section valves in automatic mode, and the controller section switches should be set to off unless the operator
wants to override the auto mode and thus force spraying.
The BoomPilot monitors the controller section switches that controls the valves in manual mode. The the Master switch can be used both in
automatic mode as well as in manual mode.

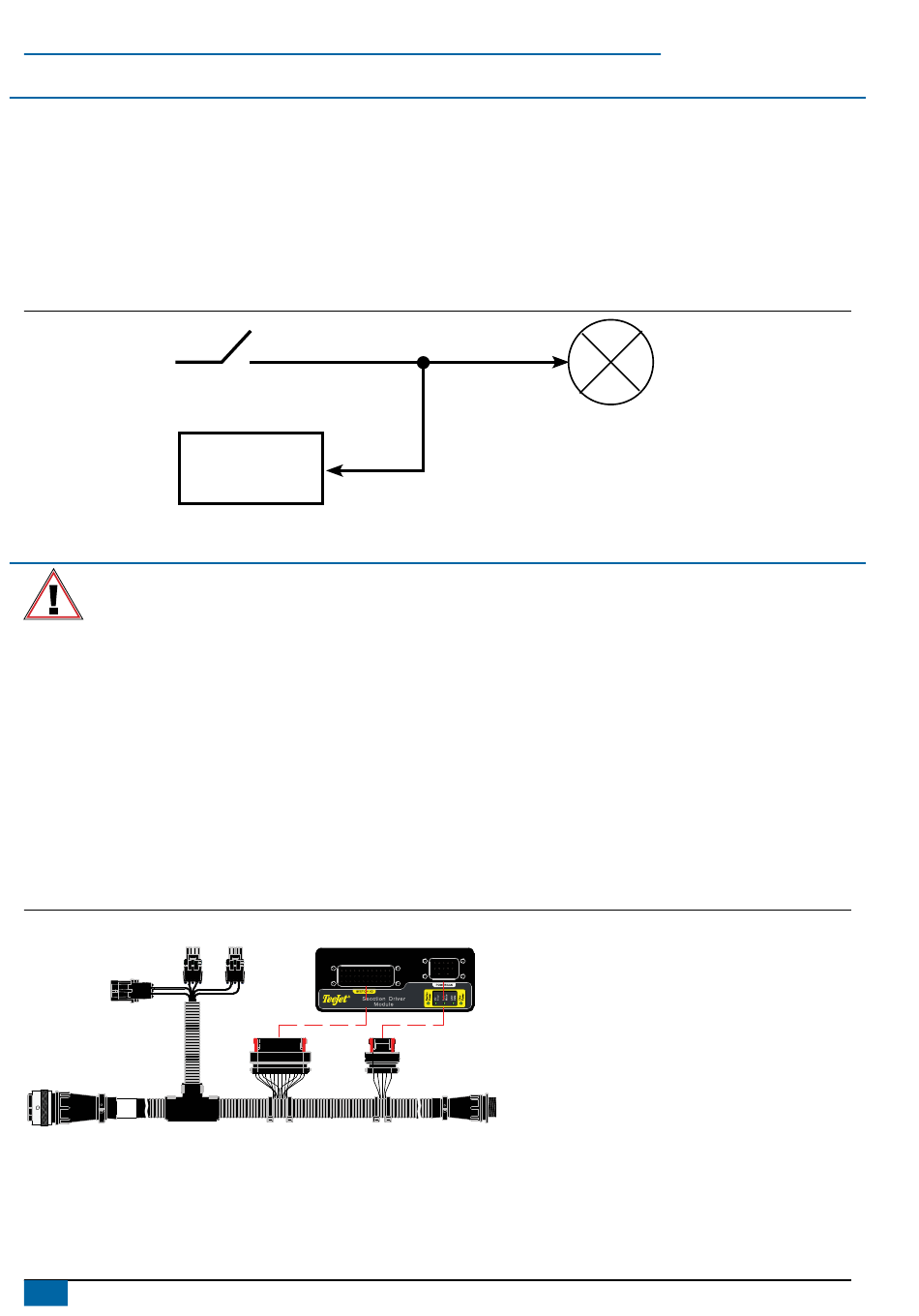

Figure 2: Principle of operation
Controller Section Switch

installation

If there are questions concerning the installation of the BoomPilot system on this vehicle, or due to the changes in component
specifications the parts supplied in the kit are not exactly as presented in this document, please contact your dealer or TeeJet
Customer service representative for clarification before installation. TeeJet Technologies is not responsible for misuse or incorrect
installation of the system.
NOTE: All references to left and right are stated as if the user is seated in the driver's seat.
NOTE: BE VERY CAREFUL TO ABSOLUTELY SECURE ALL CABLES AND HOSES SO THAT THEY DON'T INTERFERE WITH THE MANY
MOVING PARTS OF THE MACHINE!
1.

Locate the connection point for the SDM harneSS

Locate the existing system's switchbox and Blanchard REB3 console. As shown in system diagram, the Optima Module Interface serves as a
link between the Blanchard REB3 Controller and the BoomPilot Section Driver Module (E).
2.
Mount & connect SDM
1. Mount SDM
as shown where LED's can be seen for troubleshooting.
(E)
2. Connect SDM
to BoomPilot Harness (C).
(E)
Figure 3: Connect SDM
A
B
C
xxx-xxx
xxyyxx
4
www.teejet.com
SDM
e
B
A
Valve
