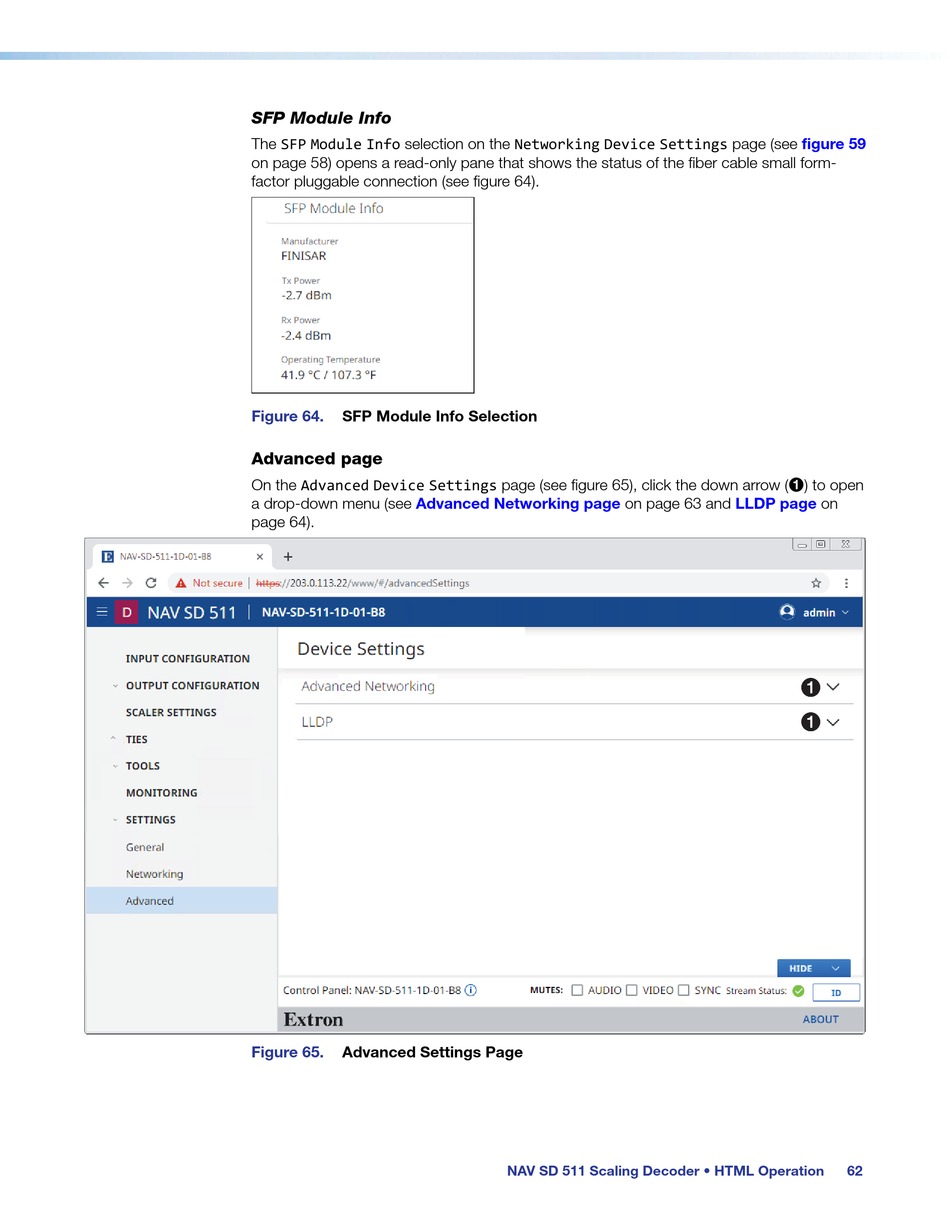

SFP Module Info
The SFP Module Info selection on the Networking Device Settings page (see
on page 58) opens a read-only pane that shows the status of the fiber cable small form-
factor pluggable connection (see figure 64).
Figure 64. SFP Module Info Selection
Advanced page
On the Advanced Device Settings page (see figure 65), click the down arrow (
Advanced Networking page
a drop-down menu (see
page 64).
Figure 65. Advanced Settings Page
on page 63 and
NAV SD 511 Scaling Decoder • HTML Operation
figure 59
) to open
1
LLDP page
on
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
62
