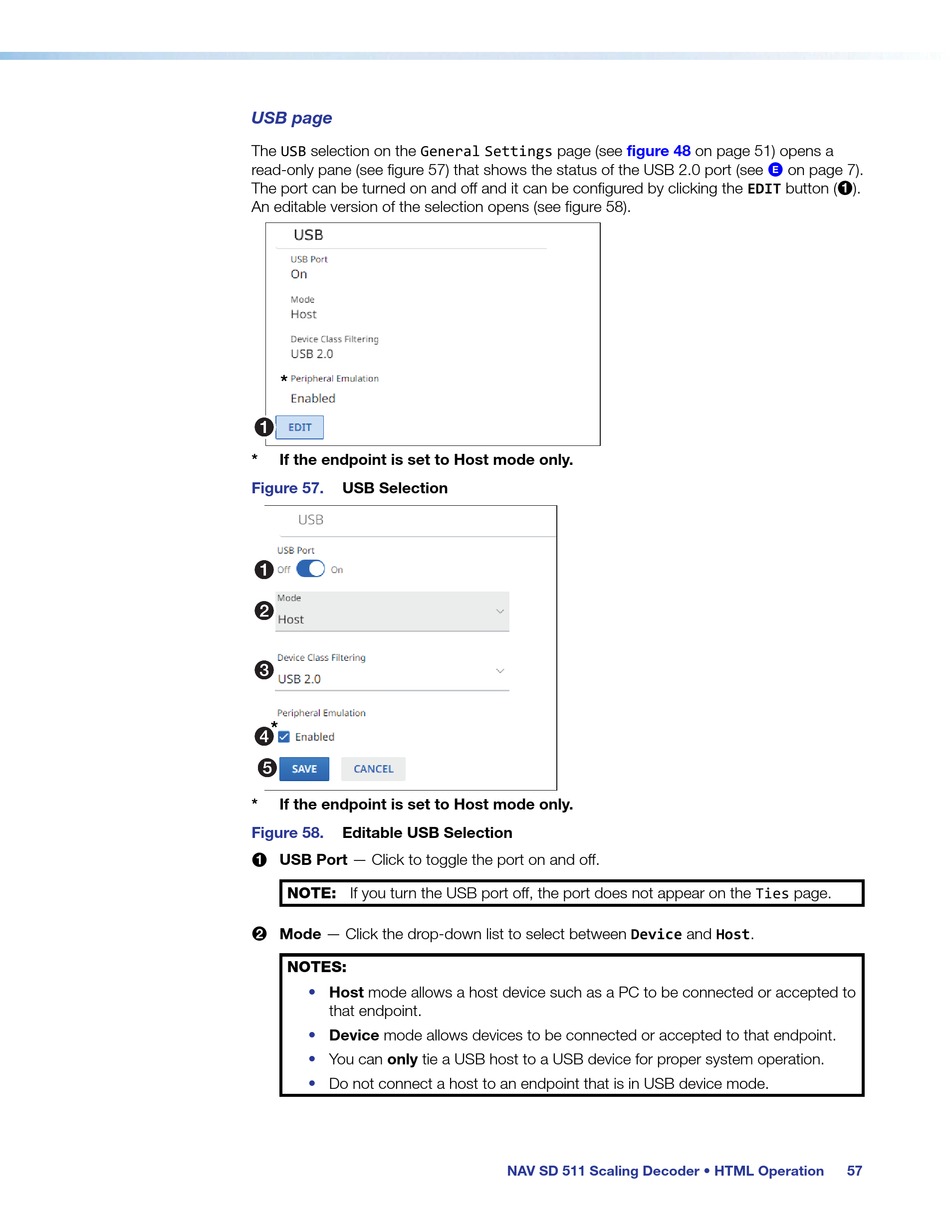

USB page
The USB selection on the General Settings page (see
read-only pane (see figure 57) that shows the status of the USB 2.0 port (see
The port can be turned on and off and it can be configured by clicking the EDIT button (
An editable version of the selection opens (see figure 58).
*
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
* If the endpoint is set to Host mode only.
Figure 57. USB Selection
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
*
4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5
* If the endpoint is set to Host mode only.
Figure 58. Editable USB Selection
USB Port — Click to toggle the port on and off.
1
NOTE: If you turn the USB port off, the port does not appear on the Ties page.
Mode — Click the drop-down list to select between Device and Host.
2
NOTES:
• Host mode allows a host device such as a PC to be connected or accepted to
that endpoint.
• Device mode allows devices to be connected or accepted to that endpoint.
• You can only tie a USB host to a USB device for proper system operation.
• Do not connect a host to an endpoint that is in USB device mode.
figure 48
NAV SD 511 Scaling Decoder • HTML Operation
on page 51) opens a
on page 7).
