This product requires assembly by an adult because of small parts. Care should be
taken in unpacking and assembling this item to keep small parts away from children.
WARNING
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.
ASSEMBLY INSTRUCTIONS

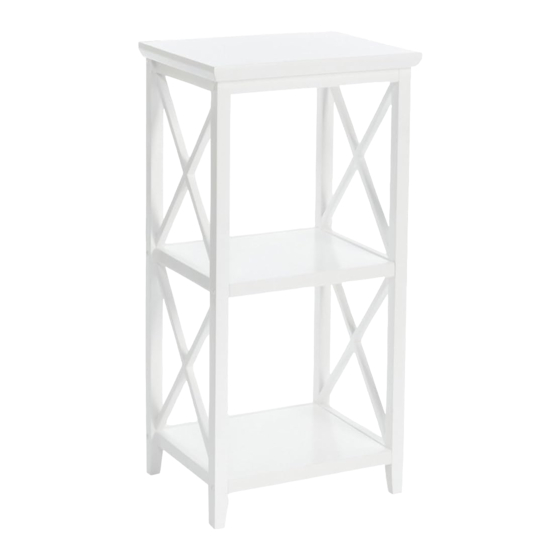

RiverRidge® X-Frame 3-Shelf Storage Tower
ITEM # 06-072/16-022
ITEM # 06-073/16-023
ADULT ASSEMBLY REQUIRED
SEE FULL WARNING ON PAGE 2
WHITE
ESPRESSO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RiverRidge 06-072/16-022
Summary of Contents for RiverRidge 06-072/16-022
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge® X-Frame 3-Shelf Storage Tower ITEM # 06-072/16-022 WHITE ITEM # 06-073/16-023 ESPRESSO ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children.
- Page 2 Send requests for missing or damaged parts replacements by email to: customer.service@ssi-rr.com or call toll free 1-(844)-223-5201 or order parts on line at www.riverridgehome.com THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS.
- Page 3 PARTS LIST PARTS DESCRIPTION 12PCS LONG SCREW 5x45mm 4PCS SCREW 4x35mm 12PCS PLASTIC CAP 2PCS SCREW 4x40mm 2PCS PLASTIC ANCHOR ALLEN WRENCH TOP BOARD 2PCS SIDE FRAME 2PCS SHELF BACK CROSS BAR FRONT CROSS BAR TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF POWER SCREWDRIVER IS NOT RECOMMENDED...
- Page 4 STEP 1 1. Place top board (1) upside down on soft padded surface. 2. Attach back cross bar (4) to top board (1) by inserting 2 wood screws (B) through holes on back cross bar (4) and tighten to top board (1). 3.
- Page 5 STEP 3 Attach top board (1) to pre-assembled side panels (2) by inserting 4 long wood screws (A) through holes on side frame (2) and tighten to back cross bar (4) and front cross bar (5) using Allen wrench (F). When tightening, slightly push screw in to catch inner thread. STEP4 1.
- Page 6 STEP5 1. Use template drawing to drill 2 holes on and insert 2 plastic anchors (E) into holes on wall. 2. Insert 2 wood screws (D) through holes on back cross bar (4) and tighten to plastic anchors (E).
- Page 7 Please make sure your item is secured to the wall, per assembly instructions. Thank you for purchasing this RiverRidge® Home Products item. We hope you enjoy it and consider purchasing other RiverRidge® items. Send requests for missing or damaged parts replacements by email to: customer.service@ssi-rr.com...
