ASSEMBLY INSTRUCTIONS
RiverRidge
®

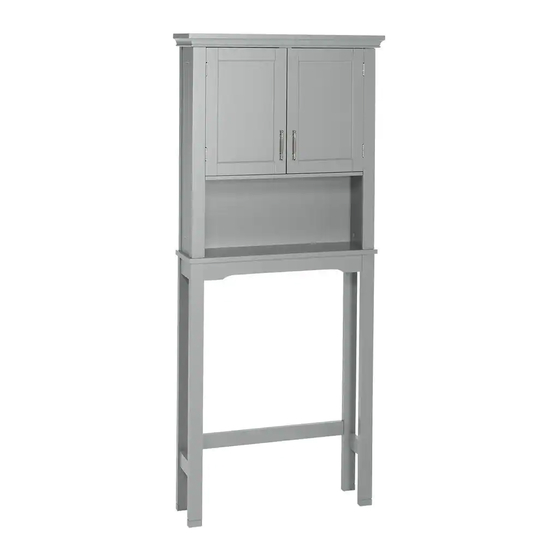

Somerset Spacesaver
ITEM #: 06-040 White
ITEM #: 06-079 Gray
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RiverRidge Somerset Spacesaver
Summary of Contents for RiverRidge Somerset Spacesaver
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge ® Somerset Spacesaver ITEM #: 06-040 White ITEM #: 06-079 Gray ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS OR 75 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 25 POUNDS PER SHELF OR 75 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM WALL AND CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Left Door Right Door Upper Right Side Panel Upper Left Side Panel Shelf Top Board Middle Connection Board Upper Back Board Middle Back Board Lower Back Board Adjustable Shelf Right Support Board Left Support Board 2PCS Lower Section Top Cross Bar Rear Lower Cross Bar Lower Left Side Panel Lower Right Side Panel... - Page 4 PARTS DESCRIPTION 16PCS Wood Dowel 22PCS Cam Bolt 22PCS Cam Lock 18PCS Screw (3x12mm) 4PCS Hinge 2PCS Magnet Plate 24PCS Screw (2.5x12mm) 1 SET Magnet With 2 Screws 4PCS Shelf Holder 4PCS Machine Screw (4x12mm) 2PCS Handle 2PCS Plastic Anchor 2PCS Screw (4x30mm) Plastic Connection Strip...
- Page 5 STEP 1 Attach 1 magnet plate (F) to left door (1) by inserting 1 screw (D) through hole on magnet plate (F), then tighten to left door (1). Attach 1 handle (K) to left door (1) by inserting 2 machine screws (J) through holes on left door (1), then tighten to handle (K).
- Page 6 STEP 3 Attach right support board (13) to upper right side panel (3) by inserting wood dowels (A) into dowel holes and inserting cam bolts (B) into cam lock holes on upper right side panel (3). Insert 3 cam locks (C) into cam lock holes on upper right side panel (3), then rotate clockwise to secure cam bolts (B) in place.
- Page 7 STEP 5 Attach magnet (H) to bottom of top board (7) by inserting 2 screws through holes on magnet (H), then tighten to top board (7). Insert 2 screws (Q) through sliding bracket (P) into holes on top board (7) Screw 4 cam bolts (B) into cam bolt holes on top board (7).
- Page 8 STEP 7 Screw 2 cam bolts (B) into cam bolt holes on middle connection board (8). Insert 8 wooden dowels (A) into holes on lower left side panel (17), lower right side panel (18) and lower section top cross bars (15). Turn over middle connection board (8) and attach to pre-assembled lower left side panel (17), lower right side panel (18) and lower section top cross bars (15) by inserting wood dowels (A) into dowel holes and inserting cam bolts (B) into cam lock holes on the lower...
- Page 9 STEP 8 Screw 4 cam bolts (B) into cam bolt holes on middle connection board (8). STEP 9 Attach upper assembled section to lower assembled section by inserting 4 cam bolts (B) into cam lock holes on upper left side panel (4) and upper right side panel (3). Insert 4 cam locks (C) into cam lock holes on upper left side panel (4) and upper right side panel (3), then rotate clockwise to secure cam bolts (B) in place.
- Page 10 STEP 10 Attach upper back board (9) and middle back board (10) together by sliding into plastic connection strip (N). Attach upper back board (9) and middle back board (10) to cabinet by inserting 8 screws (G) through holes on upper back board (9), and 4 screws (G) through holes on middle back board (10), then tighten to cabinet.
- Page 11 STEP 12 Option #1: Securing to Drywall Position spacesaver against wall in desired location. Using a pencil, make 2 small marks on wall through holes on brackets (P). Move cabinet away from wall and screw 2 plastic anchors (L) into wall on pencil marks. Place cabinet against wall, insert 2 screws (M) through holes on brackets (P), then tighten to plastic anchors (L).
-
Page 12: Care Instructions
ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions. CARE INSTRUCTIONS: Wipe clean with a water dampened cloth. - Page 13 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
