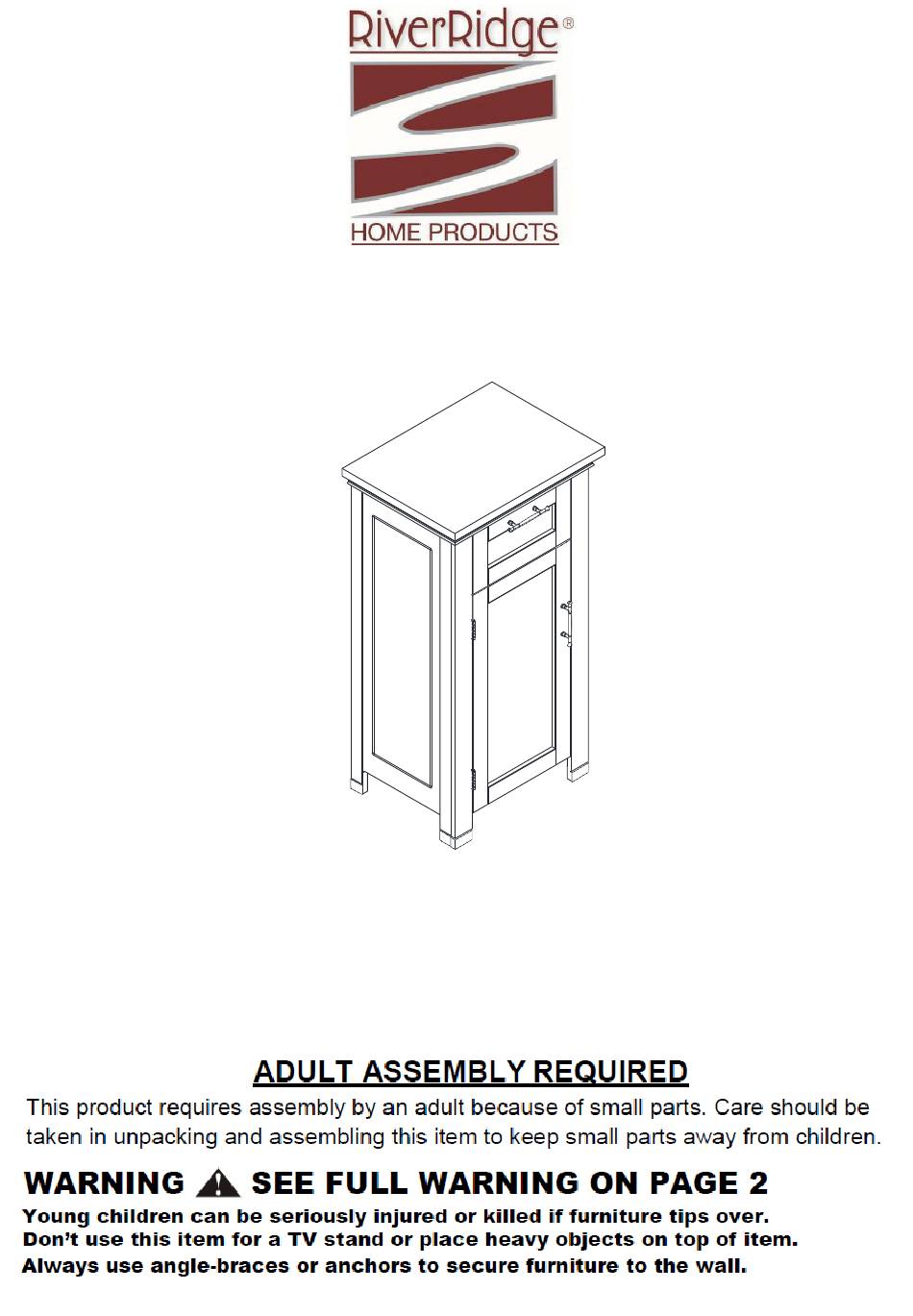

- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge® SOMERSET 1 DOOR FLOOR CABINET ITEM #:06-037 WHITE ITEM #:06-076 GRAY...
- Page 2 Send requests for missing or damaged parts replacements by email to: customer.service@ssi-rr.com or call toll free 1-(844)-223-5201 or order parts on line at www.riverridgehome.com THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS.
-
Page 3: Parts List
PARTS LIST DESCRIPTION PARTS RIGHT SIDE PANEL 1 PC LEFT SIDE PANEL 1 PC CROSS BAR 1 PC BOTTOM BOARD 1 PC TOP BOARD 1 PC BACK BOARD 1 PC DOOR 1 PC DRAWER FRONT 1 PC BOARD DRAWER LEFT SIDE 1 PC PANEL DRAWER RIGHT... - Page 4 PARTS DESCRIPTION 18 PCS WOOD DOWEL 18 PCS CAM BOLT 18 PCS CAM LOCK WOOD SCREW 13 PCS 3X10MM 2 PCS HINGE 1 PC MAGNET PLATE WOOD SCREW 14 PCS 3X12MM MAGNET WITH 2 1 SET SCREWS 4 PCS SHELF HOLDER MACHINE SCREW 4 PCS 4X15MM...
- Page 5 STEP 1 STEP 1 1. Attach drawer left side panel (9) to drawer back board (11) by inserting 2 long wood screws (L) through holes on drawer left side panel (9) and tighten into drawer back board (11). 2. Attach drawer right side panel (10) to drawer back board (11) by inserting 2 long wood screws (L) through holes on drawer right side panel (10) and tighten into drawer back board (11).
- Page 6 STEP 3 STEP 3 1. Attach drawer front board (8) to drawer left side panel (9), drawer right side panel (10) and drawer bottom board (12) by inserting cam bolts (B) and wood dowels (A) into holes on drawer left side panel (9) and drawer right side panel (10) and inserting edge of drawer bottom board (12) into groove on drawer front board (8).
- Page 7 STEP 5 STEP 5 1. Insert 2 wood dowels (A) into dowel holes on left support board (14). 2. Screw 3 cam bolts (B) into pre-threaded holes on left support board (14. 3. Insert 2 wood dowels (A) into dowel holes on right support board (15). 4.Screw 3 cam bolts (B) into pre-threaded holes on right support board (15).
- Page 8 STEP 7 STEP 7 1. Attach left support board (14) to left side panel (2) by inserting cam bolts into cam lock holes and inserting wood dowels into dowel holes on the left side panel (2). 2. Insert 3 cam locks (C) into cam lock holes on left side panel (2) and rotate clockwise to secure cam bolts in place.
- Page 9 STEP 9 STEP 9 1. Attach cross bar (3) to left side panel (2) by inserting wood dowel (A) and cam bolt (B) into holes on cross bar (3) and insert 1 cam lock (C) into cam lock hole on cross bar (3) and rotate clockwise to secure cam bolt (B) in place.
- Page 10 STEP 11 STEP 11 Insert 4 wood dowels (A) into dowel holes on top of left side panel (2) and right side panel (1). Attach top board (5) to left side panel (2) and right side panel (1) by inserting 4 wood dowels (A) into dowel holes on top board (5) and inserting 4 cam bolts (B) into holes on left side panel (2) and right side panel (1).
- Page 11 STEP 13 STEP 13 1.Attach door (7) to left side panel (2) by inserting 6 wood screws (D) through holes on metal hinges (E) and tighten to door (7). STEP 14 STEP 14 1.Insert 4 shelf holders (I) into holes on left side panel (2) and right side panel (1) making sure 4 shelf holders (I) are at same height.
- Page 12 STEP 15 STEP 15 1. Attach drawer to cabinet by inserting drawer slides with wheels into drawer slides in cabinet. 2. Adjust hinges to make door close tight as needed.
- Page 13 STEP 16 STEP 16 1. Attach metal bracket (P) to top board (5) by inserting 1 wood screw (R) through hole on metal bracket (P) and tighten to top board (5). 2. Align position of metal bracket (P) assembled to cabinet to desired position on wall and a drill hole on wall. 4.Insert 1 plastic anchor (N) into hole on wall and attach another metal bracket (P) to anchor (N).
