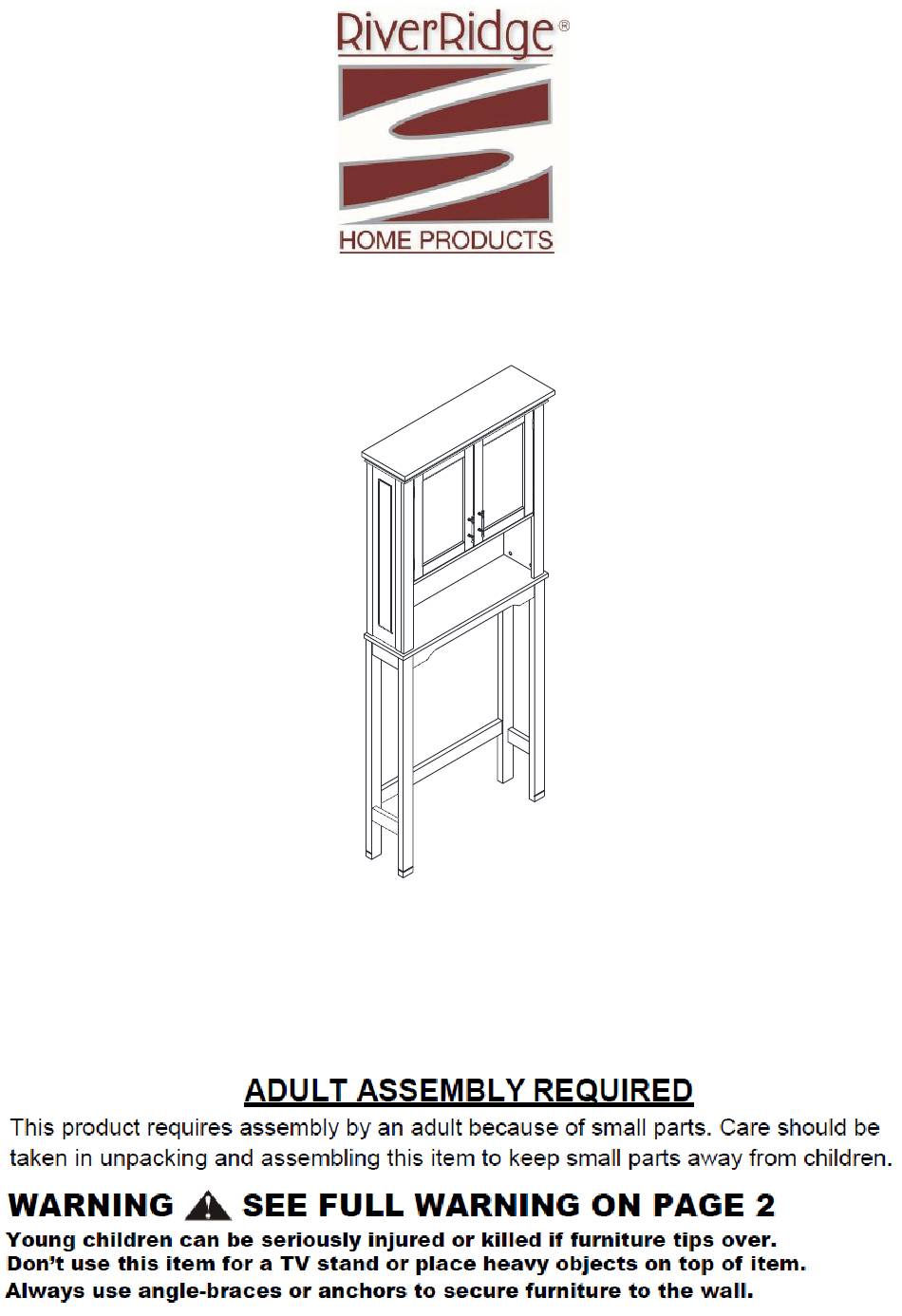

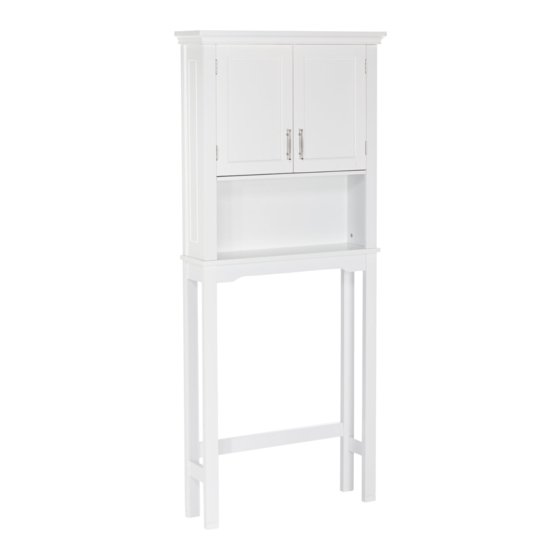

- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge® SOMERSET SPACE SAVER ITEM #:06-040 WHITE ITEM #:06-079 GRAY...
- Page 2 Send requests for missing or damaged parts replacements by email to: customer.service@ssi-rr.com or call toll free 1-(844)-223-5201 or order parts on line at www.riverridgehome.com THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS.
-
Page 3: Parts List
PARTS LIST PARTS DESCRIPTION LEFT DOOR RIGHT DOOR UPPER RIGHT SIDE PANEL UPPER LEFT SIDE PANEL UPPER SECTION CROSS SHELF TOP BOARD MIDDLE CONNECTION BOARD UPPER BACK BOARD MIDDLE BACK BOARD LOWER BACK BOARD ADJUSTABLE SHELF RIGHT SUPPORT BOARD LEFT SUPPORT BOARD LOWER SECTION TOP 2PCS CROSS BAR... - Page 4 PARTS DESCRIPTION 34PCS WOOD DOWEL 16PCS CAM BOLT (SMALL) 16PCS CAM LOCK (SMALL) 8PCS CAM BOLT (LARGE) 8PCS CAM LOCK (LARGE) 26PCS WOOD SCREW 3X10MM 4PCS HINGE 2PCS MAGNET PLATE 20PCS WOOD SCREW 3X12MM 1SET MAGNET WITH 2SCREWS 4PCS SHELF HOLDER 4PCS MACHINE SCREW 4X15MM 2PCS HANDLE...
- Page 5 STEP 1 STEP 1 1. Attach 1 magnet plate (H) to left door (1) by inserting 1 wood screw (F) through hole on magnet plate (H) and tighten to left door (1). 2. Attach 1 handle (M) to left door (1) by inserting 2 machine screws (L) through holes on left door (1) and tighten to handle (M).
- Page 6 STEP 3 STEP 3 1. Attach right support board (13) to upper right side panel (3) by inserting wood dowels (A) into dowel holes and inserting cam bolts (small-B) into cam lock holes on upper right side panel (3). 2. Insert 3 cam locks (small-C) into cam lock holes on upper right side panel (3) and rotate clockwise to secure cam bolts (small-B) in place.
- Page 7 STEP 5 STEP 5 1. Attach magnet (J) to bottom of top board (7) by inserting 2 wood screws through holes on magnet (J) and tighten to top board (7). 2. Screw 4 cam bolts (small-B) into pre-threaded holes on top board (7). 3.
- Page 8 STEP 7 STEP 7 1. Screw 2 cam bolts (large-D) into pre-threaded holes on middle connection board (8). 2. Insert 8 wooden dowels (A) into holes on lower left side panel (17), lower right side panel (18) and lower section top cross bars (15). 3.
- Page 9 STEP 8 STEP 8 Screw 4 cam bolts (small-B) into pre-threaded holes on middle connection board (8). STEP 9 STEP 9 1. Attach upper assembled section to lower assembled section by inserting 4 wood dowels (A) into dowel holes and inserting cam bolts (small-B) into cam lock holes on upper left side panel (4) and upper right side panel (3).
- Page 10 STEP 10 90° STEP 10 1.Attach upper back board (9) and middle back board (10) together by sliding into plastic connection strip (P). 2.Attach upper back board (9) and middle back board (10) to assembled cabinet by inserting 7 wood screws (I) through holes on upper back board (9) and 4 wood screws (I) through holes on middle back board (10), then tighten to cabinet.
- Page 11 STEP 12 STEP 12 1. Place drawing with hole positions on wall in desired position and drill 2 holes. 2. Insert 2 plastic anchor (N) into holes on wall and attach cabinet in place by inserting 2 long screws (O) through holes on upper section cross bar (5) and tighten into plastic anchors (N) in wall.
