ASSEMBLY INSTRUCTIONS
®
RiverRidge

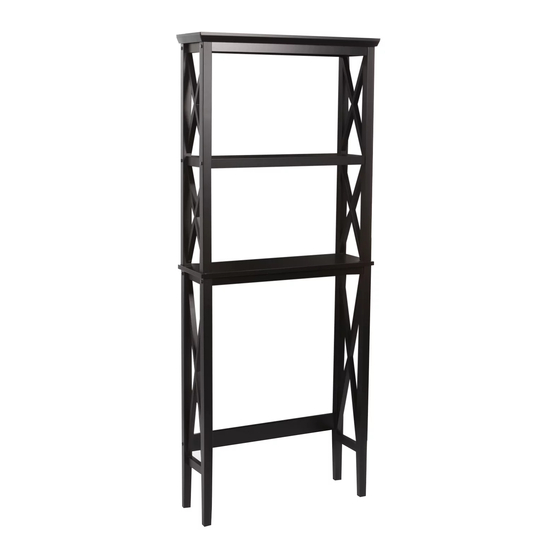

X-Frame Bath Spacesaver
ITEM #: 06-003 White
ITEM #: 06-004 Espresso
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RiverRidge X-Frame Bath Spacesaver
Summary of Contents for RiverRidge X-Frame Bath Spacesaver
- Page 1 ASSEMBLY INSTRUCTIONS ® RiverRidge X-Frame Bath Spacesaver ITEM #: 06-003 White ITEM #: 06-004 Espresso ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS OR 75 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 25 POUNDS PER SHELF OR 75 POUNDS TOTAL WEIGHT, THIS MAY CAUSE DAMAGE TO THE SHELF AND MAY CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board 2PCS Upper Side Frame Bottom Board Shelf Lower Left Side Frame Upper Rear Cross Bar 3PCS Cross Bar Lower Rear Cross Bar Lower Right Side Frame... - Page 4 PARTS LIST PARTS DESCRIPTION 18PCS Screw (5x45mm) 12PCS Screw (4x35mm) 2PCS Plastic Anchor 2PCS Screw (4x60mm) 14PCS Plastic Cap Allen Wrench 4PCS Wood Dowel TOOLS NEEDED FOR ASSEMBLY: PHILIPS SCREWDRIVER (NOT INCLUDED) THE USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE ITEM IF ANY PARTS ARE MISSING OR DAMAGED To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com.
- Page 5 STEP 1 1. Place top board (1) and bottom board (3) upside down on a soft padded surface. 2. Attach upper rear cross bar (6) to top board (1) by inserting 3 screws (B) through holes on upper rear cross bar (6) and tighten to top board (1). 3.
- Page 6 STEP 3 1. Repeat Step 2 to assemble other upper side frame (2). STEP 4 1. Attach bottom board (3) to bottom side of 2 upper side frames (2) by inserting 4 screws (A) through holes on bottom board (3), then tighten to 2 upper side frames (2) with Allen wrench (F).
- Page 7 STEP 5 1. Insert 4 wooden dowels (G) into holes on lower rear cross bar (8). 2. Attach 1 lower left side frame (5) to bottom board (3) and lower rear cross bar (8) by inserting wooden dowels (G) into holes on lower left side frame (5) and inserting 3 screws (A) through holes on lower left side frame (5), then tighten to 2 cross bars (7) on bottom board (3) and lower rear cross bar (8) with Allen wrench (F).
-
Page 8: Care Instructions
STEP 7 Option #1: Securing to Drywall Position shelf against wall in desired location. Using a pencil, make 2 small marks on wall through holes on inside of shelf. Move shelf away from wall and screw 2 plastic anchors (C) into wall on pencil marks. - Page 9 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
