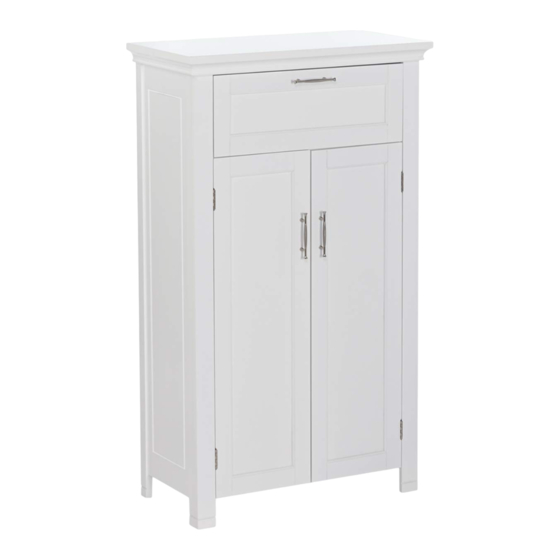

RiverRidge Somerset 06-038 Assembly Instructions Manual

2-door floor cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
RiverRidge
®
Somerset 2-Door Floor Cabinet
ITEM #: 06-038 White
ITEM #: 06-077 Gray
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Somerset 06-038 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverRidge Somerset 06-038

Summary of Contents for RiverRidge Somerset 06-038

  • Page 1 ASSEMBLY INSTRUCTIONS RiverRidge ® Somerset 2-Door Floor Cabinet ITEM #: 06-038 White ITEM #: 06-077 Gray ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF AND 10 POUNDS PER DRAWER OR A TOTAL OF 85 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS AND 10 POUNDS PER DRAWER OR A TOTAL OF 85 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 25 POUNDS PER SHELF AND 10 POUNDS PER DRAWER OR 85 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM WALL AND CAUSE SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION 1 PC Left Side Panel 1 PC Right Side Panel 1 PC Right Support Board 1 PC Cross Bar 1 PC Bottom Board 1 PC Left Support Board 1 PC Top Board 2 PCS Back Board 2 PCS Shelf 1 PC Drawer Front Board...
  • Page 4 PARTS DESCRIPTION 18PCS Wood Dowel 18PCS Cam Bolt 18PCS Cam Lock 18PCS Screw (3x12mm) 4PCS Hinge 2PCS Magnet Plate 18PCS Wood Screw (2.5x12mm) 1 SET Magnet With 2 Screws 8PCS Shelf Holder 6PCS Machine Screw (4x12mm) 3PCS Handle 8PCS Screw (3.5x12mm) 4PCS Screw (4x35mm) Plastic Connection Strip...
  • Page 5 STEP 1 1. Attach drawer left side panel (12) to drawer back board (14) by inserting 2 long wood screws (M) through holes on drawer left side panel (12), then tighten to drawer back board (14). 2. Attach drawer right side panel (11) to drawer back board (14) by inserting 2 long wood screws (M) through holes on drawer right side panel (11), then tighten to drawer back board (14).
  • Page 6 STEP 3 1. Turn assembled drawer upside down. 2. Attach drawer slides (W) to drawer right side panel (11) by inserting 2 wood screws (L) through holes on drawer slides (W), then tighten to drawer right side panel (11). 3. Attach drawer slides (W) to drawer left side panel (12) by inserting 2 wood screws (L) through holes on drawer slides (W), then tighten to drawer left side panel (12).
  • Page 7 STEP 5 Screw 3 cam bolts (B) into cam bolt holes on right support board (3). Insert 2 wood dowels (A) into dowel holes on right support board (3). Attach right support board (3) to right side panel (2) by inserting wood dowels (A) into dowel holes and inserting cam bolts (B) into cam lock holes on right side panel (2).
  • Page 8 STEP 7 1. Attach drawer slides (V) to right side panel (2) by inserting 2 wood screws (L) through holes on drawer slides (V), then tighten to right side panel (2). 2. Attach 2 hinges (E) to right support board (3) by inserting 4 wood screws (D) through holes on hinges (E), then tighten to right support board (3).
  • Page 9 STEP 9 1. Insert 2 screws (U) through sliding brackets (S) into holes on top board (7). Insert 4 wood dowels (A) into dowel holes on top of left side panel (1) and right side panel (2). 3. Screw 4 cam bolts (B) into cam bolt holes on top board (7). Attach top board (7) to left side panel (1) and right side panel (2) by inserting 4 wood dowels (A) into dowel holes on top board (7), then insert 4 cam bolts (B) into cam lock holes on left side panel (1) and right side panel (2).
  • Page 10 STEP 11 1. Attach left door (15) to left side panel (1) by inserting 4 wood screws (D) through holes on hinges (E), then tighten to left door (15). 2. Attach handle (K) to left door (15) by inserting 2 machine screws (J) through holes on left door (15), then tighten to handle (K).

  • Page 11: Care Instructions

    STEP 13 1. Place drawer in cabinet by inserting drawer slides with wheels into drawer slides in cabinet. Insert 8 shelf holders (I) into holes on left side panel (1) and right side panel (2) at desired shelf heights. Place shelves (9) onto shelf holders (I). ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts.
  • Page 12 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.

This manual is also suitable for:

Somerset 06-077
