RiverRidge Somerset 06-037 Assembly Instructions Manual

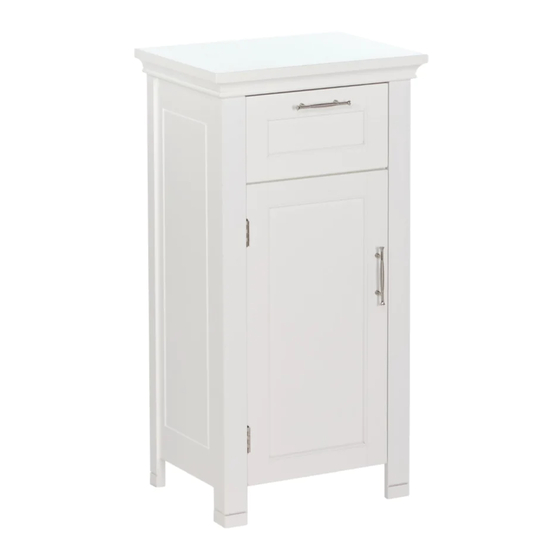

Single door floor cabinet
Hide thumbs Also See for Somerset 06-037:

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS
Somerset Single Door Floor Cabinet
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Somerset 06-037 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverRidge Somerset 06-037

Summary of Contents for RiverRidge Somerset 06-037

  • Page 1 ASSEMBLY INSTRUCTIONS Somerset Single Door Floor Cabinet ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS OR 75 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 25 POUNDS PER SHELF OR 75 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM WALL AND CAUSE SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Right Side Panel Left Side Panel Cross Bar Bottom Board Top Board Back Board Door Drawer Front Board Drawer Left Side Panel Drawer Right Side Panel Drawer Back Board Drawer Bottom Board Shelf Left Support Board Right Support Board...
  • Page 4 PARTS DESCRIPTION 18PCS Wood Dowel 18PCS Cam Bolt 18PCS Cam Lock 10PCS Screw (3x12mm) 2PCS Hinge Magnet Plate 13PCS Screw (2.5x12mm) 1 SET Magnet with 2 Screws 4PCS Shelf Holder 4PCS Machine Screw (4x12mm) 2PCS Handle 4PCS Screw (4x35mm) Plastic Anchor Screw (4x30mm) Adjustable Anchor Bracket Screw (4x14mm)
  • Page 5 STEP 1 Attach drawer left side panel (9) to drawer back board (11) by inserting 2 screws (L) through holes on drawer left side panel (9), then tighten into drawer back board (11). Attach drawer right side panel (10) to drawer back board (11) by inserting 2 screws (L) through holes on drawer right side panel (10), then tighten into drawer back board (11).
  • Page 6 STEP 3 Attach drawer slides (U) to drawer right side panel (10) by inserting 2 wood screws (S) through holes on drawer slides (U), then tighten into drawer right side panel (10). Attach drawer slides (U) to drawer left side panel (9) by inserting 2 screws (S) through holes on drawer slides (U), then tighten into drawer left side panel (9).
  • Page 7 STEP 5 Attach left support board (14) to left side panel (2) by inserting cam bolts into cam lock holes and inserting wood dowels into dowel holes on the left side panel (2). Insert 3 cam locks (C) into cam lock holes on left side panel (2), then rotate clockwise to secure cam bolts in place.
  • Page 8 STEP 6 Screw 6 cam bolts (B) into cam bolt holes on left side panel (2) and right side panel (1). Insert 6 wood dowels (A) into dowel holes on left side panel (2) and right side panel (1). Attach cross bar (3) to left side panel (2) by inserting wood dowel (A) and cam bolt (B) into holes on cross bar (3) and insert 1 cam lock (C) into cam lock hole on cross bar (3) and rotate clockwise to secure cam bolt (B) in place.
  • Page 9 STEP 7 Insert 1 screw (R) through adjustable anchor bracket (P) into hole on top board (5). Screw 4 cam bolts (B) into cam bolt holes on top board (5). Insert 4 wood dowels (A) into dowel holes on top of left side panel (2) and right side panel (1).
  • Page 10 STEP 9 Option #1: Securing to Drywall Position cabinet against wall in desired location. Using a pencil, make small mark on wall through hole on bracket (P). Move cabinet away from wall and screw 1 plastic anchor (N) into wall on pencil mark. Place cabinet against wall, insert 1 screw (O) through hole on metal bracket (P), then tighten to plastic anchor (N).

  • Page 11: Care Instructions

    STEP 11 Insert 4 shelf holders (I) into holes on left side panel (2) and right side panel (1) at desired shelf height. Place shelf (13) onto shelf holders (I). ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts.
  • Page 12 Enjoy your new cabinet!

This manual is also suitable for:

Somerset 06-076
