Summary of Contents for Contixo F35

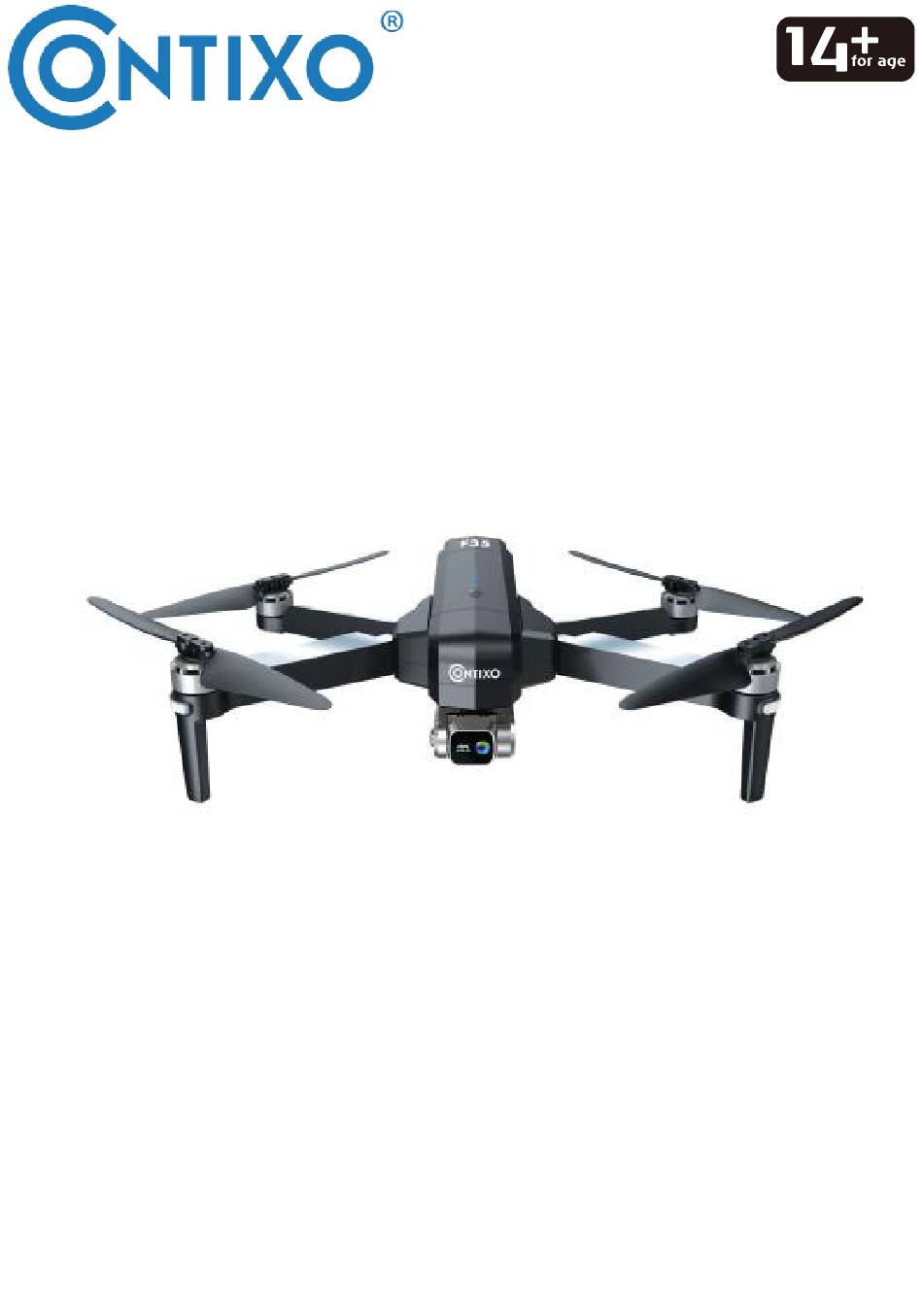

- Page 1 — F35 DRONE INSTRUCTION MANUAL —...
-
Page 2: Table Of Contents
-------------------------------------------------------- Safety precau�ons Remote Control Func�ons ------------------------------------- -------------------------------------------------- Drone Diagram Dual Remote Controller Mode ------------------------------- Remote Control Opera�ng Method ------------------------------- ------------------------------------- Install the Con�xo F35 App -------------------------------------------------- Flight -------------------------------------------------- WayPoint Flight -------------------------------------------------------- Orbit Mode -------------------------------------------------------- Flight Se�ng -------------------------------------------------- Camera Func�ons... -
Page 3: Introduc�On
PREFACE: Thank you for Purchasing the Con�xo F35 RC Drone The Con�xo F35 Drone is a quadcopter that’s purposely built for drone applica�on developers to enable you to get your applica�ons airborne quickly. This Development pla�orm is intended to be modified by developers according to their professional judgment. - Page 4 NOTE: This equipment has been tested and found to comply with the limits for a class b digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protec�on against harmful interference in a residen�al installa�on.
- Page 5 Flight Safety Fly in Open Strong GPS Maintain Line Fly Below Areas Signal of Sight 400 feet (120 m) Avoid flying over or near obstacles, crowds, high voltage power lines, trees, airport s or water. DO NOT fly near strong electromagne�c sources such as power lines and base sta�ons as it may affect the onboard compass.
-
Page 6: Remote Control Func�Ons
It’s important to understand basic flight guidelines, for the safety of both you and those around you. Don’t forget to read the safety guidelines before flight. Remote Control Func�ons 1. Thro�le S�ck 2. Direc�on S�ck 3. Click once speed switch 4. -
Page 7: Drone Diagram
6. Click once to RTH mode; Keep pressing for 5 seconds switch to normal mode/GPS mode. 7. Zoom in and out 8. Gimbal Dial: Controls the camera's �lt 9. Shoo�ng 10. Recording Zoom in and out Controls the camera's tilt Left/Right Stick switch Charging indicator Repeater Signal... - Page 8 ①. Drone Unfold Unfold the front arm first, then unfold the back arm. ②. Drone Fold Fold the back arm first, then fold the front arm. 1. Install the Propellers Tip! Both the propellers and motors are marked with A, B (propeller A with motor A and propeller B with motor B.
- Page 9 2. Intelligent Flight Ba�ery Electricity High 1. Power Bu�on 2. Ba�ery Power Indicator 3. USB Charging Port — To power ON, hold the bu�on for 3 seconds. To power OFF, hold the bu�on for 3 seconds. — When the ba�ery is at low power, the blue power indicator will start flashing. At this �me, return the drone immediately and charge the ba�ery to avoid unnecessary power failures.
- Page 10 Phone Adapter: Charging Time: Remote Control About 4.5 hours 5V/ 3A(Not include) Charging Es�ma�on �me: Around 25 minutes Tip: When the remote control ba�ery is low, the power indicator light on the remote control will keep flashing. Please charge the remote control. 4.
-
Page 11: Dual Remote Controller Mode
Dual-Se�ng Remote Controller indicator — Power off the remoter control. Hold (camera) then press (power) at the same �me. Two beeping sound means the Right Joys�ck has switched to the thro�le s�ck, the LED indicator OFF. — Power off the remoter control. Hold (camera) then press (power) at the same �me. -
Page 12: Remote Control Opera�Ng Method
DOWN Direc�on Joys�ck Install the Con�xo F35 App QR code for “Con�xo F35” applica�on for Apple IOS system (Please scan this QR code to install this so�ware). QR code for “Con�xo F35” applica�on for Android system (Please scan this QR code to install this so�ware). -
Page 13: Flight
— When rear lights flash blue and front lights white, pairing is successful. NOTE: You can connect to the drone WiFi signal at this �me to view the current drone on the Con�xo F35 app, or wait un�l a�er GPS is calibrated. Step 3: Connect App Con�xo - F35 - XXXX... - Page 14 Click the “CONTROLS” bu�on to enter he APP interface. APP INTRODUCTION Wait un�l the Drone Status at the bo�om right of the screen reads “Ready to Fly” before ini�a�ng flight. This will ensure that your GPS is synced and your drone is ready to fly.
- Page 15 Back to Main Menu Remote Battery GPS Signal Aircraft Battery One-Key Take-o SD card status Photo/Video Switching GPS Return Home Shutter More Functions Media Gallery (One key to share) Height (meters) Distance (feet) Speed (feet/sec) Sound Recording - 13 -...
- Page 16 Step 4: Compass Calibra�on Part 1: Compass Calibra�on — Move and posi�on le� joys�cks to 1 o’clock & right joys�ck to 11 o’clock. — Rear lights will rapidly blink Blue/Red and White/Red in front. — App Drone Status: “Compass Calibra�on”. Part 2: Compass Calibra�on —...
- Page 17 — App Drone Status: “Compass Calibra�on Okay” NOTE: If compass does not calibrate quickly, tap the screen on the Con�xo F35 App and restart the calibra�on process. Step 5: Reset to factory Se�ng/Calibrate Gyroscope — Push the joys�cks into the 11 o’clock (le� joys�ck) & 1 o’clock (right joys�ck) posi�on.
- Page 18 Star�ng/Stopping motors Star�ng Motors: 1. Push the joys�cks into the 5 o’clock (le� joys�ck) & 7 o’clock (right joys�ck) posi�on. 2. Motors will start working. Push the le� joys�ck up to takeoff. NOTE: Start the motors before drone takeoff. Rota�ng propellers can be dangerous. DO NOT start the motors when there are people nearby.
- Page 19 Always fly in open and clean area, the F35 drone does not have obstacle avoidance capability when the drone returns back to assigned area.
- Page 20 Follow Object Click then click (box around person or Object ). Tap on the object or person you want to track, then tap again to confirm your selec�on. NOTE: Make sure the size of the frame you mark is the same as the object or person you tap, the frame should not exceed the object or person in the capture frame.
- Page 21 Return-to-Home (RTH) The Return to Home (RTH) func�on brings the drone back to the Take Off Point. This func�on can only be achieved under GPS mode. There are 3 types of RTH: Smart RTH/Low-ba�ery RTH/Fail connec�on RTH. Return-to-home GPS Feature Descrip�on When the drone is doing The Return to Home feature, it will first fly straight up to the according to the return to home al�tude se�ng.
-
Page 22: Waypoint Flight
— To start a WayPoint Flight, first download and save your local map in your smartphone. (Connect your smartphone to network via WiFi or 4G LTE, open the F35 App and enable the Waypoint mode, you will see a map then zoom in to the maximum, when the map is fully displayed.) —... -
Page 23: Orbit Mode
Orbit Mode 1. Hover the drone around the center point. 2. Press (camera) + (video camera) on the remote control at the same �me. 3. Move and set the drone in the radius range you prefer (within 6 feet – 328 feet) using the direc�on joys�ck. -
Page 24: Flight Se�Ng
flashing, indica�ng the camera is recording video. Press (video camera) again to save the video. DO NOT take photos while recording video. NOTE: When using the “Con�xo F35” App, the original photos and videos will be compressed and saved to your smartphone. - 22 -... -
Page 25: How To Find A Lost Drone
How To Find a Lost Drone ①. Con�nue to click to open the MAP surface to search the drone. Find drone Parameter Track PTZ Adjust Footprint Visit 0 districts Flight time Flight distance Flights Max mileage 0.0 m 0.0 min 0.0 m Max altitude 0.0 m... - Page 26 1. One-Bu�on Media Sharing Figure 1. One Bu�on Media Sharing Figure 2. Control Bu�ons Photo Video 2017-12-28 Check all Share Save to the Delete phone album - 24 -...
- Page 27 Figure 3. Viewing Photos Figure 4. AirDrop Photo Sharing 1. Open the App, click (gallery) to access your picture and video files (Pic 1.) 2. Click once or press (checkmark list) to choose the photos you want to share. Click (box with arrow) to choose the pla�orms to share to (Pic 3).
- Page 28 2. Save the photo and video to the mobile APP album Open the APP and connect the WiFi with the PHOTO VIDEO drone, click the and enter the media gallery (Pic.1). Pic. 1 APP gallery: Choose photo and video and save them in the mobile album, click , photo PHOTO...
-
Page 29: Specifica�Ons
Format the micro SD card on the first use if your unable to read the memory card. SPECIFICATIONS ● Drone MODEL: F35 Weight (Including Ba�ery): 585g/20.6 oz Flight Time: About 26 minutes WIFI Camera Distance: 300m～700m( 980feet～2200 feet) (Outdoors and unobstructed, depending on condi�ons and your... - Page 30 ● App / Live View Mobile App: “Con�xo F35” in App Store & Google Play Store Frequency Range 5 Ghz TRANSMISSION CONFIGURATION STORAGE METHOD RESOLUTION FRAME RATE Photo 3840X2160P Phone Video 1280X720P 30 fps Photo 3840X2160P 30 fps TF card...
-
Page 31: Parts List (Included)
PARTS LIST (Included) USB cable Blade x 4 Only for charging Instruc�ons x 1 Hexagon Allen wrench x 1 Screw x 12 - 29 -... - Page 32 COMMON PROBLEMS AND SOLUTIONS THE PROBLEM REASON TROUBLESHOOT Drone lights flashing and 1. Remote is not synced to 1. Refer to the App Quick Start no response from the drone the drone. and re-sync the drone. when opera�ng. 2. Insufficient ba�ery power. 2.
- Page 33 13 miles by taking both ends of the runway as the center is HIGHLY FORBIDDEN. Flying on the route of the airline is also PROHIBITED. Do not use drone or other flying drones in areas that are forbidden or prohibited by your local laws and regula�ons. Website: www.contixo.com...
- Page 34 CONTACT INFORMATION E-Mail: support@con�xo.com Website: www.con�xo.com ©2020 Con�xo Inc. All rights reserved. Con�xo®, the Con�xo logo and associated characters, trademarks and design elements are owned and licensed by Con�xo Company.
