F21 DRONE INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F21 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Contixo F21

Summary of Contents for Contixo F21

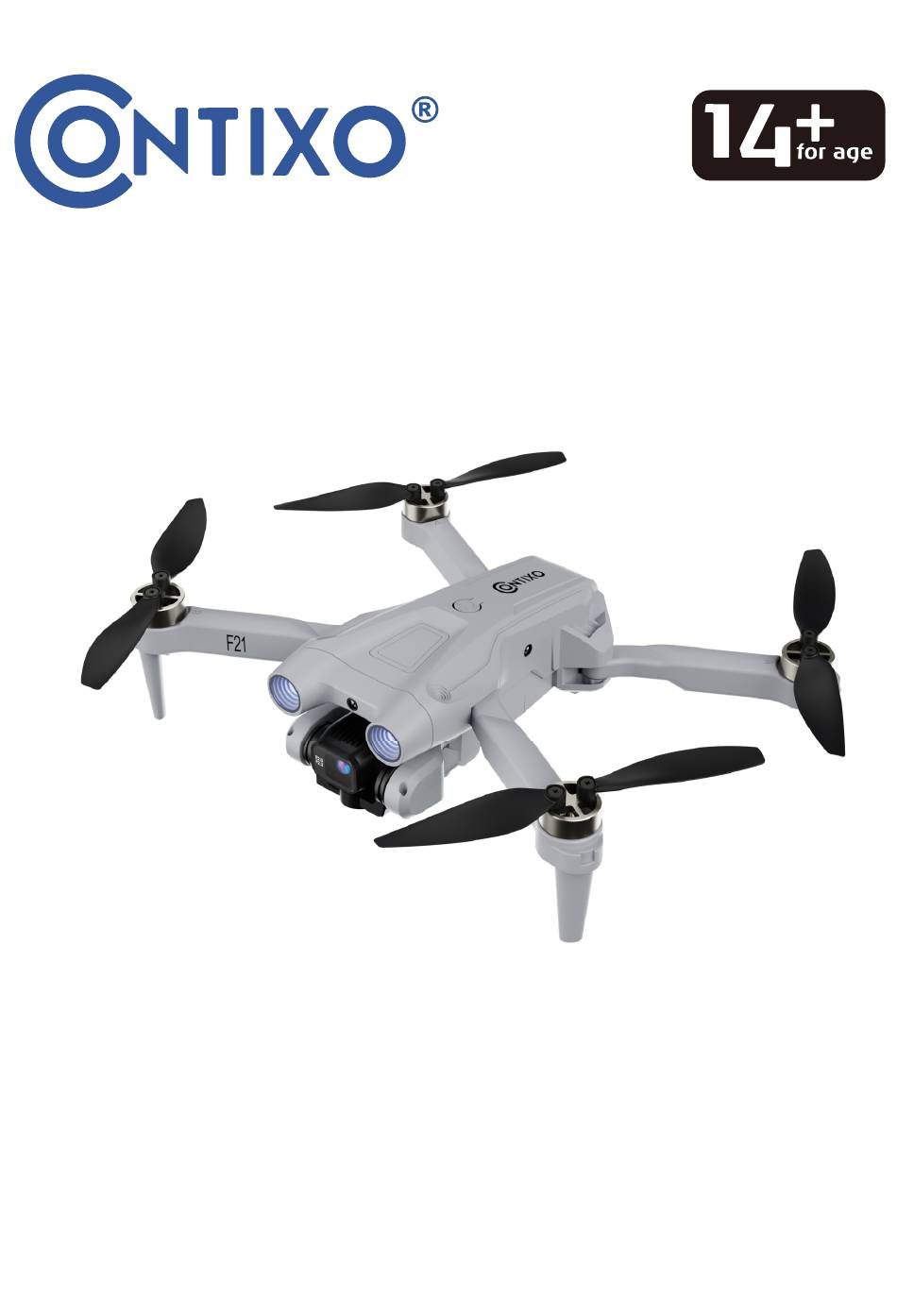

  • Page 1 F21 DRONE INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    ------------------------------------------------------------ IMPORTANT -------------------------------------------------------- SAFETY PRECAUTIONS -------------------------------------------------------- WARNING EXEMPTION ------------------------------------- -------------------------------------------------- FLIGHT SAFETY ------------------------------------- REMOTE CONTROL FUNCTIONS -------------------------------------------------- REMOTE CONTROL BATTERY INSTALLATION -------------------------------------------------- CHARGING THE BATTERY FLIGHT -------------------------------------------------- -------------------------------------------------- SPECIFICATIONS -------------------------------------------------- PACKING DETAILS -------------------------------------------------- TROUBLE SHOOTING...

  • Page 3: Important

    The F21 drone should only be operated by individuals age 14 and up, and is best supervised by experienced UAV pilots. This is a precisely-made device from its electronics, mechanical components, and high-frequency transmission technology, according to its aerodynamic design.
  • Page 4 1. Keep it far away from any structures or crowds: This remote-control aircra� may vary slightly in speed or sensi�vity while flying and can cause poten�al danger. Therefore, please keep it far away from crowds, buildings, trees, structures, high-voltage wires, etc... Please also avoid flying in adverse weather condi�ons such as rain, snow, electrical storms, and high winds to ensure safety of the user, any spectators, and surrounding property.

  • Page 5: Warning

    • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec�on against harmful interference in a residen�al installa�on.
  • Page 6 5. Children ages 14 and up should use this product under the guidance of an adult. This product is NOT to be used by children under 14 years old. 6. Please correctly assemble and use this product as shown in the instruc�on manual or packaging instruc�ons.
  • Page 7 18. The aircra� should be kept far away from any other electrical equipment that may cause interference. 19. Please keep a safe distance from the high-speed rota�ng rotor to avoid injury of being wounded or being cut. 20. Components may get hot during use. Please DO NOT touch motors to avoid being burned or injured.

  • Page 8: Exemption

    EXEMPTION When using this product, Con�xo Inc. shall not be responsible for direct or indirect damages caused by the following: 1. Any damages caused by the user experiencing: fa�gue, nausea, poor physical / mental health condi�ons, or under the influence of alcohol, or drugs. 2.

  • Page 9: Flight Safety

    10. Damage caused by infringement of any data, audio or video data obtained from the user using the quadrotor. 11. Damage to the ba�ery, such as damage caused by improper matching of the protec�on circuit, ba�ery pack and charger. 12. Any indirect losses or legal liabili�es caused by problems of equipment or accessories (including memory cards), for example, images or videos that cannot be saved.
  • Page 10 Avoid flying over or near obstacles, crowds, high-voltage power lines, trees, airports, or bodies of water. DO NOT fly near strong electromagne�c sources such as power lines and base sta�ons as it may affect the onboard compass. 5m/s DO NOT use the drone in adverse weather condi�ons such as rain, snow, fog and wind.

  • Page 11: Remote Control Functions

    It’s important to understand basic flight guidelines, for the safety of both you and those around you. Don’t forget to read the Safety Guidelines before flight. REMOTE CONTROL FUNCTIONS Take picture (Quick press) Take video (Hold for 3 seconds) Speed switch (Quick press) Obstacle avoidance (Hold for 3 seconds) Thro�le s�ck (ascend / descend/ turn le�...
  • Page 12 DRONE DIAGRAM Power switch Motor A Motor B Motor A Motor B Camera PRE-FLIGHT PREPARATION 1. Opening Steps A. Open the front arm (close to camera). B. Open the back arm. Note: Fold the back arm first before proceeding to the front arm when folding.
  • Page 13 2. Install the Propellers Align the blades with the motor sha� and install them (the arm iden�fica�on must be consistent with the blade iden�fica�on). Tighten the screw clockwise. 3. Intelligent Flight Ba�ery 1. To power ON, hold the power bu�on for 3 seconds. To power OFF, hold the power bu�on for 3 seconds.
  • Page 14 5. Remote Control Ba�ery Installa�on 1. Remove the ba�ery cover from the back of controller. 2. Install 3 x AA ba�eries into the controller, make sure to install ba�eries to their correct polarity. Do not mix old and new ba�eries or ba�ery types.

  • Page 15: Flight

    INSTALL THE CONTIXO F21 APP Search “Con�xo F21” applica�on in APP Store. Search “Con�xo F21” applica�on in Google Play Store. Required Opera�ng Systems: IOS 8.0 or higher / Android 5.0 or higher. Con�xo F21 FLIGHT Step 1: Turn on the drone and put down on a level surface Turn on the drone and the lights of the drone will start blinking.
  • Page 16 Con�xo - F21 - XXXX — Connect your smartphone to the WiFi of the drone and check the drone’s status on the “Con�xo F21” app. — Open the “Con�xo F21” applica�on on your smartphone to access the control interface. Click “Start”.
  • Page 17 APP Introduc�on 1. Gesture Photo 11. Exit 2. Gesture Video 12. One Key Take Off 3. Take Photo 13. One Key Landing 4. Take Video 14. Headless Mode 5. 3D Roll 15. Calibrate Gyroscope 6. Gallery 16. Switch Speed 7. APP Control On/Off 17.
  • Page 18 Step 5: Reset to Factory Se�ng/Calibrate Gyroscope — Push the joys�cks into the 7 o’clock (le� joys�ck) & 5 o’clock (right joys�ck) posi�on or press and hold “ ” icon on the remote control. — Lights will rapidly blink and change to steady light. Or click “...
  • Page 19 Opera�ng Method Le� Joys�ck DOWN Right Joys�ck 3D Roll Quick press “ ” bu�on or click “ ” on the app when the drone is under APP control mode, then push the right joys�ck forward, backward, le� or right. The drone will roll in the air in the corresponding direc�on. Please ensure that the drone is fully charged and maintains a height of about 5 feet from the ground.
  • Page 20 Speed Switch & Obstacle Avoidance Mode Speed Switch Press the “ ” bu�on or click “ ” on the app when the drone is under APP control mode to switch speed. Different speed gears have different beeps : “Di~” is the low speed mode, “Di~Di~” is the medium speed mode, and “Di~Di~Di” is the high speed mode.
  • Page 21 Press and hold the “ ” bu�on for 3 seconds or click “ ” on the app to take video. Photos and videos will be saved in the phone. DO NOT take photos while recording video. Headless Mode & One Key Return Headless Mode 1.
  • Page 22 Front Front Le� Right Le� Right Back Back As shown in the above figure, when the drone rotates in flight, the flight direc�on is not changed in the headless mode state. One Key Return During the flight, the drone can be recalled using the return func�on. Press and hold the “...
  • Page 23 Gesture Selfie Mode Click “ ” bu�on on the App. Hold up 2 fingers to take a picture. Click “ ” bu�on on the App. Wave your hand to begin recording video. There is a 3 seconds countdown before taking a video or picture. NOTE: This func�on can only be used when there is adequate light.
  • Page 24 Gravity Control Mode Click “ ” to enter gravity control mode. (This mode can only be used in APP controlled mode.) You can control the flying direc�on of the drone according to the �lt angle of the phone. Tilt the phone forward, the drone flies forward. Tilt the phone backwards, the drone flies backwards.

  • Page 25: Specifications

    S�ll Photography Mode: Single shot Photo Format: JPEG Video Format: MP4 Opera�ng Temperature Range: 32°to 104°F ( 0°to 40°C) Mobile App: “Con�xo F21” in App Store & Google Play Store Live View Working Frequency: 2.4 GHz ISM FRAME PER CAMERA...

  • Page 26: Trouble Shooting

    TROUBLE SHOOTING Problem Cause Solu�on 1. Remote is not synced to 1. Refer to page 13-14 (Flight). Drone does not respond the drone. 2. Recharge the ba�ery. to user controls. 2. Insufficient ba�ery power. 1. Insufficient ba�ery power. 2. The blades distorted. The blades spin, but the 1.
  • Page 27 CONTACT INFORMATION E-Mail: support@con�xo.com Website: www.con�xo.com ©2023 Con�xo Inc. All rights reserved. Con�xo®, the Con�xo logo and associated characters, trademarks and design elements are owned and licensed by Con�xo Company.
