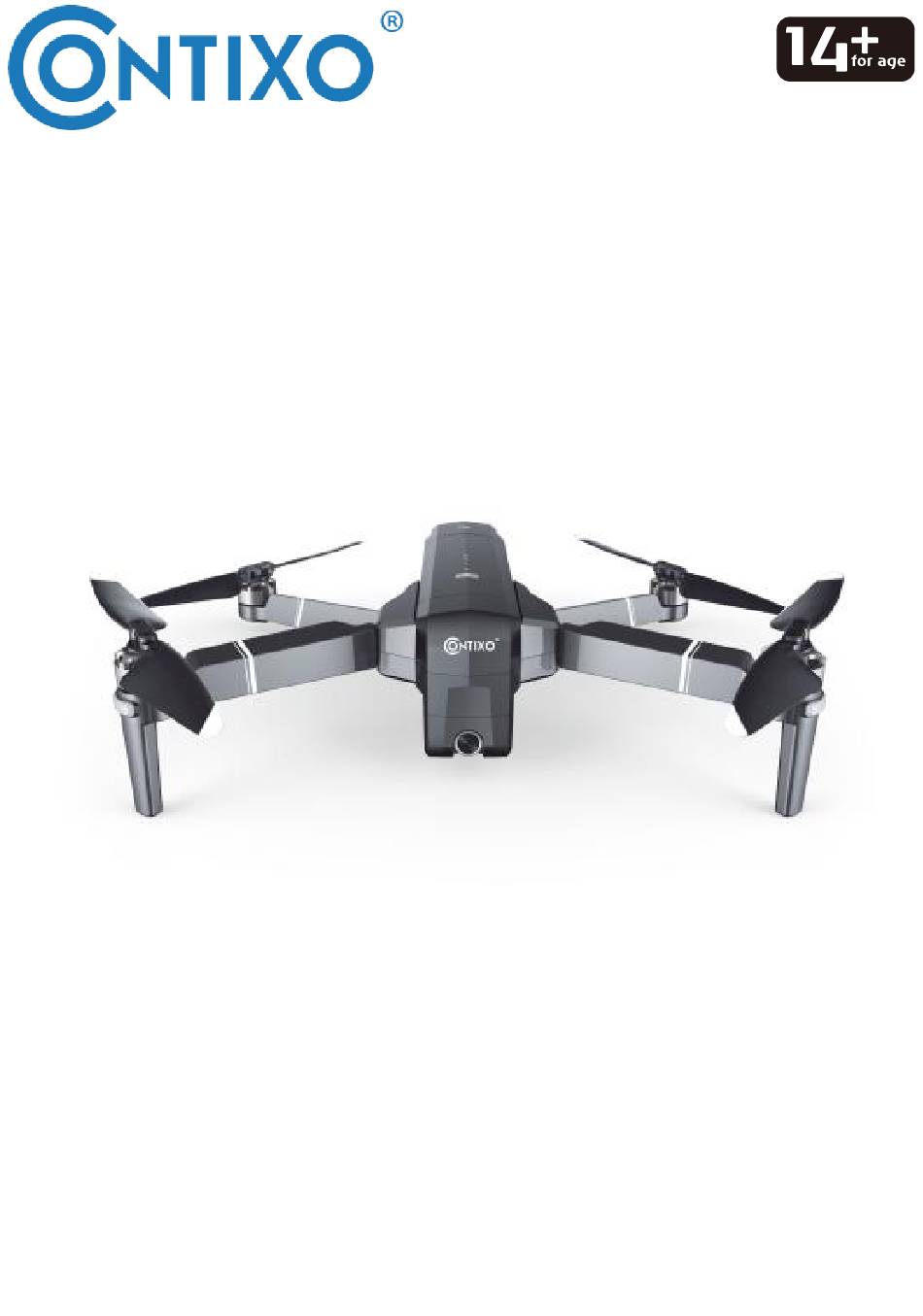

- Page 1 — F24/F24 Pro DRONE INSTRUCTION MANUAL —...
-
Page 2: Table Of Contents
------------------------------------------------------------ Introduc�on -------------------------------------------------------- Safety precau�ons Remote Control Func�ons ------------------------------------- -------------------------------------------------- Drone Diagram Dual Remote Controller Mode ------------------------------- Remote Control Opera�ng Method ------------------------------- ------------------------------------- Install the Con�xo F22 App -------------------------------------------------- Flight -------------------------------------------------- WayPoint Flight -------------------------------------------------------- Orbit Mode -------------------------------------------------- Camera Func�ons -------------------------------------------------- Specifica�ons Parts list (Included) -----------------------------------------------... -
Page 3: Introduc�On
PREFACE: Thank you for Purchasing the Con�xo F24 RC Drone The Con�xo F24 Drone is a quadcopter that’s purposely built for drone applica�on developers to enable you to get your applica�ons airborne quickly. This Development pla�orm is intended to be modified by developers according to their professional judgment. - Page 4 NOTE: This equipment has been tested and found to comply with the limits for a class b digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protec�on against harmful interference in a residen�al installa�on.
- Page 5 Flight Safety Fly in Open Strong GPS Maintain Line Fly Below Areas Signal of Sight 400 feet (120 m) Avoid flying over or near obstacles, crowds, high voltage power lines, trees, airport s or water. DO NOT fly near strong electromagne�c sources such as power lines and base sta�ons as it may affect the onboard compass.
-
Page 6: Remote Control Func�Ons
It’s important to understand basic flight guidelines, for the safety of both you and those around you. Don’t forget to read the safety guidelines before flight. Remote Control Func�ons 1. Thro�le S�ck 2. Direc�on S�ck 3. 1-Key Return-To-Home 4. Power Bu�on: ON –... - Page 7 5. 1-Key Headless Mode (Hold the bu�on for 3 seconds to turn off GPS mode) 6. 1-Key Takeoff with Auto-Hover; 1-Key Landing (Hold the bu�on for 3 seconds for Emergency Stop) 7. 1-Key Photo Capture; Hold 3 Seconds to Enter Trim Mode (Note: No need to trim under the GPS mode) 8.
-
Page 8: Drone Diagram
Drone Diagram 1. HD Camera 2. Propeller 3. Propeller Motor 4. LED Indicator 5. Intelligent Ba�ery ①. Drone Unfold Unfold the front arm first, then unfold the back arm. ②. Drone Fold Fold the back arm first, then fold the front arm. 1. - Page 9 2. Intelligent Flight Ba�ery Electricity High 1. Power Bu�on 2. Ba�ery Power Indicator 3. USB Charging Port — To power ON, hold the bu�on for 3 seconds. To power OFF, hold the bu�on for 3 seconds. — When the ba�ery is at low power, the blue power indicator will start flashing. At this �me, return the drone immediately and charge the ba�ery to avoid unnecessary power failures.
- Page 10 Phone Adapter: Charging Time: Remote Control About 5 hours 5V/ 3A(Not include) Charging Es�ma�on �me: Around 60 minutes Tip: When the remote control ba�ery is low, the power indicator light on the remote control will keep flashing. Please charge the remote control. 4.
-
Page 11: Dual Remote Controller Mode
Dual-Se�ng Remote Controller — Press (camera) then press (power) at the same �me. A beeping sound means the Right Joys�ck has switched to the thro�le s�ck. When you turn off the remote control and turn it on again, the remote resets to default with the Le�... -
Page 12: Remote Control Opera�Ng Method
REMOTE CONTROL OPERATING METHOD Thro�le Joys�ck DOWN Direc�on Joys�ck Install the Con�xo F22 App QR code for “Con�xo F22” applica�on for Apple IOS system (Please scan this QR code to install this so�ware). QR code for “Con�xo F22” applica�on for Android system (Please scan this QR code to install this so�ware). -
Page 13: Flight
Con�xo F22 app, or wait un�l a�er GPS is calibrated. Step 3: Connect App F24 Pro Con�xo - F24 - XXXX F24 Pro - XXXX — Connect your smartphone to the WiFi of the drone and check the drone’s status on the “Con�xo F22”... - Page 14 First select the drone model F24, then click the “CONTROLS” bu�on to enter the APP interface. APP INTRODUCTION Wait un�l the Drone Status at the bo�om right of the screen reads “Ready to Fly” before ini�a�ng flight. This will ensure that your GPS is synced and your drone is ready to fly.
- Page 15 Step 4: Compass Calibra�on Part 1: Compass Calibra�on — Move and posi�on le� joys�cks to 1 o’clock & right joys�ck to 11 o’clock. — Rear lights will rapidly blink Blue/Red and White/Red in front. — App Drone Status: “Compass Calibra�on”. Part 2: Compass Calibra�on —...
- Page 16 Part 3: Compass Calibra�on — From the bo�om, hold the drone ver�cally so the camera is facing toward the ground. Rotate your body in one full circle (360°). — Front lights will turn to solid white. — App Drone Status: “Compass Calibra�on Okay” NOTE: If compass does not calibrate quickly, tap the screen on the Con�xo F22 App and restart the calibra�on process.
- Page 17 Star�ng/Stopping motors Star�ng Motors: 1. Push the joys�cks into the 5 o’clock (le� joys�ck) & 7 o’clock (right joys�ck) posi�on. 2. Motors will start working. Push the le� joys�ck up to takeoff or press the 1-Key Take off bu�on. NOTE: Start the motors before drone takeoff. Stopping Motors: 1.
- Page 18 This could be due to signal loss from surrounding buildings and trees or conges�on from too many mobile phones in the area. Always fly in open and clean area, the F24 drone does not have obstacle avoidance capability when the drone returns back to assigned area.
- Page 19 Follow Object Click (running person) then click (box around person or Object ). Tap on the object or person you want to track, then tap again to confirm your selec�on. NOTE: Make sure the size of the frame you mark is the same as the object or person you tap, the frame should not exceed the object or person in the capture frame.
- Page 20 Return-to-Home (RTH) The Return to Home (RTH) func�on brings the drone back to the Take Off Point. This func�on can only be achieved under GPS mode. There are 3 types of RTH: Smart RTH/Low-ba�ery RTH/Fail connec�on RTH. Return-to-home GPS Feature Descrip�on When the drone is doing The Return to Home feature, it will first fly straight up to the according to the return to home al�tude se�ng.
- Page 21 Headless Mode 1. The drone defaults to Normal Mode when the drone and remote control are matched successfully. Click (compass) to enter into Headless mode. Click (compass) again to exit Headless mode. 2. Normal Mode: Before takeoff, the white lights on the drone indicate the forward-facing direc�on.
-
Page 22: Waypoint Flight
Adjus�ng Trim in No GPS Mode If the drone flies in None GPS Mode, you can trim the drone to obtain more balanced flight. Press and hold (camera bu�on) for 3 seconds, it will enter trim mode. Holding the bu�on and pushing the direc�on joys�ck to the opposite side at the same �me, the drone dri�s to rebalance it. -
Page 23: Orbit Mode
Orbit Mode 1. Hover the drone around the center point. 2. Press (camera) + (video camera) on the remote control at the same �me. 3. Move and set the drone in the radius range you prefer (within 6 feet – 30 feet) using the direc�on joys�ck. -
Page 24: Camera Func�Ons
Flight The Default GPS Mode is Beginner Mode. In Beginner Mode: 1. Flight Distance from remote control is limited to between 0 – 90 feet. 2. Flight Al�tude from remote control is limited to between 0 – 90 feet. 3. Return-To-Home Al�tude is below 75 feet. You can turn off... - Page 25 1. One-Bu�on Media Sharing Figure 1. One Bu�on Media Sharing Figure 2. Control Bu�ons Photo Video 2017-12-28 Check all Share Save to the Delete phone album - 23 -...
- Page 26 Figure 3. Viewing Photos Figure 4. AirDrop Photo Sharing 1. Open the App, click (gallery) to access your picture and video files (Pic 1.) 2. Click once or press (checkmark list) to choose the photos you want to share. Click (box with arrow) to choose the pla�orms to share to (Pic 3).
- Page 27 2. How To Find a Lost Drone ①. Click the (satellite) 3 �mes to open the map to search for the drone. ②. The last posi�on of the lost drone will appear on the map, and you can find the last posi�on of the drone according to the label on the map (about 30 feet error).
-
Page 28: Specifica�Ons
Micro SD Card (Sold separately) Micro SD The original images and videos are saved on the Micro SD card. Push the Micro SD card slightly to release the memory card. Next, insert the card into the card reader. Insert the card reader into the USB outlet of a computer to retrieve the photos and videos from the Micro SD card. - Page 29 SPECIFICATIONS ● Drone MODEL: F24/F24 Pro Weight (Including Ba�ery): 520g/18.3 oz Flight Time: About 26～30 minutes WIFI Camera Distance: 300m～700m( 980feet～2200 feet) (Outdoors and unobstructed, depending on condi�ons and your mobile device) Motor Model: 1806 Auto-Hovering: Enabled Opera�ng Temperature Range: 32°to 104°F ( 0°to 40°C) Satellite Systems: GPS / GLONASS Dimensions: Open –...
- Page 30 25 fps Video 2048X1152P Photo 3840X2160P Phone 25 fps Video 1280X720P F24 PRO 2.7K Photo 2976X1680P TF card 25 fps Video 2976X1680P Latency: Low Latency Video (depend on condi�ons and mobile device) Required Opera�ng Systems: IOS 8.0 or later / Android 4.4.4 or later Recommended Devices: 4.7”...
-
Page 31: Parts List (Included)
PARTS LIST (Included) USB cable Blade x 4 Only for charging Instruc�ons x 1 Hexagon Allen wrench x 1 Screw x 12 - 29 -... - Page 32 COMMON PROBLEMS AND SOLUTIONS THE PROBLEM REASON TROUBLESHOOT Drone lights flashing and 1. Remote is not synced to 1. Refer to the App Quick Start no response from the drone the drone. and re-sync the drone. when opera�ng. 2. Insufficient ba�ery power. 2.
- Page 33 Technical Support Have ques�ons? Go to www.youtube.com to search "Con�xo Drone F24" to watch the videos for the setup, opera�on and trouble shoo�ngs. E-mail: support@con�xo.com Mon-Fri 9:00 am - 4:00 pm PST In order to make sure that your drone meets the requirements of the electromagne�c environment of the avia�on radio sta�on,...
- Page 34 CONTACT INFORMATION E-Mail: support@con�xo.com Website: www.con�xo.com ©2020 Con�xo Inc. All rights reserved. Con�xo®, the Con�xo logo and associated characters, trademarks and design elements are owned and licensed by Con�xo Company.
