Connecting the Optional Auxiliary Power Supply
Use the following steps when connecting an optional
auxiliary power supply to the CellComRT:
1. Connect the Red wire (auxiliary Power) to
the top CellComRT J22 terminal position 'R'
and to the DC positive terminal (+) of the
power supply. See Figure 3.
2. Connect the Black wire (ground) to the
bottom CellComRT J22 terminal position and
to the DC negative terminal (-) of the power
supply and to the LX header (J22) on the
XR100/XR500 Series panel. See Figure 3.
Connecting the Optional Plug-in Transformer
When using an optional Model 376 plug-in DC power supply,
mount the CellComRT near a wall outlet. Use the following steps
to connect the plug-in power supply to the CellComRT:
1. Remove the barrel connector from the 376 power supply.
2. Connect the plug-in power supply Black wire with White
stripes to the top CellComRT J22 terminal position 'R'.
See Figure 4.
3. Connect the plug-in power supply solid Black wire to
the bottom CellComRT J22 terminal position and to the
LX header (J22) on the XR100/XR500 Series panel. See
Figure 4.
4. Plug the power supply into a 110 Volt AC outlet not
controlled by a switch.
Programming/Activation
Cellular Service is required before using the CellComRT for signal transmission. Using Remote Link panel
communication programming, select CELL as one of the Communication paths. The CellComRT comes with a SIM
card ready for activation with SecureCom Wireless, LLC. More information is available at www.securecomwireless.
com or refer to the Remote Link Guide (LT-0565). Or, use a SIM card provided by the GPRS carrier of your choice.

LED Indicator

The CellCom Green Transmit LED light flashes when transmission is being made between the CellComRT and the
panel.
Diagnostics
The XR100/XR500 Series panels provide a Diagnostics function to test Communication integrity and the Cellular
Signal strength of the CellComRT. To use Diagnostics, reset the panel, enter the Diagnostics code 2313 (DIAG), and
press COMMAND.
Communication Status
Select COMM STATUS from the Diagnostics menu. The XR100/XR500 panels test the CellComRT for the following
items:
• CellCom Operating
• SIM Card Installed
Cellular Signal
Select CELL SIGNAL from the Diagnostics menu. The XR100 and XR500 Series panels test and indicate the strength
of the signal using a bar display. One bar indicating a weak signal. Seven bars indicating a strong signal. If the bars
indicates a weak signal, options to correct this problem include relocating the CellComRT assembly or extending the
CellComRT antenna coax using a Model 381 Coax Extension.
Digital Monitoring Products
2
• Cellular Tower Detected
• SIM Card Registered/Active
502-12 Power Supply
Green
Red
LED
LED
J2
J3
AC
DC
+ BAT –
AC
To LX Header (J22) on
XR100/XR500 panel

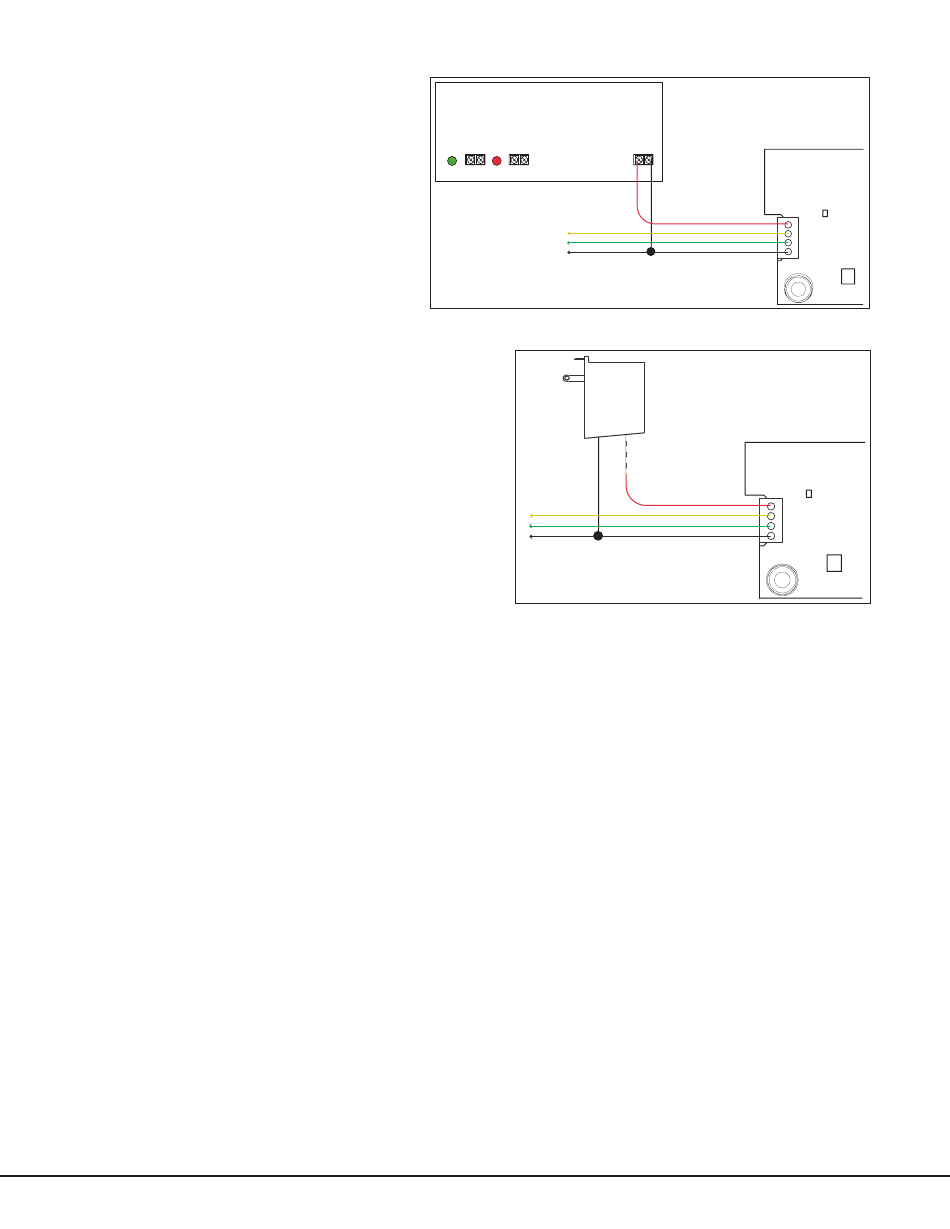

Figure 3: Optional Auxiliary Power Supply Installation
376
DC Plug-in
Power
Supply
Solid
Black
Wire
To LX Header (J22) on
XR100/XR500 panel
Figure 4: Optional Plug-in Transformer Installation
• APN (Access Point Name) Correct
• Communication Path Integrity
J5
CellComRT
+ DC –
J22
Red—Auxiliary Power
Yellow—Data In
Green—Data Out
Black—Ground
Black Wire with
CellComRT
White Stripes
J22
Red—Auxiliary Power
Yellow—Data In
Green—Data Out
Black—Ground
CellCom Installation Guide
Transmit LED
Battery
J4
Transmit LED
Battery
J4
