A.2. Connector Specifications

DB15 Connector

This provides DB15 connectivity for the HPT102 with a DB9 for connection to a PC/CE Device
for configuration.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

External Antenna RF Connector

The external antenna connector type is a BNC RF connector AEP Connectors p/n 6501-7051-003.
40

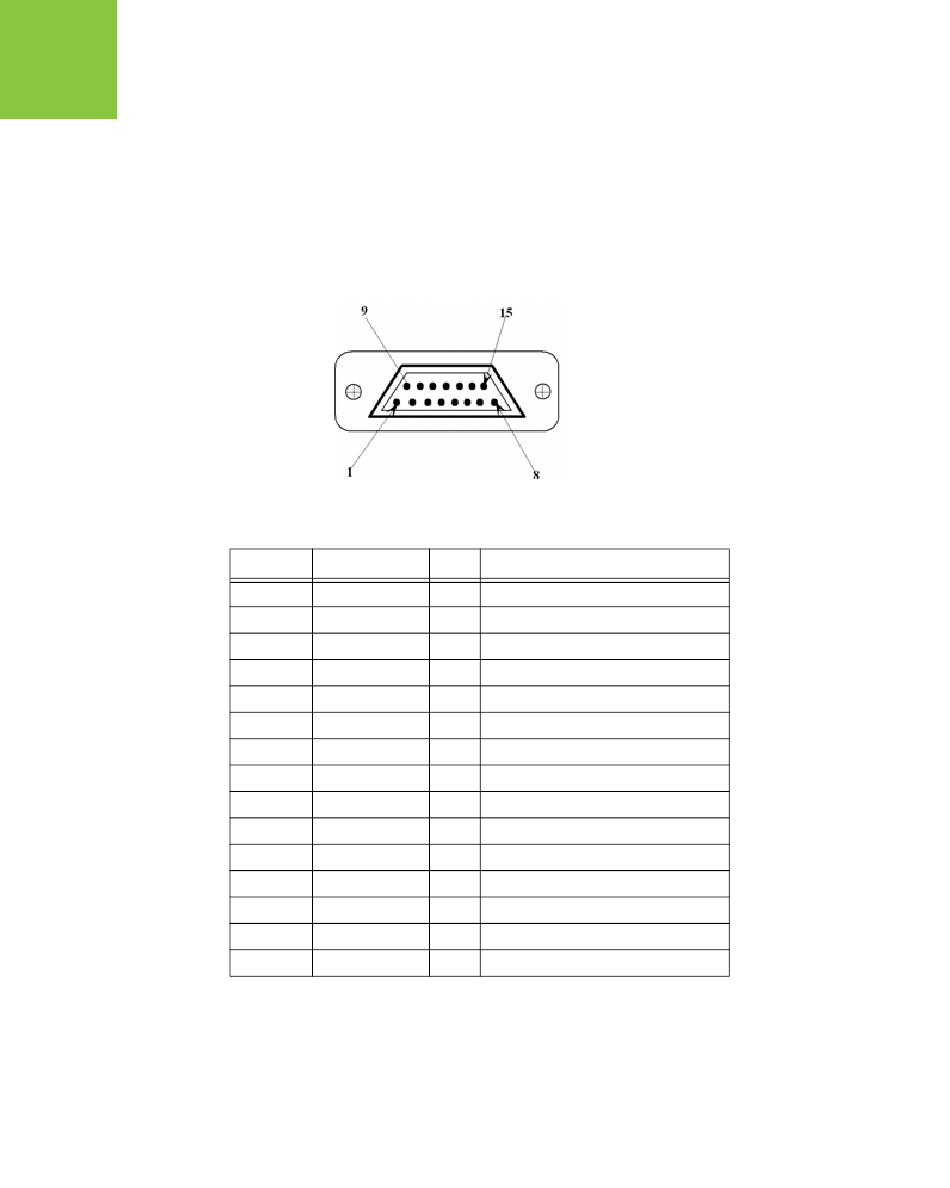

Figure A-1. DB15 Connector
Table A-5. Power Connector Specifications
Number Signal Name
DCD
DSR
RTS
DATAIN
Reserved
Reserved
Reserved
PWRIN
DTR
CTS
DATAOUT
Reserved
Reserved
Reserved
GND
Dir Details
O Data Carrier Detect
O Data Set Ready
I Request To Send
I Data from PC Serial Port to Modem
Do not use
Do not use
Do not use
DC Power between 9 and 16 VDC
I Data Terminal Ready
O Clear To Send
O Data from Modem to PC Serial Port
Do not use
Do not use
Do not use
DC Power and Signal to Ground
