Configuration

Connecting HPT102 and TRIUMPH-1

Power supply requirements
2.5. Connecting HPT102 and TRIUMPH-1
Connect the external HPT102 VHF radio to receiver's port B with cable Access Data-Ser-Pwr
Cable, ODU-7/DB15/SAE (6 ft./1,8m), p/n14-578110-02.
Note:
The TRIUMPH-1 port B is optional. Make sure you have such option purchased.

2.6. Configuring HPT102

1. Connect the computer and HPT102, as described in "Connecting HPT102 and Computer"
on page 19. Turn on the HPT102.
2. Start ModemVU.
20
+

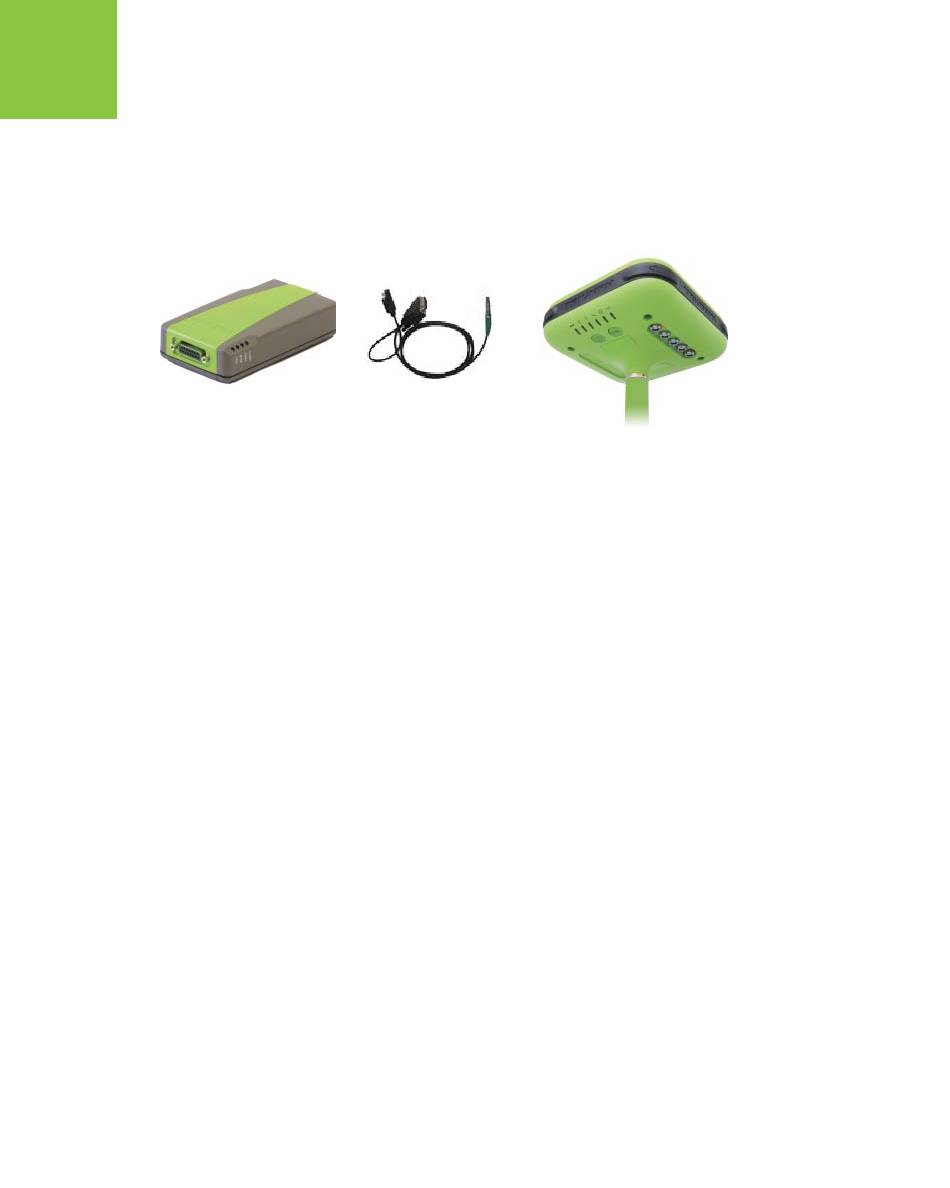

Figure 2-3. Connecting HPT102 and TRIUMPH-1
+
