C
ONFIGURATION

2.1. Powering HPT 102

You can use the rechargeable battery or power supply with SAE connector and Access Data-Ser-
Pwr Cable, DB9/DB15/SAE (1,8m), p/n14-578108-02 or Access Data-Ser-Pwr Cable, ODU-7/
DB15/SAE (1,8m), p/n14-578110-02.

2.1.1. Power supply requirements

The socket-outlet shall be installed near the equipment and shall be easily accessible.
A single external power supply is necessary to operate HPT102. The external power supply needs
to be Listed for US and Certified for EU countries, it needs also to be a Limited Power Source and
rated for Outdoor Use and have an output rated for +9 to +16 V, 2A. This may not be the same
range as other JAVAD GNSS products with which you are familiar.
C : To avoid the introduction of hazards when operating and installing, before connecting of the
AUTION
equipment to the supply, make sure that the supply meets local and national safety ordi-
nances and matches the equipment's voltage and current requirements.
C : Never attempt any maintenance or cleaning of the supply while plugged in. Always remove
AUTION
supply from AC power before attempting service or cleaning.
Warning: If the voltage supplied is below the minimum specification, the radio will suspend operation. If the
voltage supplied is above the maximum specification, the radio may be permanently damaged,
voiding your warranty.
www.javad.com

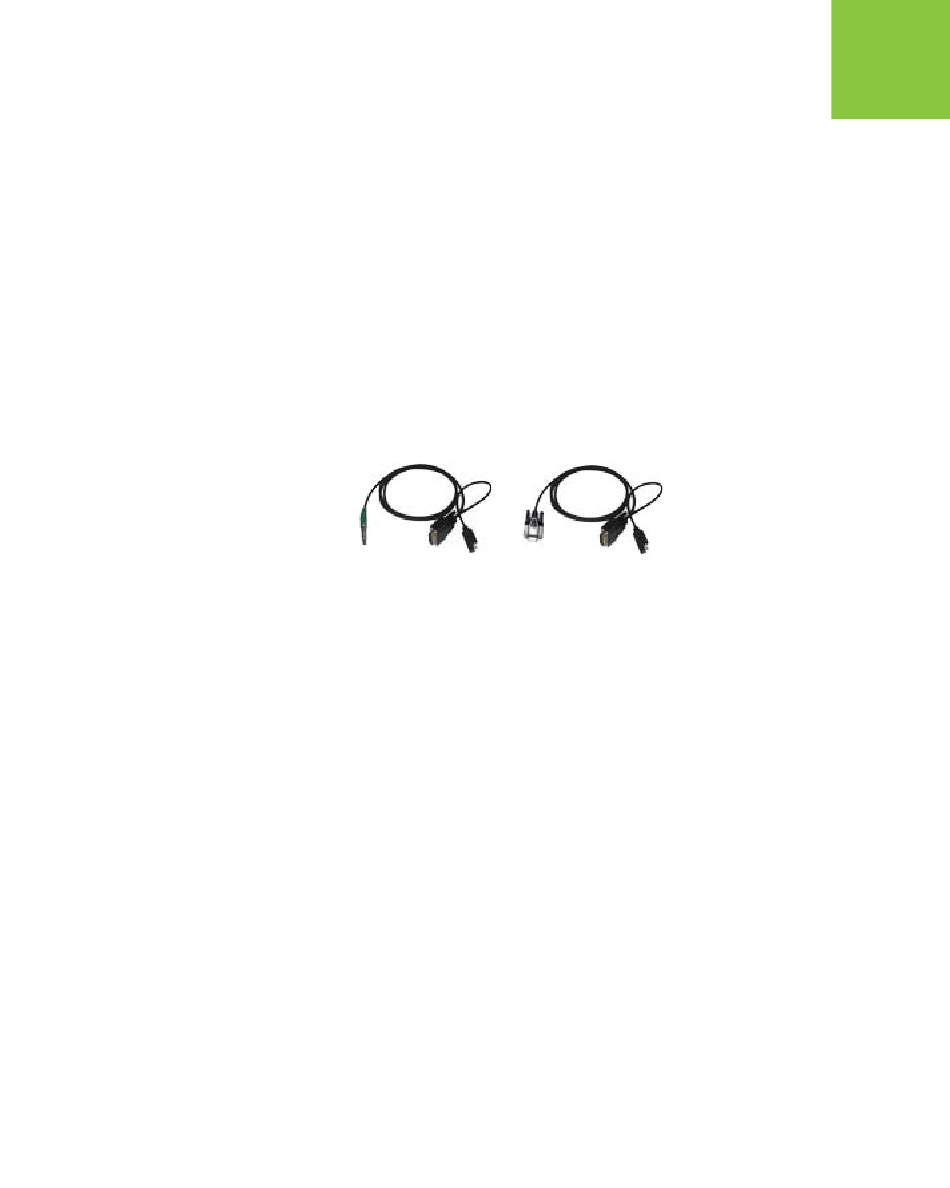

Figure 2-1. Access Data-Ser-Pwr Cables
