Advantech ADAM-3952/PMA Quick Start Manual

ADAM-3952/PMA Panasonic Minas A Series
Introduction
The ADAM-3952/PMA terminal board provides
convenient and reliable signal wiring for PCI-1240/
PCM-3240. Its 50 pin SCSI ribbon type connectors
give you the quick and easy way to connect to the
Panasonic Minas A series motors.
Features
Feature
• Low-cost terminal board for PCI-1240/ PCM-
3240 with 100-pin SCSI-II connector.
• 50 pin SCSI ribbon type connectors for easy
connection to Panasonic Minas A motors
• Onboard LED indicator
• Industrial-grade screw-clamp terminal blocks for
heavy-duty and reliable connections.
• DIN-rail mounting case for easy mounting.
• Dimensions (W x L x H):121 x 202 x 45mm
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residen-
tial area is likely to cause harmful interference in which
case the user will be required to correct the interference at
his own expense.
CE
This equipment is CE certified.
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com.tw/eservice
This manual is for ADAM-3952/PMA.
Part No: 2003395210 (1st Ed)
1 Startup Manual
(4.76" x 7.95" x 1.77")
October 2006

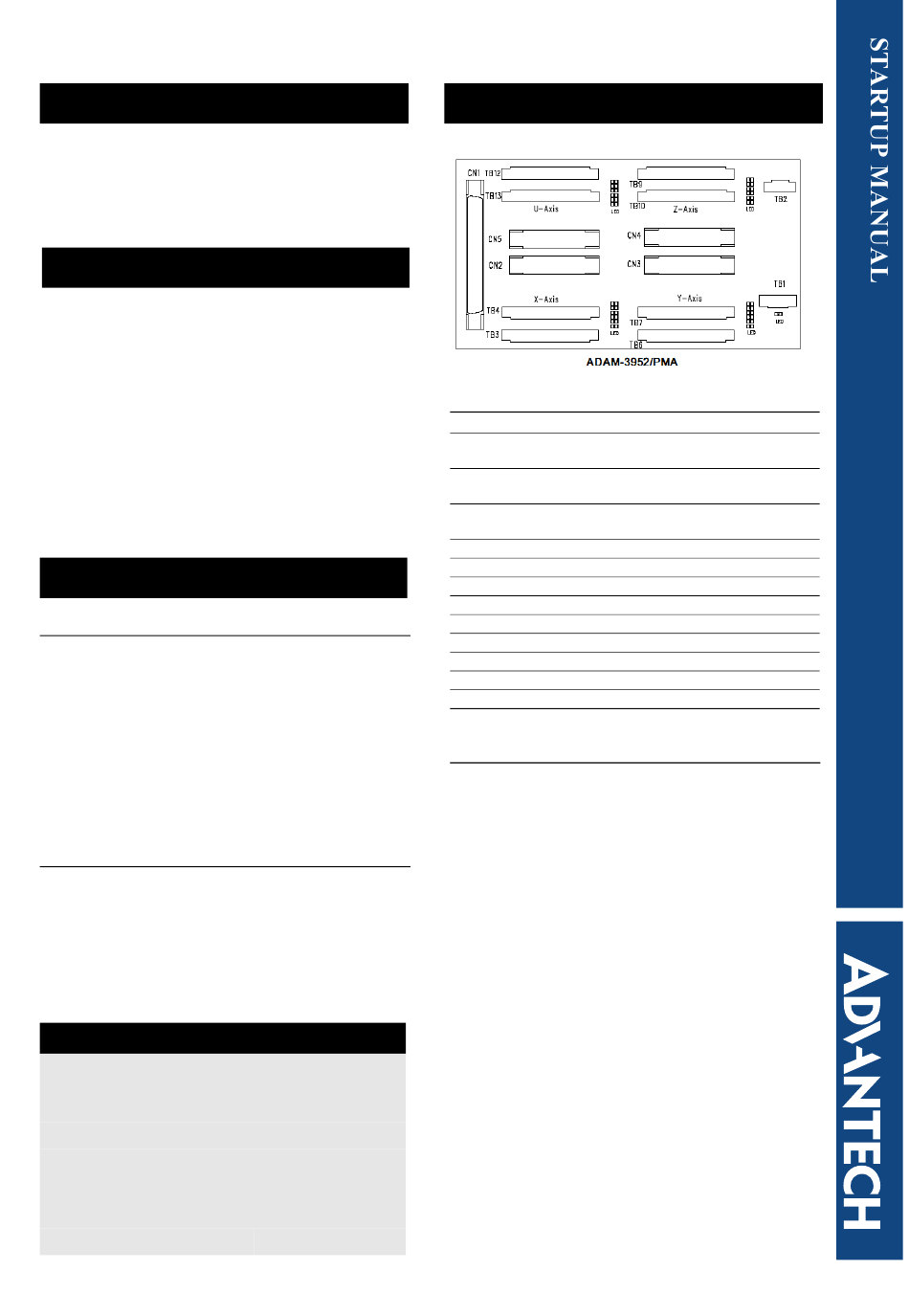

Board Components
Slot Description
CN1: 100-pin SCSI-II connector for connection
with PCI-1240U/PCM-3240
TB1: Detachable screw terminal for emergency
signal
TB2: Detachable screw terminal for ADAM-3952/
PMA power source
TB3~TB4: Detachable screw terminal for X-axis wiring
TB6~TB7: Detachable screw terminal for Y-axis wiring
TB9~TB10: Detachable screw terminal for Z-axis wiring
TB12~TB13: Detachable screw terminal for U-axis wiring
CN2: 50 pin SCSI ribbon type connector for X-axis
CN3: 50 pin SCSI ribbon type connector for Y-axis
CN4: 50 pin SCSI ribbon type connector for Z-axis
CN5: 50 pin SCSI ribbon type connector for U-axis
LED: LED status display
Optional Cables
• PCL-101100M-1: SCSI-100 Shielded Cable, 1m
• PCL-101100M-3: SCSI-100 Shielded Cable, 3m
• PCL-10150M-2: SCSI-50 Shielded Cable, 2m
