IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

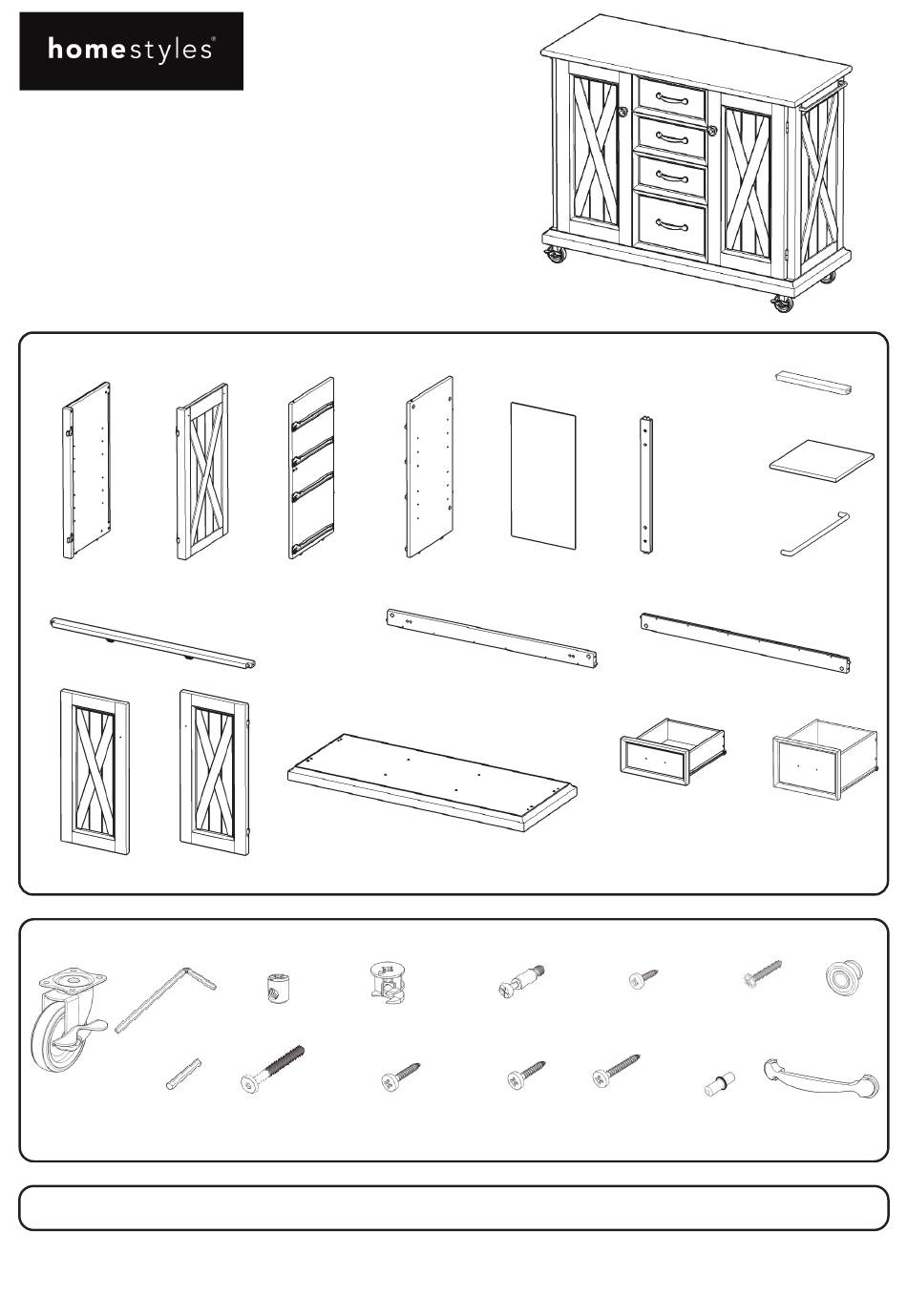

Part List
A.
B.
Side Panel
Side Panel
1 pc.
1 pc.
J.
Front Rail
1 pc.
M.
N.
Door
Door
1 pc.
1 pc.
Hardware List
Hex Wrench
1 pc.
Caster
2 Locking
Small
Hex Wrench
2 Non-Locking
1 pc.
4 pcs.
20 09100 Top carton is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05523 0095

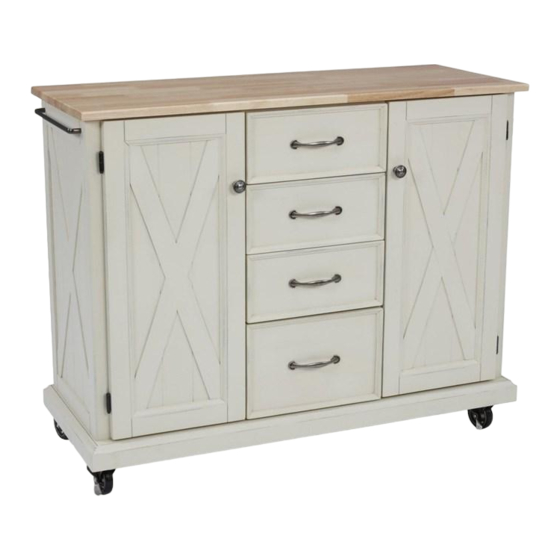

Kitchen Cart
C.
D.
Middle Panel
Middle Panel
1 pc.
1 pc.
K.
Back Rail
1 pc.
O.
Base
1 pc.
Cross Dowel
Cam Lock
4 pcs. (+1 extra)
14 pcs. (+2 extra)
M4x16
M6x50
Wood Screw
for Caster
Head Cap Bolt
4 pcs. (+1 extra)
16 pcs. (+1 extra)
E.
Back Panel
3 pcs.
L.
Back Rail
1 pc.
P.
Drawer
3 pcs.
M3.5x13
Cam Lock Screw
Wood Screw (short)
16 pcs. (+1 extra)
14 pcs. (+1 extra)
M3.5x16
Wood Screw
M3.5x25
for Back Panel
Wood Screw (long)
12 pcs. (+1 extra)
32 pcs. (+1 extra)
888-680-7460, 877-831-0319
G.
Front Rail
1 pc.
H.
Shelf
4 pcs.
F.
I.
Back Upright
Side Bar
2 pcs.
2 pcs.
Q.
Drawer
1 pc.
Refer to later page(s) of these
instructions for drawer assembly.
M4x20
Machine Screw
14 pcs.
Adjustable Pin
16 pcs. (+2 extra)
Knob
2 pcs.
Handle
4 pcs.
Advertisement
Related Manuals for Homestyles 20 05523 0095
Summary of Contents for Homestyles 20 05523 0095
- Page 1 16 pcs. (+1 extra) 12 pcs. (+1 extra) 32 pcs. (+1 extra) 16 pcs. (+2 extra) 4 pcs. 4 pcs. 20 09100 Top carton is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/10 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/10 STEP 2 Attach Front Rail (J) and Back Rail (K) to Side Panel (B) with Cam Locks. (See Figure 2) Cam Lock Figure 2 Cam Lock STEP 3 Attach Back Upright (F) to Middle Panel (D) with Cam Locks, then attach to unit with Cam Lock.
- Page 4 Assembly Instructions 4/10 Cam Lock STEP 4 Attach Front Rail (G) to unit with Cam Lock. Attach Back Upright (F) to Middle Panel (C) to unit with Cam Locks, then attach to unit with Cam Locks. STEP 5 Slide Back Panels (E) into position.
- Page 5 Assembly Instructions 5/10 Cam Lock STEP 6 Attach Back Rail (L) to unit with Cam Lock. Attach Side Panel (A) to unit with Cam Locks. Head Cap Bolt Cross Dowel STEP 7 Arrow label Attach Base (O) to unit with Cross Dowels and Head Cap Bolts.
- Page 6 Assembly Instructions 6/10 STEP 8 Wood Screw for Caster Attach Casters to unit with Non-Locking Caster Wood Screws for Caster into Locking Caster pre-drilled holes, with Locking Casters at front. Arrow label (See Figure 4) Note: Arrow label indicates front of unit.
- Page 7 Assembly Instructions 7/10 Machine Screw Knob Machine Screw Head Cap Bolt (middle) Adjustable Pin STEP 10 Insert Adjustable Pins into side panels and middle panels at desired level. Place Shelves (H) into position. Attach Doors (M) and (N) by sliding door hinges into side panel hinges. (See Figure 5) Attach Knobs to Doors (M) and (N) with Machine Screws.
- Page 8 Assembly Instructions 8/10 Drawer (P) Wood Screw (long) Bottom STEP 11 Attach Drawer Front (P1) and Drawer Back (P2) to Drawer Side (P3) with Wood Screws (long). Roller at back Attach Drawer Side (P4) to unit with Wood Screws (long). STEP 12 Wood Screw (short) Slide Drawer Bottom (P5) into groove.
- Page 9 Assembly Instructions 9/10 Drawer (Q) Wood Screw (long) Bottom STEP 14 Attach Drawer Front (Q1) and Drawer Back (Q2) to Drawer Side (Q3) with Wood Screws (long). Roller at back Attach Drawer Side (Q4) to unit with Wood Screws (long). STEP 15 Wood Screw (short) Slide Drawer Bottom (Q5) into groove.
- Page 10 Assembly Instructions 10/10 Head Cap Bolt (middle) STEP 17 Attach Top (W) to unit with Head Cap Bolts (middle). Slide Drawers (P) and (Q) into position.
- Page 11 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
