JCROffroad 6TH GEN BRONCO Install Instructions

Pinch weld covers

Hide thumbs Also See for 6TH GEN BRONCO:

Download this manual

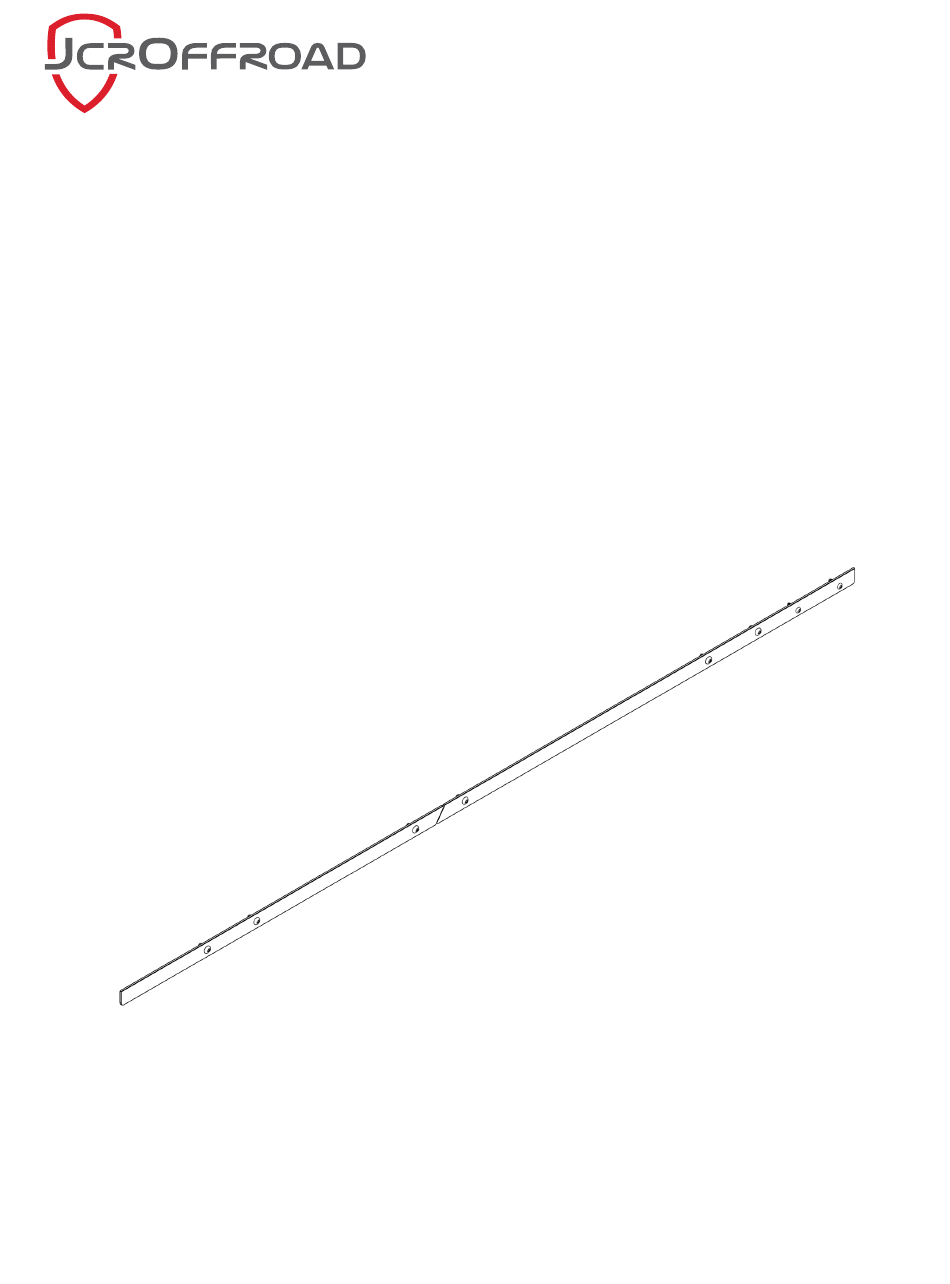

6TH GE N BRON CO

PI N C H WEL D COVER S

IN S TAL L I NSTRU C TIO NS

Please read the mounting instructions below carefully before attempting to install.

Be sure to check out the install video on the product page, if available.

Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road

products. Be sure to rate and review our product online. If you have any questions or are missing parts, please

don't hesitate to call us at 269-353-1184!

Page 1 Be sure to check out the install video on the product page, if available. Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road products. Be sure to rate and review our product online. If you have any questions or are missing parts, please...
Page 2 INCLUD ED HARDWAR E 4 DOOR 2 DOOR 5/16”-18 X 3/4" 5/16”-18 X 3/4" Button Head Button Head 25mm M6 25mm M6 Button Head Button Head 5/16”-18 5/16”-18 Serr. Flange Nut Serr. Flange Nut...
Page 3 INCLUD ED PARTS INCLUD ED PARTS 4 DOOR 2 DOOR...
Page 4 A SS E M B LY To start, remove the two bolts in the front of the pinch seam on both sides of the vehicle. To install, simply place the metal plates onto the outside of the pinch seam and bolt them on using the provided hardware. The M6 bolts go in the two front most holes that you removed the factory bolts from.
