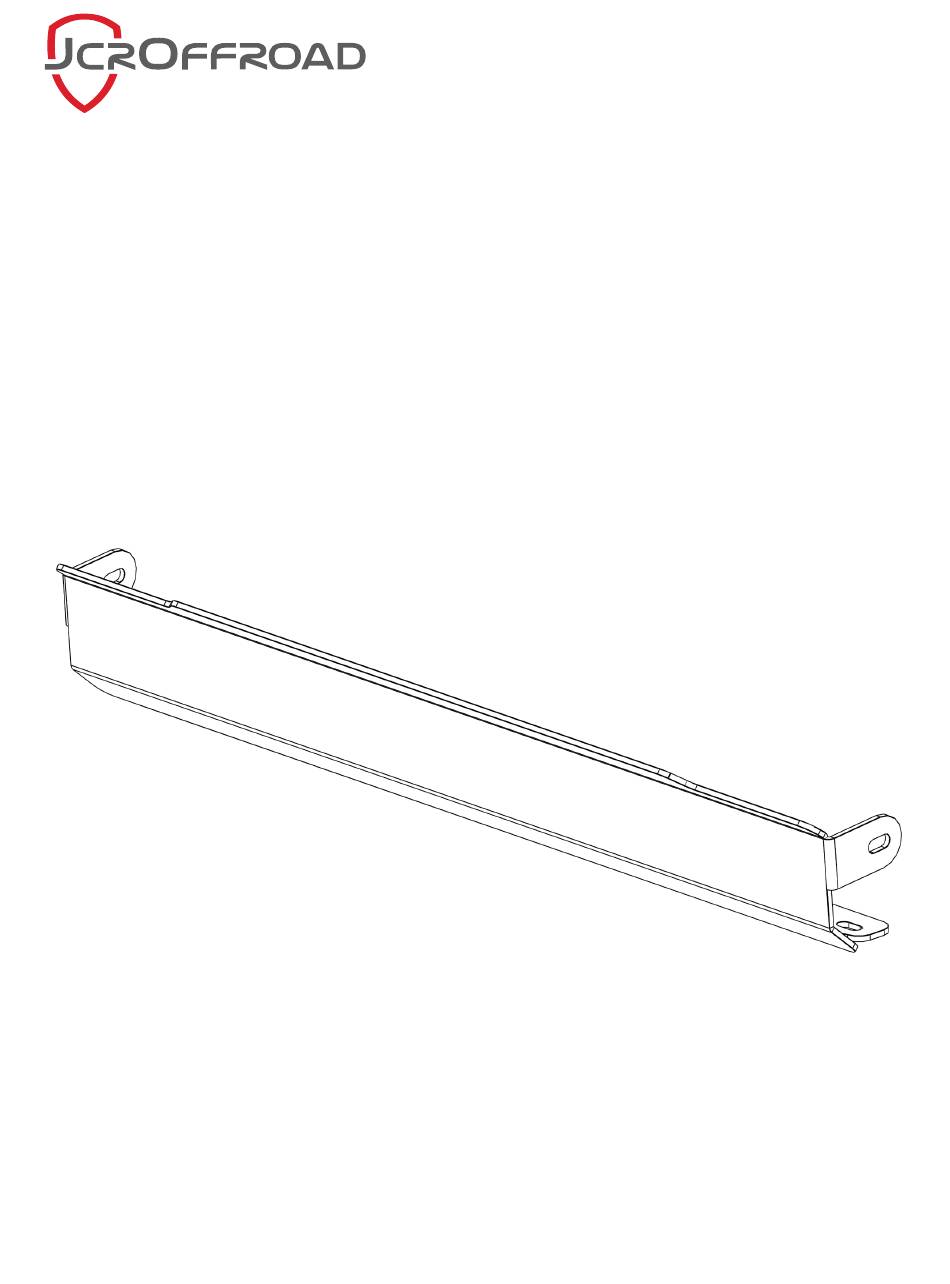

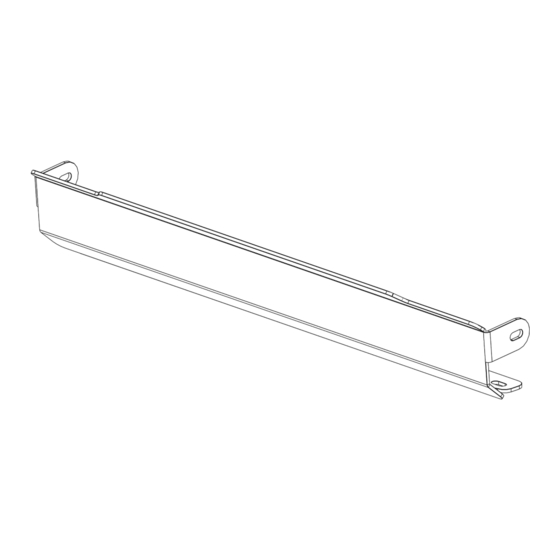

JEEP W RA NG L ER JK

LOW E R SK I D

INS TAL L I NSTRUC T ION S

Please read the mounting instructions below carefully before attempting to install.

Check out the install video on the product page if available.

Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road

products. Be sure to rate and review our product online. If you have any questions or are missing parts, please

don't hesitate to call us at 269-353-1184!

Page 1 Check out the install video on the product page if available. Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road products. Be sure to rate and review our product online. If you have any questions or are missing parts, please...
Page 2: In C Lu D E D Hardwar E
IN C LU D E D HARDWAR E 3/8”-16 3/8”-16 Flange Nut Button Head Note: Some Victory 4x4/JCR Offroad/SquatchProof products share hardware kits. Any extra hardware you may recieve that is not listed above can be reurposed or discarded.
Page 3: Included Parts
I NCLU D E D PARTS...
Page 4 A SS E MB LY To start, you may have to remove your factory plastic skid if your Jeep is equiped with one. If you do not have a skid or once it is out of the way, take the provided skid and 3/8” button heads and nuts and assemble to the frame as shown in the oriantation below (view from behind) through the holes in the side of the skid.
Page 5 A SSE MBLY Once the side bolts are hand tight, you will need to use the (2) other provided 3/8“ button heads and nuts and assemble up through the bottom of the skid into the frame through the (2) slots, as shown in the orientation below.
Page 6 A S SE MB LY Now that your skid is in place with all of the hardware started, you can now go around and fully tighten all of it down to finish your install.
