Tennant M17 Instruction Bulletin

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 9017320

SYNOPSIS:

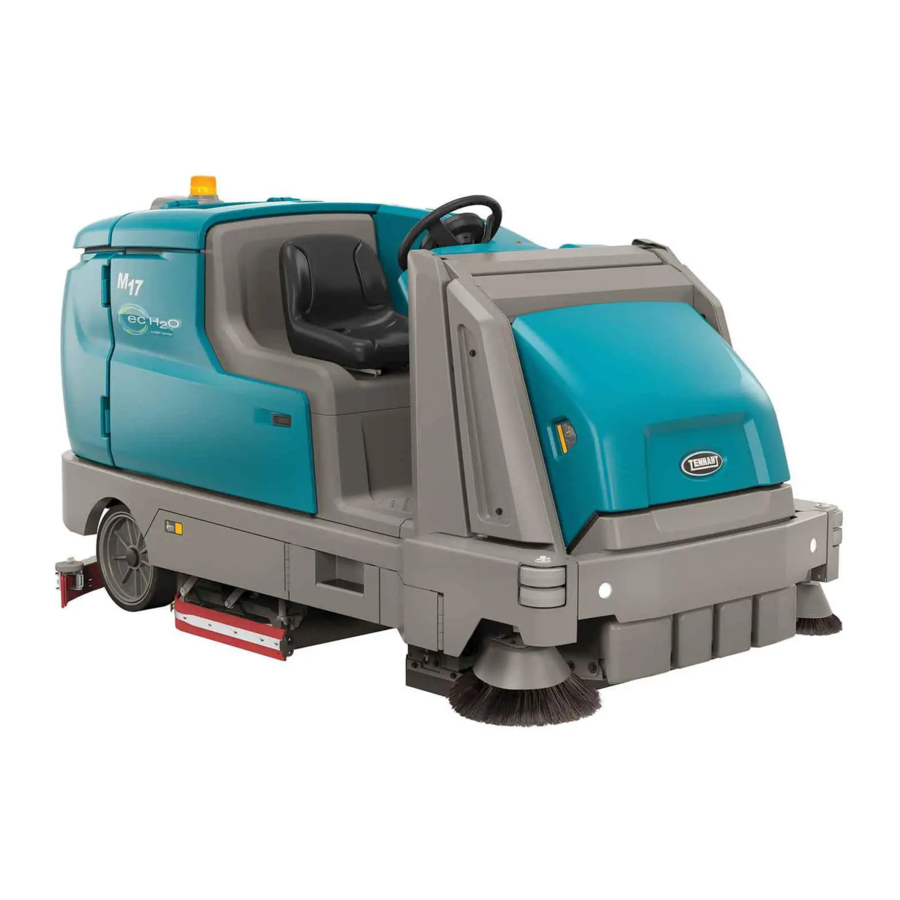

This kit contains the parts needed to install the left brush cover panel onto M17 machines.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 20 minutes)

PREPARATION:

1. Remove the packaging material from the
machine and move the machine from the
shipping skid.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, set parking brake, and remove key.

INSTALLATION:

1. Use the two M8 hex screws (2) and two flat
washers (3) to install the left brush cover
panel (1) onto the machine. (Fig. 1)
IB 9014969 (05- 2016)

PROTECT THE ENVIRONMENT

Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
No. 9014969
Machine: M17
Published: 05- 2016
Rev. 00
