Tennant T17 Instruction Bulletin

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9020103

SYNOPSIS:

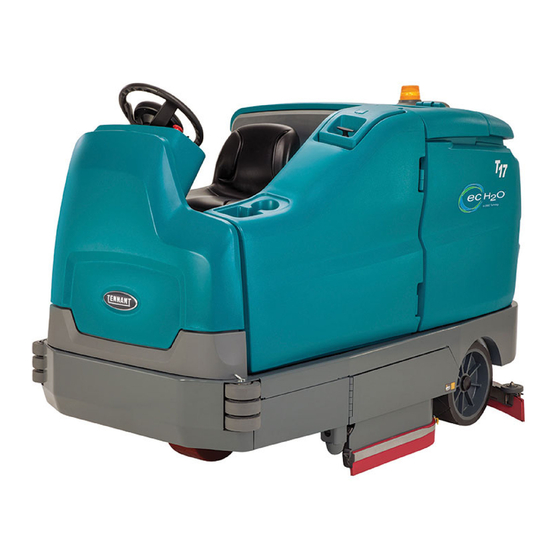

This kit contains the parts needed to install a deluxe seat kit onto T17 scrubbers /
M17 sweeper- scrubbers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 1 hour)

PREPARATION:

1. Park the machine on a clean level surface,
turn off the machine, set the parking brake,
and remove the key.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
2. Disconnect the battery cable from the
machine.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
3. Remove the battery from the machine.
FOR SAFETY: When servicing machine, use a
non- conductive battery removal device, use a
hoist and adequate assistance when lifting
batteries, follow site safety guidelines
concerning battery removal, and battery
installation must be done by trained
personnel.
IB 9012972 (05- 2016)

PROTECT THE ENVIRONMENT

Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.

INSTALLATION:

1. Disconnect the main wire harness from the
seat switch.
2. Remove the upper platform from the machine.
Set all mounting hardware aside. (Fig. 1)
3. Remove the existing seat from the machine.
Discard the seat, both slide tracks, and all
mounting hardware. (Fig. 1)
No. 9012972
Machine: T17 / M17
Published: 05- 2016
Rev. 01
1
