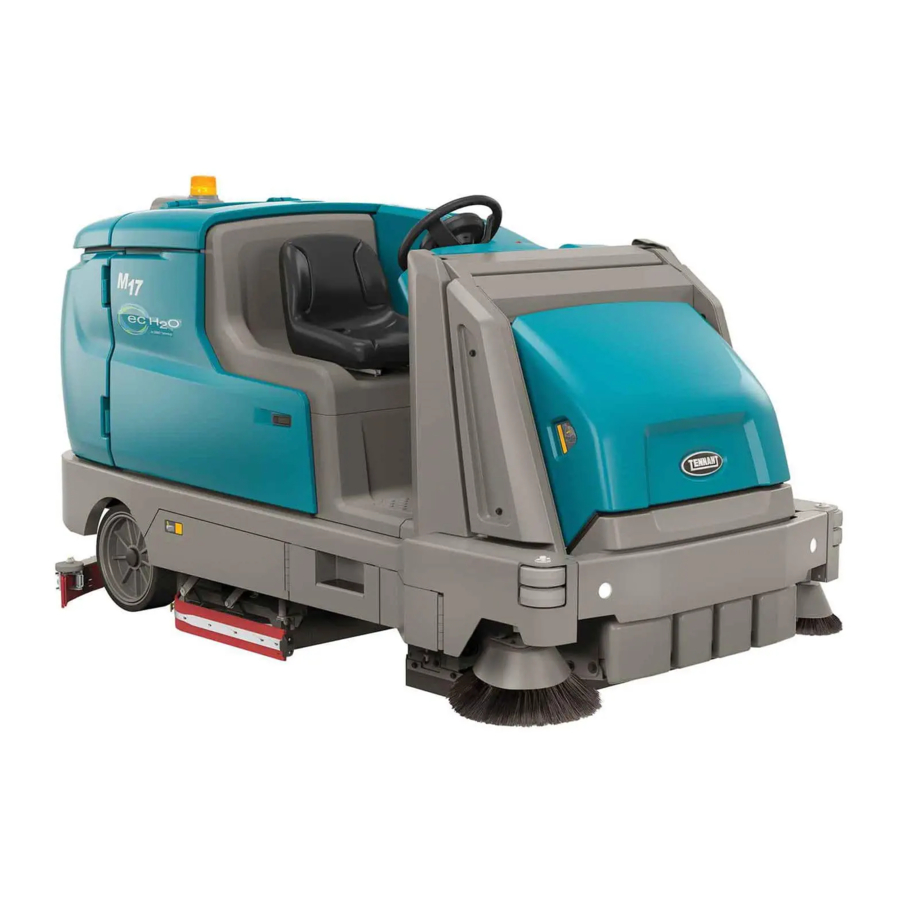

Tennant M17 Instruction Bulletin

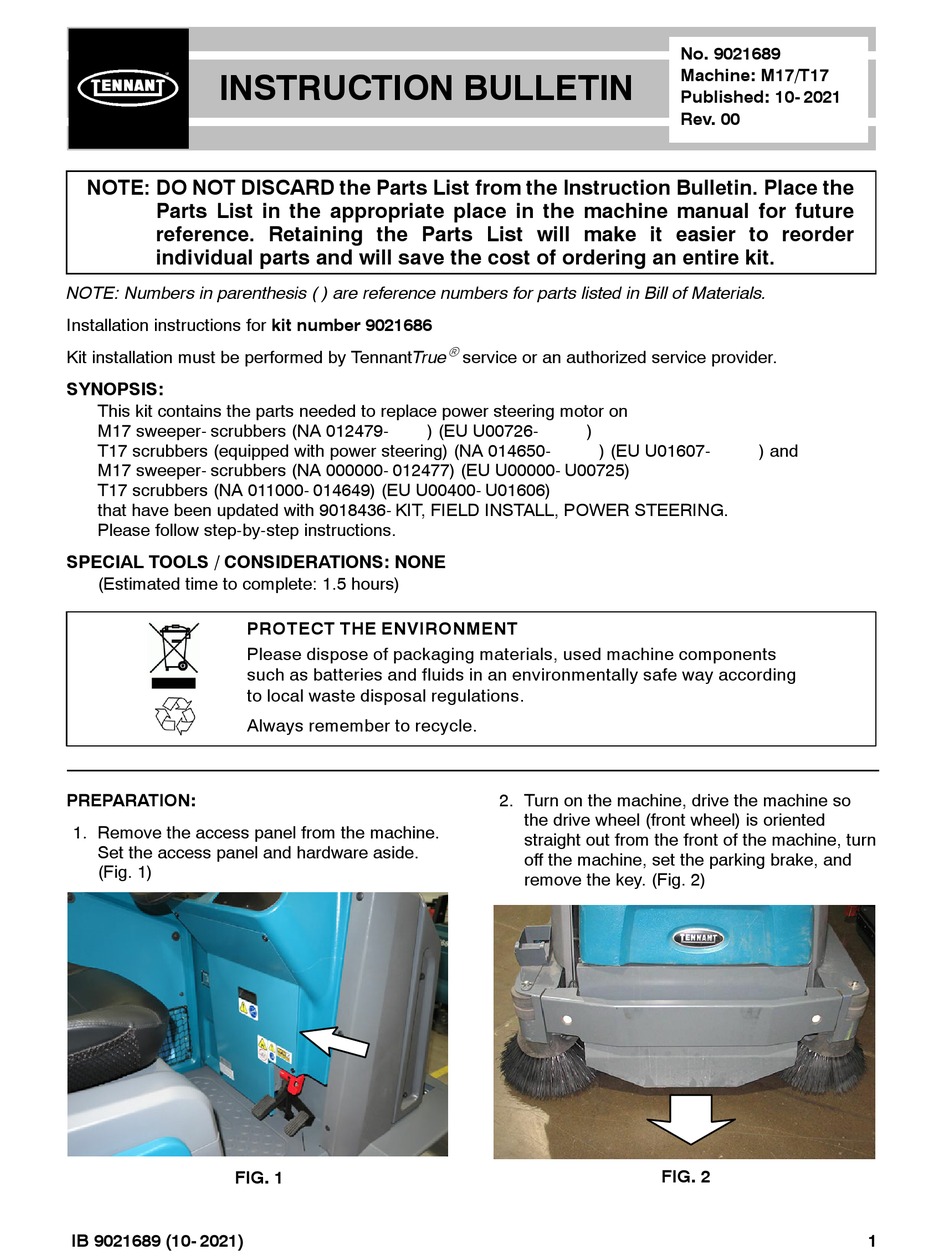

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9021686
Kit installation must be performed by TennantTrue
SYNOPSIS:
This kit contains the parts needed to replace power steering motor on
M17 sweeper- scrubbers (NA 012479-
T17 scrubbers (equipped with power steering) (NA 014650-
M17 sweeper- scrubbers (NA 000000- 012477) (EU U00000- U00725)
T17 scrubbers (NA 011000- 014649) (EU U00400- U01606)
that have been updated with 9018436- KIT, FIELD INSTALL, POWER STEERING.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 1.5 hours)
PREPARATION:
1. Remove the access panel from the machine.
Set the access panel and hardware aside.
(Fig. 1)
FIG. 1
IB 9021689 (10- 2021)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.

service or an authorized service provider.
) (EU U00726- )
) (EU U01607-
2. Turn on the machine, drive the machine so
the drive wheel (front wheel) is oriented
straight out from the front of the machine, turn
off the machine, set the parking brake, and
remove the key. (Fig. 2)
No. 9021689
Machine: M17/T17
Published: 10- 2021
Rev. 00
) and
FIG. 2
