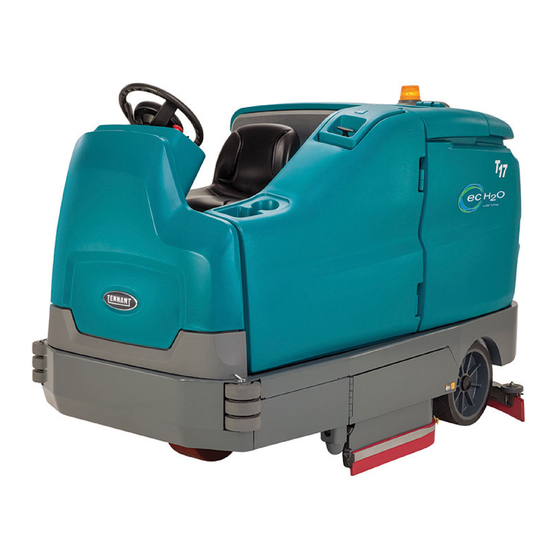

Tennant T17 Instruction Bulletin

Hide thumbs Also See for T17:

Advertisement

Quick Links

Download this manual See also: Operator's Manual, Instruction Bulletin
INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9013267 (T17 machines NA serial numbers 000000- 010999 /
EU serial numbers 0000- 0330) / 9014997 (T17 machines NA serial numbers 011000-
serial numbers 0400-
SYNOPSIS:
This kit contains the parts needed to replace the steering transmission on T17 scrubbers / M17
sweeper- scrubbers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: 10mm ball & hex drive
(Estimated time to complete: 2 hours)
PREPARATION:
1. Empty the recovery tank and the solution tank
before jacking up the machine.
2. Park the machine on a clean level surface,
turn off the machine, set the parking brake,
and remove the key.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, set parking brake, and remove key.
3. Disconnect the battery cable from the
machine.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
4. Chock both rear tires.
IB 9020400 (07- 2016)
) (M17 All machines)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
No. 9020400
Machine: T17 / M17
Published: 07- 2016
Rev. 02
/ EU
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the T17 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tennant T17

Summary of Contents for Tennant T17

  • Page 1 / EU serial numbers 0400- ) (M17 All machines) SYNOPSIS: This kit contains the parts needed to replace the steering transmission on T17 scrubbers / M17 sweeper- scrubbers. Please follow step-by-step instructions. SPECIAL TOOLS / CONSIDERATIONS: 10mm ball & hex drive...
  • Page 2 5. Jack up the front end of the machine high enough to access the steering components and remove the steering components from under the machine. Place jack stands under the machine frame and lower the machine onto the jack stands. (Fig. 1) FIG.

  • Page 3: Installation

    INSTALLATION: 2. Machines with Standard Steering: Disconnect the steering shaft from the input NOTE: Use care when removing the drive wheel shaft. Set all hardware aside. (Fig. 3) and steering transmission from the machine. The drive wheel weighs approximately 140 lbs (64 kg) and the steering transmission weighs approximately 90 lbs (41 kg).
  • Page 4 M8 hex screw securing lower platform to machine FRONT FRONT M8 hex screw and flat washer securing steering channel to machine FIG. 5 4. Remove the M8 hex screw securing the steering channel to the machine and and the M8 hex screw securing the lower operator platform to the machine.
  • Page 5 Disconnect all and hardware aside harness connectors to harnessconnectors drive wheel aside from drive wheel T17 machines NA serial numbers (000000- 010999) / EU serial numbers (0000- 0330) FRONT P- clamp Set all hardware securing harness connectors to drive wheel aside...
  • Page 6 8. Loosen the four M12 socket screws securing 11. Remove the four previously loosened M12 the drive wheel to the steering transmission. socket screws. Set the M12 socket screws Do not remove the four socket screws. and flat washers aside. (Fig. 8) (Fig.
  • Page 7 Remove five M10 hex screws / flat washers securing back end of steering transmission to machine. Move sprocket as necessary to access hardware. Remove three M10 hex screws / flat washers securing front end of steering transmission to machine after securing steering transmission into place with a jack.
  • Page 8 18. Place the new steering transmission onto the 21. Remove the jack from underneath the jack, position the jack under the machine and machine. raise the steering transmission up to the 22. Use the five M10 hex screws / flat washers to frame of the machine.
  • Page 9 Steering transmission Machine frame Front drive wheel FRONT M12 socket screws and flat washers Torque the M12 socket screws to 124.7 Nm / 92 ft. lbs. (Qty 4 each) FIG. 12 24. Place the drive wheel onto the jack, slide the 27.
  • Page 10 29. Connect all wire harness connectors to the 34. Straighten the steering wheel. (Fig. 16) drive wheel. Arrange wire harness as shown. (Fig. 14 / Fig. 15) FIG. 16 35. Reinstall the M8 hex screw to secure the FIG. 14 steering channel to the machine and and the M8 hex screw to secure the lower operator platform to the machine.
  • Page 11 Bill Of Materials Tennant Part No. Ref. Description Qty. 9013267 Transmission Assy, Str, Afmkt [T17] Tennant Part No. Ref. Description Qty. 9014997 Transmission Assy, Str, Afmkt [T17 / M17] TENNANT COMPANY P. O. Box 1452 Minneapolis, MN 55440-1452 IB 9020400 (07- 2016)
