INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9015028
SYNOPSIS:

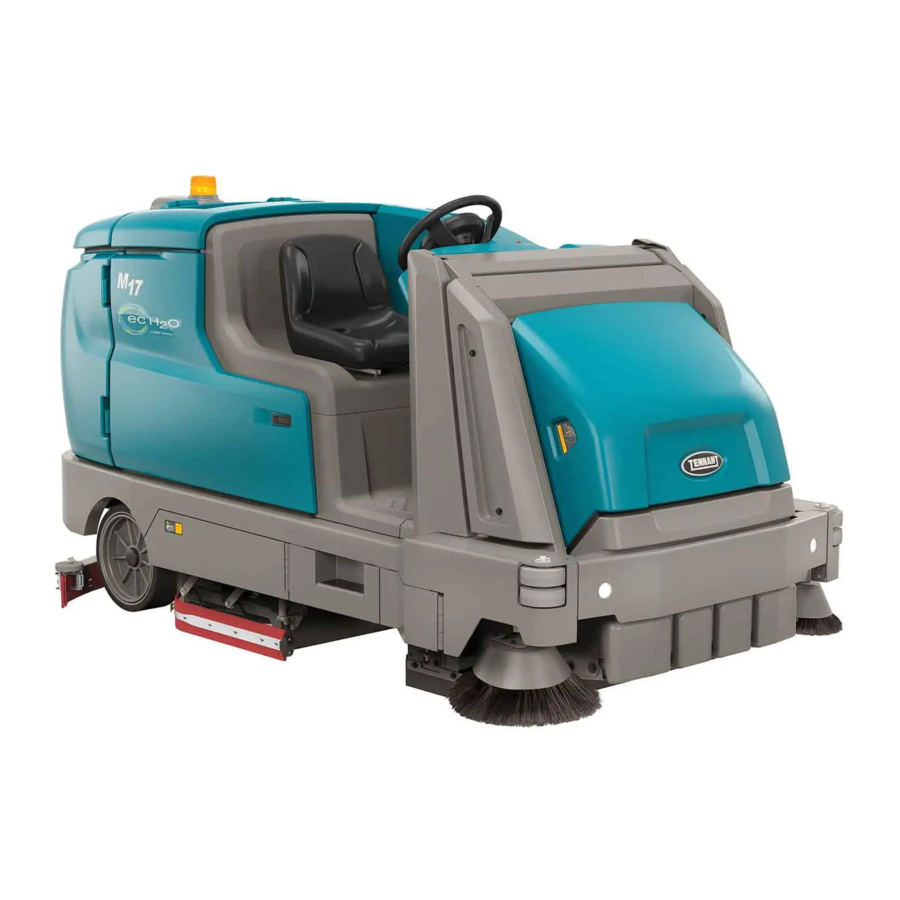

This kit contains the parts needed to replace the sweeping drive belt on M17 sweeper- scrubbers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 45 minutes)
PREPARATION:
1. Park the machine on a clean level surface,
turn off the machine, set the parking brake,
and remove the key.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, set parking brake, and remove key.
IB 9015099 (07- 2016)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
INSTALLATION:

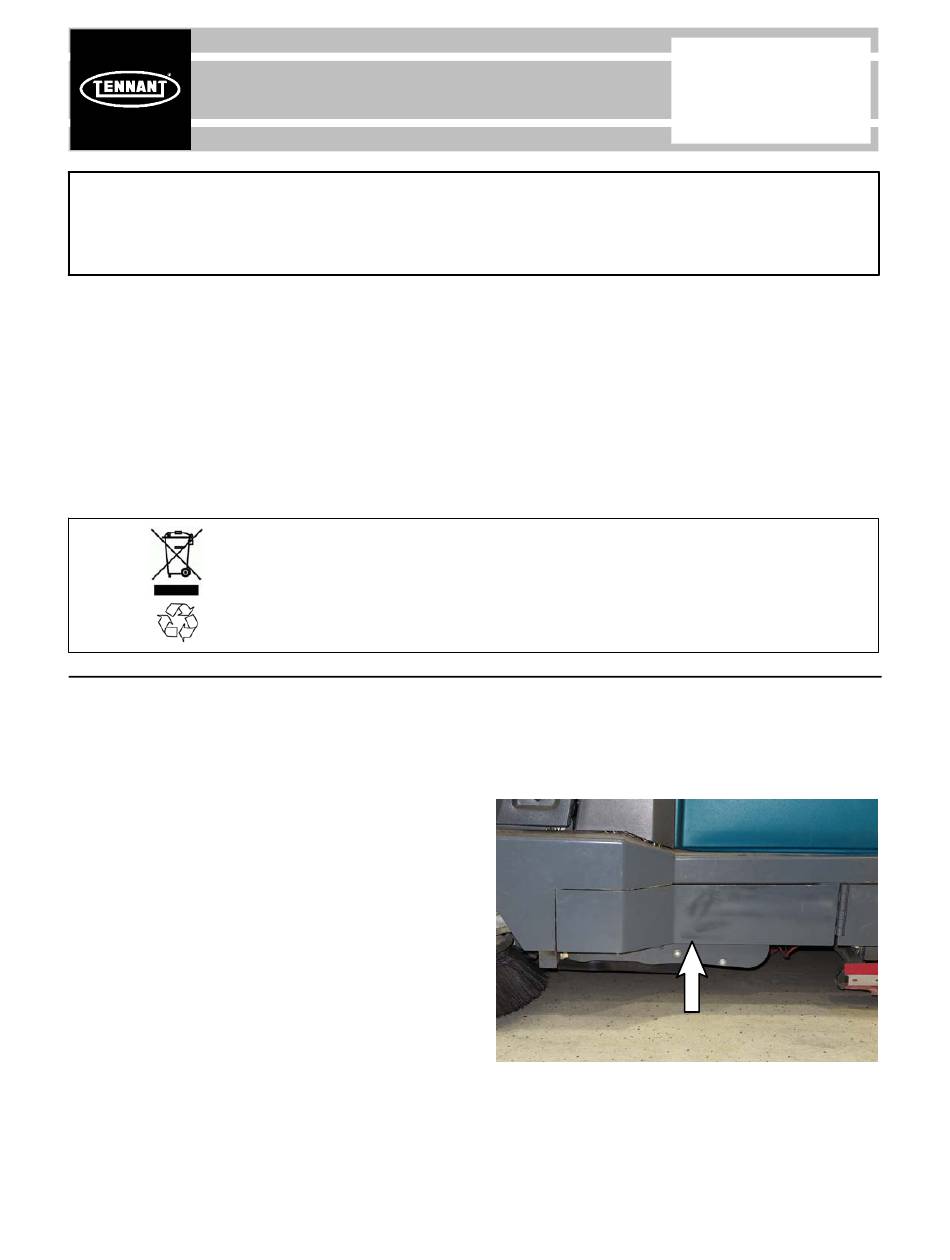

1. Remove the left brush panel from the
machine. Set the left brush panel and all
mounting hardware aside. (Fig. 1)
FIG. 1
No. 9015099
Machine: M17
Published: 07- 2016
Rev. 00
1
Advertisement
Related Manuals for Tennant M17
Summary of Contents for Tennant M17
- Page 1 NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials. Installation instructions for kit number 9015028 SYNOPSIS: This kit contains the parts needed to replace the sweeping drive belt on M17 sweeper- scrubbers. Please follow step-by-step instructions. SPECIAL TOOLS / CONSIDERATIONS: NONE...
- Page 2 2. Remove the sweeping drive belt cover from 5. Position the belt (1) onto the motor sheave the machine. Set the sweeping drive belt and then position the belt onto the belt cover and all mounting hardware aside. Fig. 2 installation tool (4).
- Page 3 Note: It is not necessary to remove sheaves from machine FRONT to install new belts (1) and (2) onto machine. Parts shown disassembled to better show location of parts on machine. Replace with new belt (2) Replace with Sweeping new belt (1) brush housing Sweeping brush drive plate...
- Page 4 12. Reinstall the sweeping drive belt cover onto the machine. (Fig. 7) 13. Reinstall the left brush panel onto the machine. FIG. 8 Bill Of Materials For Belt Kit, Swp, Afmkt [M17] - 9015028 Tennant Part No. Ref. Description Qty.
