INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

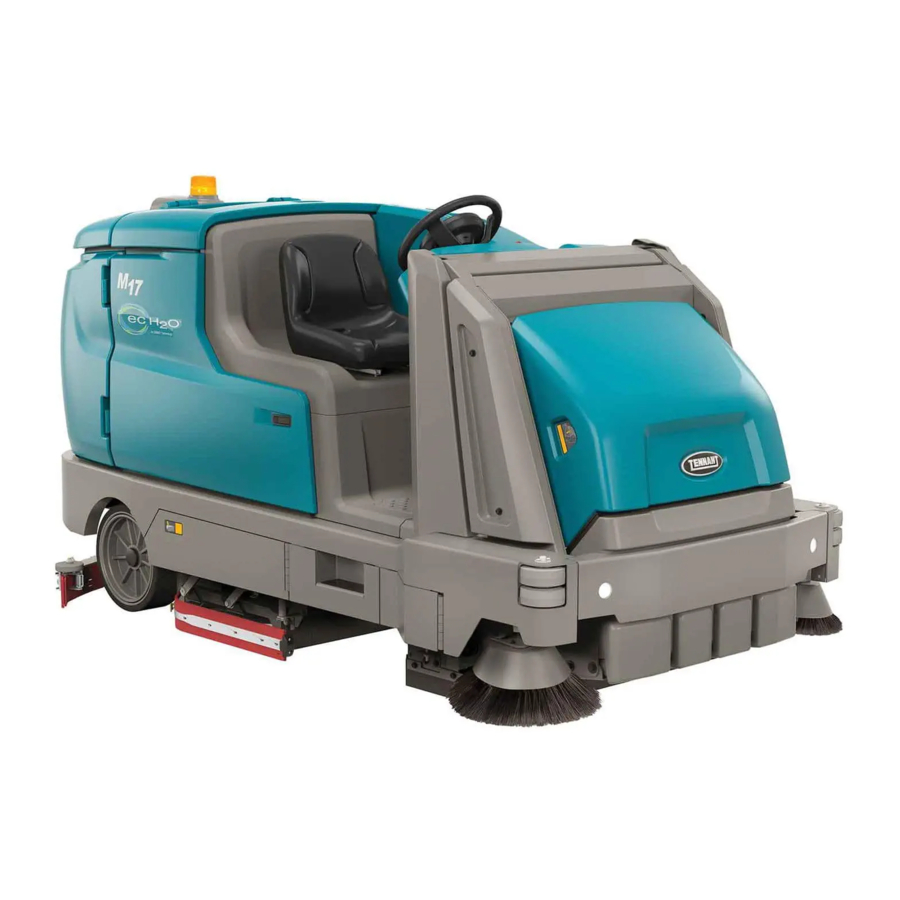

Installation instructions for kit number 9015041
SYNOPSIS:
This kit contains the parts needed to replace standard pod assembly on M17 sweeper scrubbers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 50 minutes)
PREPARATION:
1. If steering pod assembly on machine is
operable, connect service computer to the
pod, turn the key to the ON position, start the
Capture application, and note machine
settings. The new steering pod assembly (1)
must be configured to the same settings.
NOTE: If steering pod assembly is completely
inoperable, the machine configuration settings will
need to be set to the optional equipment on the
machine and / or set to the standard default
settings.
2. If steering pod assembly on machine is
operable, record the hours from the hour
meter.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
3. Disconnect the battery cable from the
machine.
IB 9015105 (06- 2017)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
4. Remove the access panel from the machine.
Set the access panel and all hardware aside.
INSTALLATION:

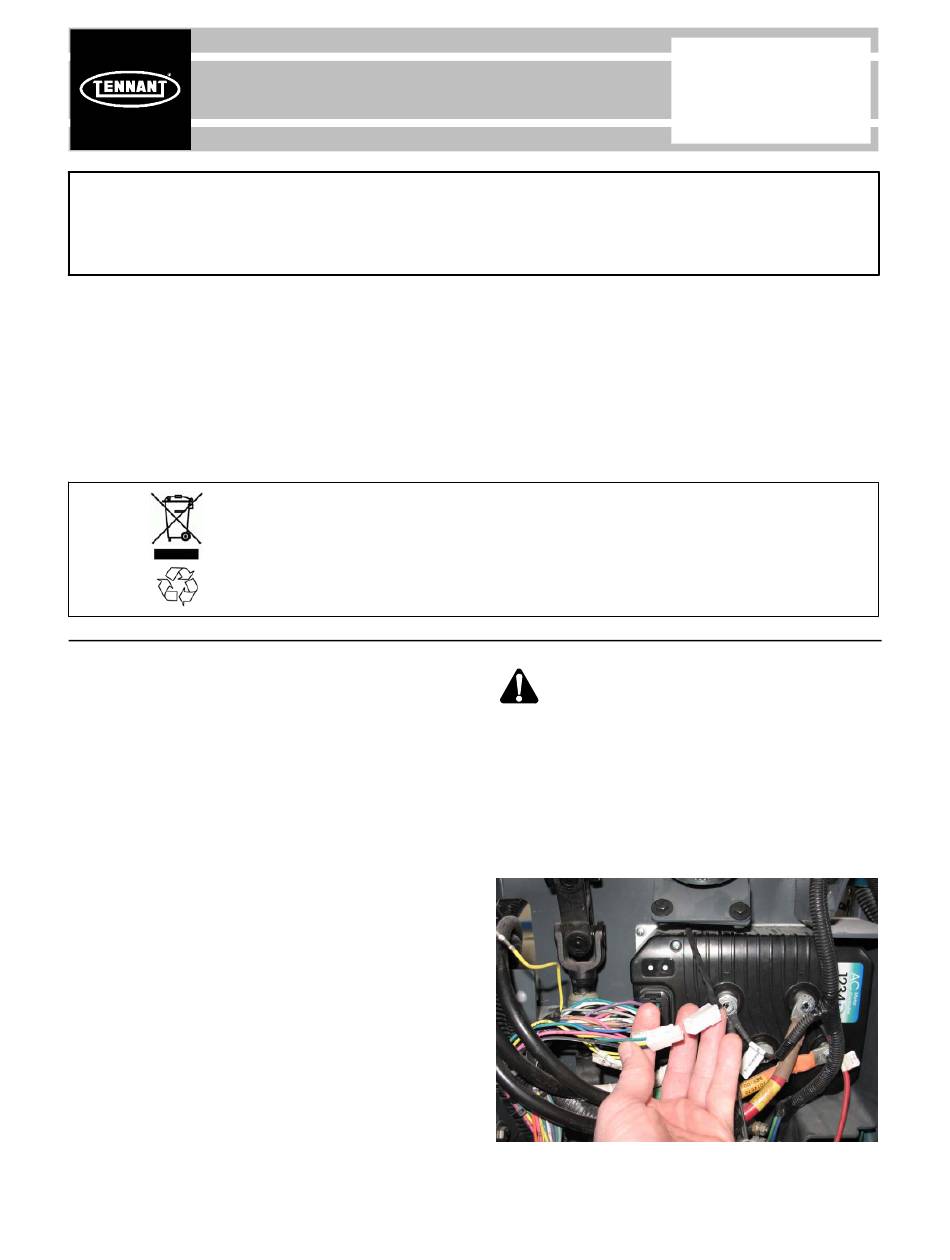

1. Disconnect the main wire harness from the
steering pod assembly. (Fig. 1)
FIG. 1
No. 9015105
Machine: M17
Published: 06- 2017
Rev. 03
1
