INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9015633/9015042
SYNOPSIS:

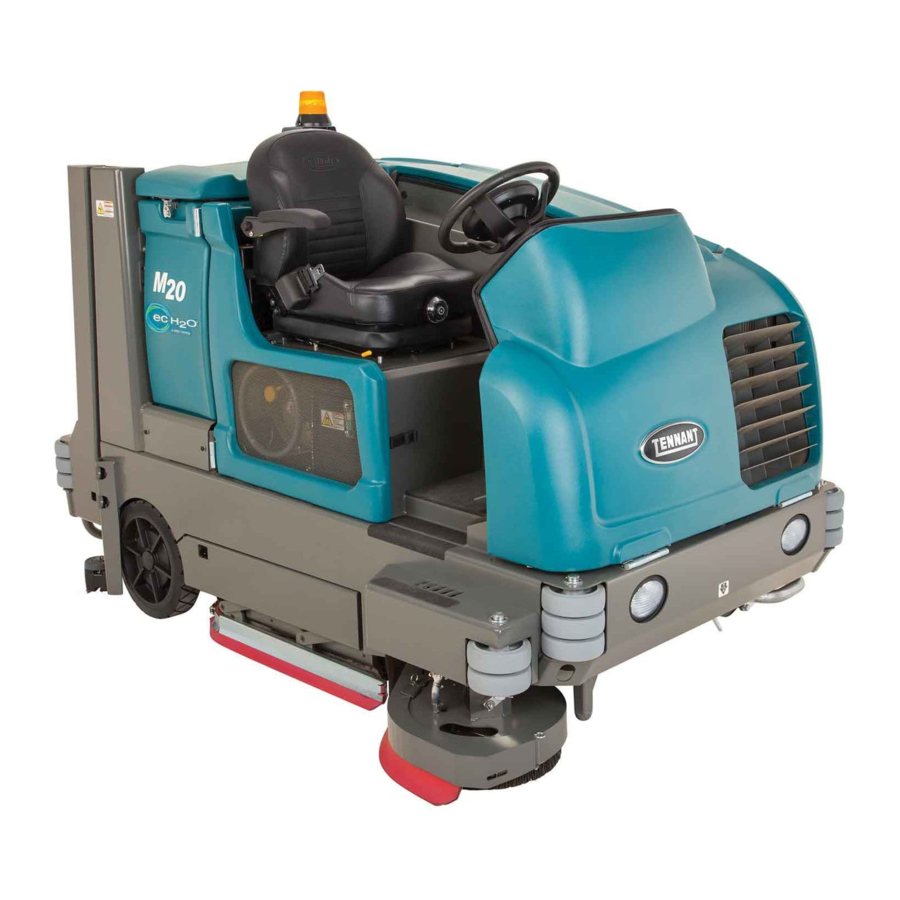

This kit contains the parts needed to replace Pro- Panel assembly on M17/M20/M30/T20 machines.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 45- 60 minutes)
PREPARATION (M20/M30/T20 ONLY):
1. If the pod assembly on machine is operable,
connect service computer to the pod, turn the
key to the ON position, but do not start the
machine, start the Capture application, and
note machine settings. The new pod
assembly (1) will need to be configured to the
same settings.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, set parking brake, and remove key.
2. Disconnect the battery cables from the
battery.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
3. Open the front shroud to access the steering
mechanism components.
IB 9015637 (03- 2020)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
INSTALLATION (M20/M30/T20 ONLY):

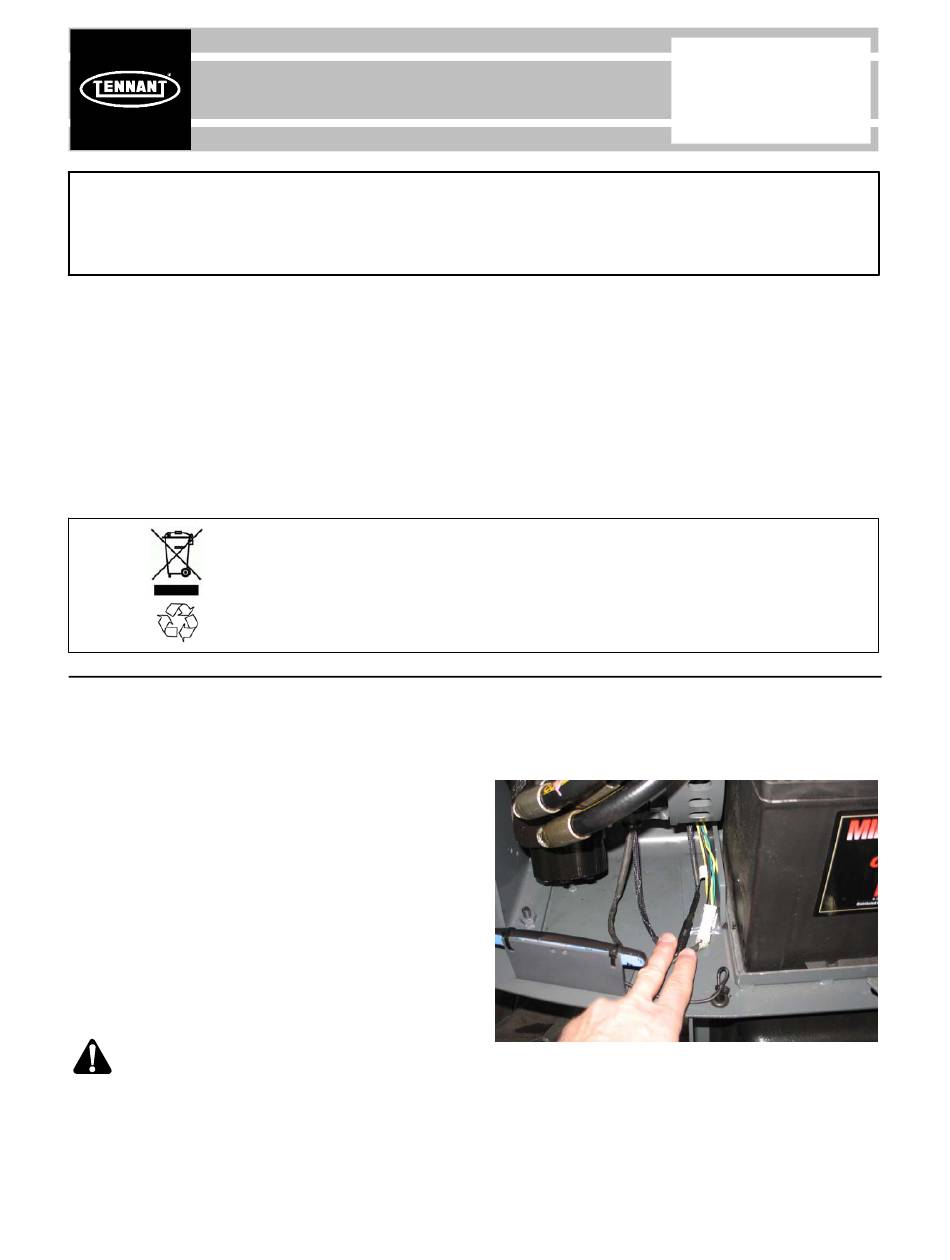

1. Disconnect the pod cables from the main wire
harness. (Fig. 1)
FIG. 1
No. 9015637
Machine: M20/T20/
M30/M17
Published: 03- 2020
Rev. 01
1
Advertisement
Related Manuals for Tennant M20
Summary of Contents for Tennant M20
- Page 1 NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials. Installation instructions for kit number 9015633/9015042 SYNOPSIS: This kit contains the parts needed to replace Pro- Panel assembly on M17/M20/M30/T20 machines. Please follow step-by-step instructions. SPECIAL TOOLS / CONSIDERATIONS: NONE...
- Page 2 2. Loosen the socket screws (Qty. 2) securing 4. Remove the two thrust washers from the pod the pod assembly into the steering tilt bracket. assembly. Set the thrust washers aside. (Fig. 2/Fig. 3) Discard the removed pod assembly. (Fig. 3) 5.
- Page 3 PREPARATION (M17 ONLY): INSTALLATION (M17 ONLY): 1. If pod assembly on machine is operable, 1. Disconnect the main wire harness and rear connect service computer to the pod, turn the view camera cable from the Pro- Panel pod key to the ON position, start the Capture assembly.
- Page 4 FRONT Thrust washers (Qty. 2) Inductor (CE / Australia Only): Install onto new Pro- Panel pod assembly (1) To: Main wire harness To: Rear view camera Loosen M6 *Bearing set screws plate (Qty. 2) *Do Not remove bearing plate from machine/steering mechanism when replacing Pro- Panel pod assembly (1).
- Page 5 (Fig. 7) www.tennantco.com. Depending on geographic location, the website may have a “Log in/Sign Up” Icon on button at the upper right or a “My Tennant Desktop Customer Sign In” tab at the upper right of the Tennant website. (Fig. 8) Proceed with the software download instructions as described on the following pages.
- Page 6 Website with “Log In / Sign Up” button: 4. Within the Service Application Software page, (Access to “My Account”) (ALL MACHINES): click on the link titled “Service Diagnostics LE version 1.5.12” or later. (Fig. 9) 1. Log in or Sign Up to create an account. (Fig.
- Page 7 4. The application software will connect to the From Start menu machine. (Fig. 19) FIG. 16 Start menu > All Programs > Tennant FIG. 19 Company > Tennant Service Diagnostics If the application remains on the “Connecting to Machine...” screen for an extended period, cycle key or close and restart the application software.
- Page 8 5. The following screen appears when the 7. The application will begin configuring the new application software is connected to machine control board. Allow the configuration process (Fig. 20). Enter the machine serial number to be completed. (Fig. 22) from the label on machine (ex. M17- 12345678).
- Page 9 12. Check the machine configuration selections 15. Cycle key to apply the corrected configuration for incorrect installed options. Select the setting. Configuration button. (Fig. 24) NOTE: The hour meter on Gas / LPG does not need to be reset. The newly installed pod will automatically reset to the correct hour meter reading based on the hour setting (engine run time) from the engine.
- Page 10 Service are screen from the M17. The same screens exist Modes button. (Fig. 28) for the M20/M30/T20 machines but may be different in appearance or have slightly different nomenclature. 1. Use the keypad to enter the supervisor mode log in number into the display above the keypad.
- Page 11 6. Log in to the C16: Propel H.M. Screen (hour RESET THE HOPPER ROLL OUT (M17 ONLY): meter reset password is 0000): Use the minus 1. Turn the key to the ON position and ensure (- ) button to enter 0 (zero) at first asterisk. hopper is completely lowered and rolled in.
- Page 12 Bill Of Materials For Panel Kit, Pod, Afmkt [M17, Touch Screen] - 9015042 Tennant Part No. Ref. Description Qty. 1215588 Panel Assy [M17, UI, Touch Screen] Bill Of Materials For Panel Kit, Pod, Afmkt [Pro, M20/M30/T20] - 9015633 Tennant Part No. Ref. Description Qty. 1225047 Panel Assy [UI, Touchscreen] TENNANT COMPANY P.
