Comeup CWS-80 Quick Start Manual

PN: 422303 110V 422774 220V 422287 230V 423766 240V
422600 230V 422384 240V 422181 230V 422677 220V
Introduction
 Feature
Lifting capacity: 80 kg wire rope top layer
Lifting height: 23 m
Lifting speed: 18 – 30 m/min
Brake: Electromagnetic and mechanical ratchet
Limit protection: Lifting and lowering limiters
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 4 mm x 24 m, except for PN 422677
．Wire rope 3.2 mm x 36 m for PN:422384 / 422182 /
．Wight hook CHW-0032, except for PN 422677
．Power lead 1.5 mm 2 x 3C x 5 m and plug
．Pendant switch PB-417 w/cord 1.25mm
．Pendant switch PO3.5 w/cord 1.25mm
for PN: 422181 / 422182
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Quantity for each part

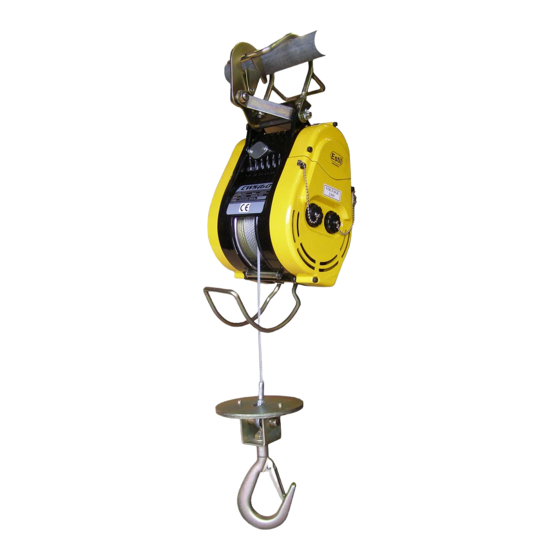

Compact Winch
CWS-80
Model:
422182 230V 420610 230V
1pc
1pc
420610
1pc
1pc
1pc
2
x 6C x 10m
1pc
2
x 6C x 10m
1pc
．Serial number
．Replacement part number
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Wire rope replacement
． Put a new wire rope through the hole of the round plate of weight hook.
． Insert a sleeve pin through the thimble of wire rope.
． Insert a pin through the sleeve pin and bent it by a pliers.
． Let a new wire rope w/clamp through the limit lever and insert it into the
hole of the drum.
． Put a P.T. screw into the hole of the drum and tighten it by a hexagon
wrench.
． Press the ↑button to rotate the drum in the lifting direction.
． An uneven winding of wire rope may cause the load to be swing, thus
damaging the rope and reducing its life.
 Wiring Diagram
Warning
． The winch is not intended to be used in any manner for the movement or
lifting of personnel.
． The lifting capacity shown is based on the top layer of rope on the drum.
． The rope winding on the drum shall remain 5 wraps from the drum.
