Introduction
Feature
Lifting capacity:
Lifting height:
Lifting speed:
Brake:
Limit protection:
Control:
Unpacking
．Winch assembly
．Wire rope 4.8 mm x 31 m, except for PN:420625
．Wire rope 4 mm x 41 m for PN:420989/420467
．Weight hook CHW-0033
．Power lead 1.5 mm
．Power lead 1.5 mm
．Pendant switch PB-317 w/cord 1.25 mm
．Pendant switch PO3.5 w/cord 1.25 mm
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Quantity for each part
PN : 420999 110V 420943 230V 420456 230V 420980 240V
420989 240V 420625 220V 420467 240V 420944 220V
160 kg wire rope top layer
30 m
14 – 22 m/min
Electromagnetic and mechanical ratchet
Lifting and lowering limiters
Pendant switch powers the winch
2
x 3C x 5 m and plug
2
x 3C x 3 m and plug for PN:420989/420467
Model:
420788 230V 420922 230V
2
x 6C x 10 m
2
x 6C x 10 m for PN:420788 1pc
．Part description
．Replacement part number

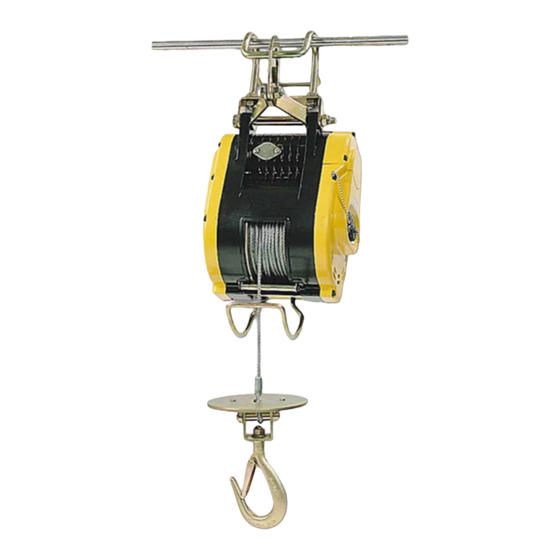

Baby Winch
CWS-160
1pc
1pc
1pc
1pc
1pc
1pc
1pc
