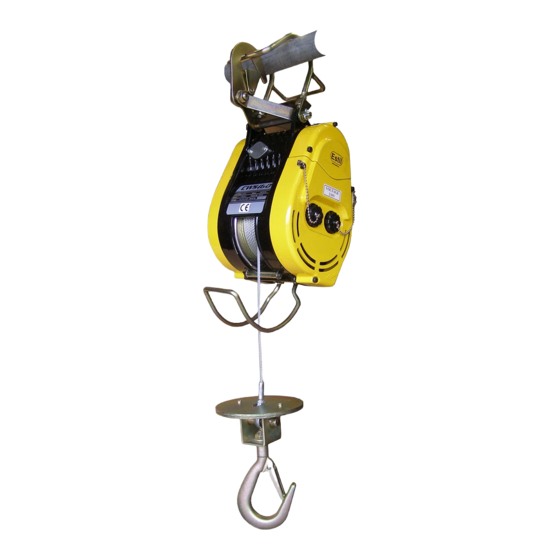

Comeup CWS-80 Manual
Baby winch
Hide thumbs
Also See for CWS-80:
- Instruction manual (21 pages) ,
- Manual (16 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Quick Links
Introduction
Feature
Lifting capacity:
Lifting height:
Lifting speed:
Brake:
Limit protection:
Control:
Unpacking
．Winch assembly
．Wire rope 4 mm x 24 m, except for PN 422677
．Wire rope 3.2 mm x 36 m for PN:422384 / 422182
．Wight hook CHW-0032, except for PN 422677
．Power lead 1.5 mm
．Pendant switch PB-317 w/cord 1.25mm
．Pendant switch PO3.5 w/cord 1.25mm
for PN: 422181 / 422182
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Quantity for each part
PN: 422303 110V
422600 230V
80 kg wire rope top layer
23 m
18 – 30 m/min
Electromagnetic and mechanical ratchet
Lifting and lowering limiters
Pendant switch powers the winch
2
x 3C x 5 m and plug
Model:
422774 220V 422287 230V
422384 240V 422181 230V
2
x 6C x 10m
2
x 6C x 10m
．Serial number
．Replacement part number
Baby Winch
CWS-80
423766 240V
422677 220V
422182 230V
1pc
1pc
1pc
1pc
1pc
1pc
1pc
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comeup CWS-80
Summary of Contents for Comeup CWS-80
- Page 1 Baby Winch CWS-80 Model: PN: 422303 110V 422774 220V 422287 230V 423766 240V 422600 230V 422384 240V 422181 230V 422677 220V 422182 230V Introduction Feature Lifting capacity: 80 kg wire rope top layer Lifting height: 23 m Lifting speed: 18 – 30 m/min...
- Page 2 Installation Before using the winch, make sure all electrical components have no corrosion or damaged; the environment should be clear and dry. Wire rope replacement ． Put a new wire rope through the hole of the round plate of weight hook. ．...
- Page 3 Parts List Item No. Description Part No. Gearbox rear cover kit 880565 Gearbox rear cover kit for PN: 881348 422600 Ratchet stopper kit 880506 gear kit 881566 Brake kit 881567 gear kit 880469 Gear box kit 881568 Gear box kit for PN: 881571 422600 Hanger kit...
- Page 4 Winch Assembly...
