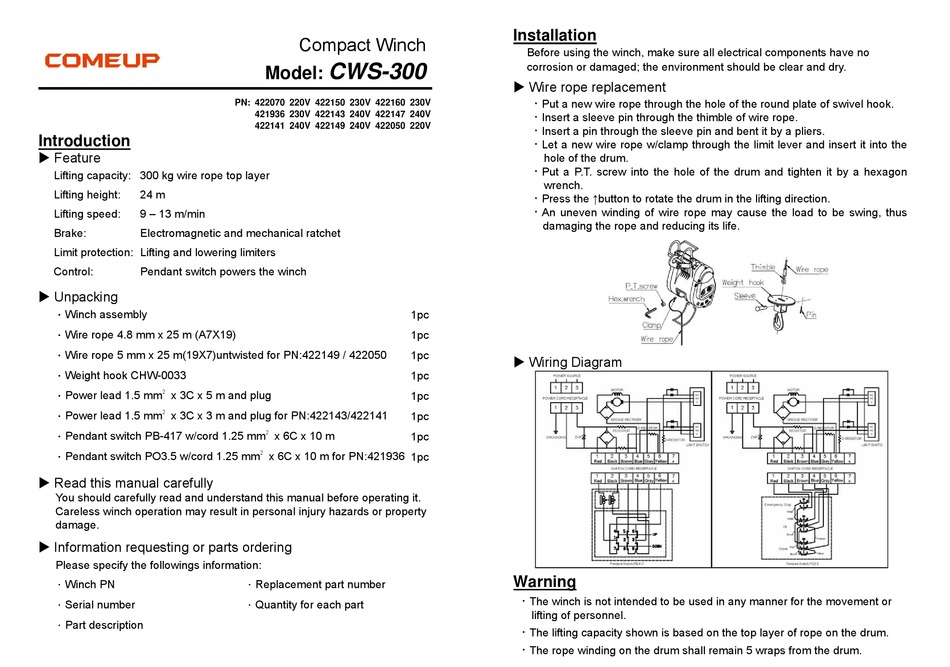

Comeup 422070 220V Manual

Introduction

 Feature
Lifting capacity: 300 kg wire rope top layer
Lifting height: 24 m
Lifting speed: 9 – 13 m/min
Brake: Electromagnetic and mechanical ratchet
Limit protection: Lifting and lowering limiters
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 4.8 mm x 25 m (A7X19)
．Wire rope 5 mm x 25 m(19X7)untwisted for PN:422149 / 422050
．Weight hook CHW-0033
．Power lead 1.5 mm 2 x 3C x 5 m and plug
．Power lead 1.5 mm 2 x 3C x 3 m and plug for PN:422143/422141
．Pendant switch PB-417 w/cord 1.25 mm
．Pendant switch PO3.5 w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description

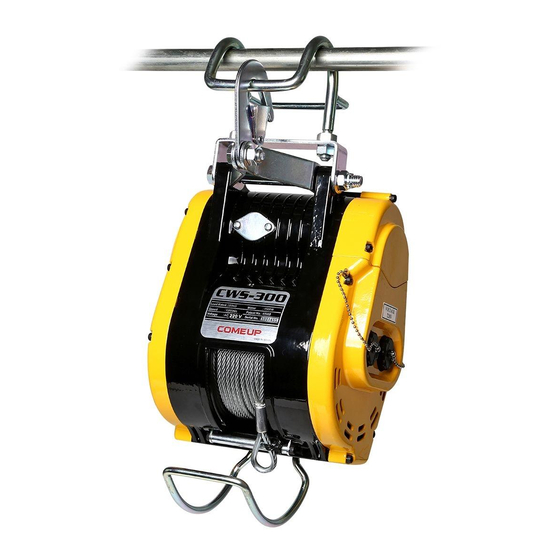

Compact Winch
CWS-300
Model:
PN: 422070 220V 422150 230V 422160 230V
421936 230V 422143 240V 422147 240V
422141 240V 422149 240V 422050 220V
2
x 6C x 10 m
2
x 6C x 10 m for PN:421936 1pc
．Replacement part number
．Quantity for each part

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Wire rope replacement
． Put a new wire rope through the hole of the round plate of swivel hook.
． Insert a sleeve pin through the thimble of wire rope.
． Insert a pin through the sleeve pin and bent it by a pliers.
． Let a new wire rope w/clamp through the limit lever and insert it into the
hole of the drum.
． Put a P.T. screw into the hole of the drum and tighten it by a hexagon
wrench.
． Press the ↑button to rotate the drum in the lifting direction.
． An uneven winding of wire rope may cause the load to be swing, thus
damaging the rope and reducing its life.
1pc
1pc
1pc
 Wiring Diagram
1pc
1pc
1pc
1pc

Warning

． The winch is not intended to be used in any manner for the movement or
lifting of personnel.
． The lifting capacity shown is based on the top layer of rope on the drum.
． The rope winding on the drum shall remain 5 wraps from the drum.
