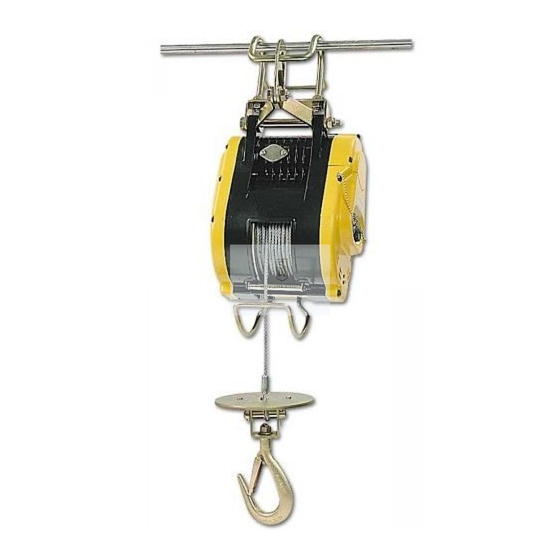

Comeup CWS-230 Manual

Introduction

Feature

Lifting capacity: 230 kg wire rope top layer
Lifting height:
Lifting speed:
Brake:
Limit protection: Lifting and lowering limiters
Control:

Unpacking

．Winch assembly
．Wire rope 5 mm x 25 m(6X19), except for PN:421794
．Wire rope 5 mm x 25 m(19X7)untwisted for PN:421392 / 421949
．Weight hook CHW-0033
．Power lead 1.5 mm
．Power lead 1.5 mm
．Pendant switch PB-317 w/cord 1.25 mm
．Pendant switch PO3.5 w/cord 1.25 mm
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Quantity for each part
24 m
9 – 14 m/min
Electromagnetic and mechanical ratchet
Pendant switch powers the winch
2
x 3C x 5 m and plug
2
x 3C x 3 m and plug for PN:421960 / 421470
Model:
PN: 421000 220V 421929 230V 421960 240V
421949 240V 421870 230V 421470 240V
421912 230V 421392 110V 421794 220V
2
x 6C x 10 m
2
x 6C x 10 m for PN:421870
．Serial number
．Replacement part number
Baby Winch
CWS-230
421399 110V 421391 240V
