Comeup CWS-300 Manual
Baby winch
Hide thumbs
Also See for CWS-300:
- Quick start manual (2 pages) ,
- Instruction manual (21 pages) ,
- Manual (16 pages)
Table of Contents
Advertisement
Quick Links
Introduction
Feature
Lifting capacity: 300 kg wire rope top layer
Lifting height:
Lifting speed:
Brake:
Limit protection: Lifting and lowering limiters
Control:
Unpacking
．Winch assembly
．Wire rope 4.8 mm x 25 m (A7X19)
．Wire rope 5 mm x 25 m(19X7)untwisted for PN:422149
．Weight hook CHW-0033
．Power lead 1.5 mm
．Power lead 1.5 mm
．Pendant switch PB-317 w/cord 1.25 mm
．Pendant switch PO3.5 w/cord 1.25 mm
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
24 m
9 – 13 m/min
Electromagnetic and mechanical ratchet
Pendant switch powers the winch
2
x 3C x 5 m and plug
2
x 3C x 3 m and plug for PN:422143/422141
Model:
PN: 422070 220V 422150 230V
421936 230V 422143 240V 422147 240V
2
x 6C x 10 m
2
x 6C x 10 m for PN:421936 1pc
．Replacement part number
．Quantity for each part

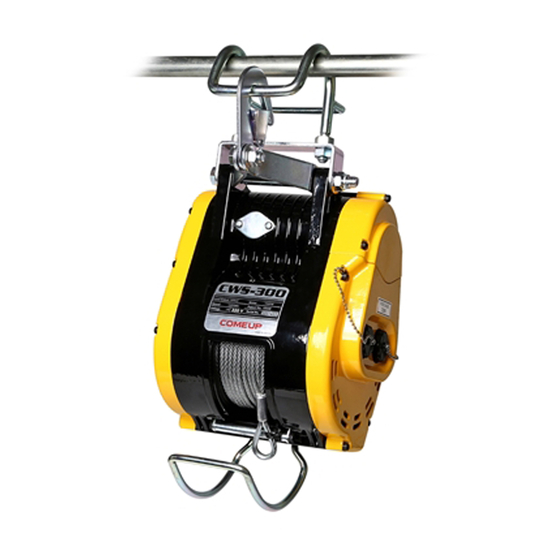

Baby Winch
CWS-300
422160 230V
422141 240V
422149 240V
1pc
1pc
1pc
1pc
1pc
1pc
1pc
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comeup CWS-300
Summary of Contents for Comeup CWS-300
- Page 1 Baby Winch CWS-300 Model: PN: 422070 220V 422150 230V 422160 230V 421936 230V 422143 240V 422147 240V 422141 240V 422149 240V Introduction Feature Lifting capacity: 300 kg wire rope top layer Lifting height: 24 m Lifting speed: 9 – 13 m/min...
- Page 2 Installation Before using the winch, make sure all electrical components have no corrosion or damaged; the environment should be clear and dry. Wire rope replacement ． Put a new wire rope through the hole of the round plate of swivel hook. ．...
- Page 3 Parts List Item Description Part No. Gearbox rear cover kit 880493 Gearbox rear cover kit for PN:422160 881352 Ratchet stopper kit 880547 Brake kit 881507 gear kit 881498 gear kit 881508 gear kit 880500 Gear box kit 880470 Gear box kit for PN:422160 881353 Hanger kit...
- Page 4 Winch Assembly...
