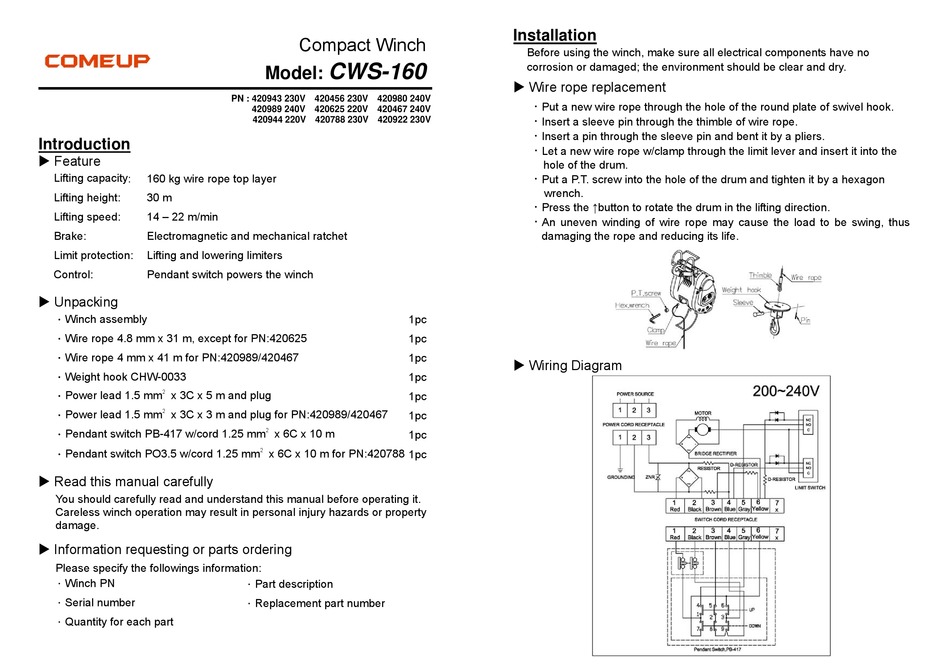

Comeup 420943 230V Manual

Introduction
 Feature
Lifting capacity: 160 kg wire rope top layer
Lifting height: 30 m
Lifting speed: 14 – 22 m/min
Brake: Electromagnetic and mechanical ratchet
Limit protection: Lifting and lowering limiters
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 4.8 mm x 31 m, except for PN:420625
．Wire rope 4 mm x 41 m for PN:420989/420467
．Weight hook CHW-0033
2
．Power lead 1.5 mm x 3C x 5 m and plug
．Power lead 1.5 mm 2 x 3C x 3 m and plug for PN:420989/420467
．Pendant switch PB-417 w/cord 1.25 mm
．Pendant switch PO3.5 w/cord 1.25 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Quantity for each part

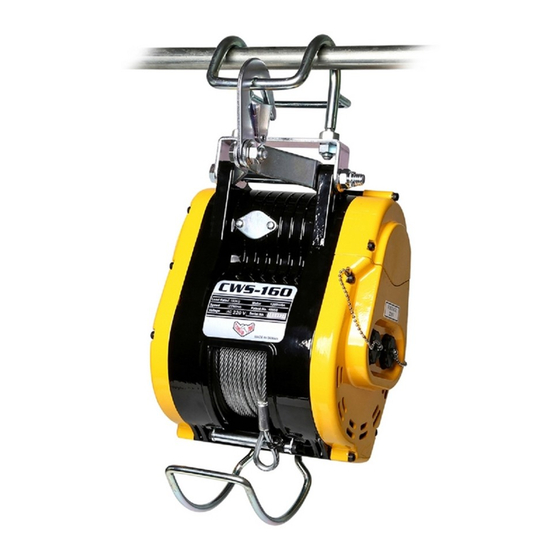

Compact Winch
CWS-160
Model:
PN : 420943 230V 420456 230V 420980 240V
420989 240V 420625 220V 420467 240V
420944 220V 420788 230V 420922 230V
2
x 6C x 10 m
2 x 6C x 10 m for PN:420788 1pc
．Part description
．Replacement part number
Installation
Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Wire rope replacement
． Put a new wire rope through the hole of the round plate of swivel hook.
． Insert a sleeve pin through the thimble of wire rope.
． Insert a pin through the sleeve pin and bent it by a pliers.
． Let a new wire rope w/clamp through the limit lever and insert it into the
hole of the drum.
． Put a P.T. screw into the hole of the drum and tighten it by a hexagon
wrench.
． Press the ↑button to rotate the drum in the lifting direction.
． An uneven winding of wire rope may cause the load to be swing, thus
damaging the rope and reducing its life.
1pc
1pc
1pc
 Wiring Diagram
1pc
1pc
1pc
1pc
