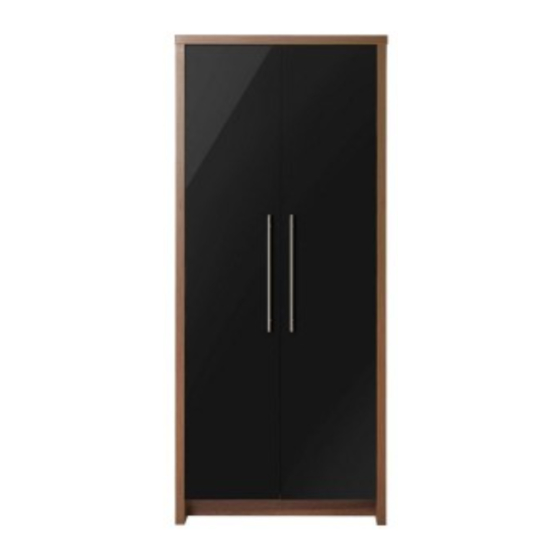

Argos Camden 264/9971 Assembly Instructions Manual

Argos Camden 264/9971 Assembly Instructions Manual

2 door robe

Advertisement

Quick Links

Camden - 2 Door Robe
Assembly Instructions -
Dimensions
Width - 79.5cm
Depth - 49.5cm
Height - 183.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
264/9971
266/1021
MADE IN
BRITAIN
Issue 4 - 24/03/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the Camden 264/9971 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Camden 264/9971

  • Page 1 Camden - 2 Door Robe Assembly Instructions - 264/9971 Please keep for future reference 266/1021 Dimensions Width - 79.5cm Depth - 49.5cm MADE IN Height - 183.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 4 - 24/03/14...
  • Page 2: Care And Maintenance

    Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 45kgs. Please lift space to layout the parts before recommend the with care.
  • Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side Door (D2004A) (D2005A) (D2008A) (1800 x 491mm) (1800 x 491mm) (1700 x 358mm) x 2 Plinth...
  • Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
  • Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the left side Fit 3 hinge plates onto the left side making sure that the slot is facing towards the finished front edge.
  • Page 6 Assembly Instructions Step 2 Prepare the right side Fit 3 hinge plates onto the right side making sure that the slot is facing towards the finished front edge. To fit the rail holder . , screw through the top hole with screw and into the mark hole drilled in the right side .
  • Page 7 Assembly Instructions Step 3 Prepare the base Insert 4 large locking nuts into the base Note: The arrow on the locking nut must point towards the hole in the edge of the panel. Tap 2 wooden dowels into the base 10mm Note: Wooden dowels must not stick out from...
  • Page 8 Assembly Instructions Step 6 Fit the top Attach the top onto the assembly. Note: You will need to slide the 2 small metal dowels into the top of the 2 hollow core locking nuts Insert a screwdriver into the 2 hollow core locking nuts and turn the nuts inside as far as they will...
  • Page 9 Assembly Instructions Step 8 Fit the plinth and the back rail Push the plinth the back rail onto the right side Use a screwdriver to tighten the 2 large locking nuts fitted to the plinth and back rail Note: Support the end of the plinth back rail until the left...
  • Page 10 Assembly Instructions Step 10 The measurement from top corner X to bottom corner X must be Fit the back panel equal to the measurement from top corner Y to bottom corner Y Square up the unit by making sure that measurement x to x equals y to y.
  • Page 11 Assembly Instructions Step 11 Fit the hanging rail Push the hanging rail into the rail holders fitted to the side panels. Step 12 Prepare the 2 doors Push fit the 3 hinges into the door Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are...
  • Page 12 Assembly Instructions Step 13 Fit doors and handles screw A 2 people are needed here Note: The easiest way to attach the door is to fit the top hinge first, then align and fit the other hinges. screw B Push the hinge onto the front part of the hinge plate Keep the hinge...
  • Page 13 Assembly Instructions Step 14 Adjust doors if needed Before adjusting the doors, use a spirit level to check the top (or base) of the unit is level, front-to-back and side- to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
  • Page 14 Lift with care. Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
  • Page 16 ALR2982...

This manual is also suitable for:

Camden 266/1021
