New Hallingford - 5+2 Drawer Chest
Assembly Instructions -
Dimensions
Width - 74cm
Depth - 40cm
Height - 107.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928
or email: Help@ClickSpares.co.uk (quoting your original order number)
Please keep for future reference
245/8629
244/8639
266/1708
258/7772
267/6401
MADE IN
BRITAIN
Issue 6 - 02/05/14
Advertisement
Related Manuals for Argos New Hallingford
Summary of Contents for Argos New Hallingford

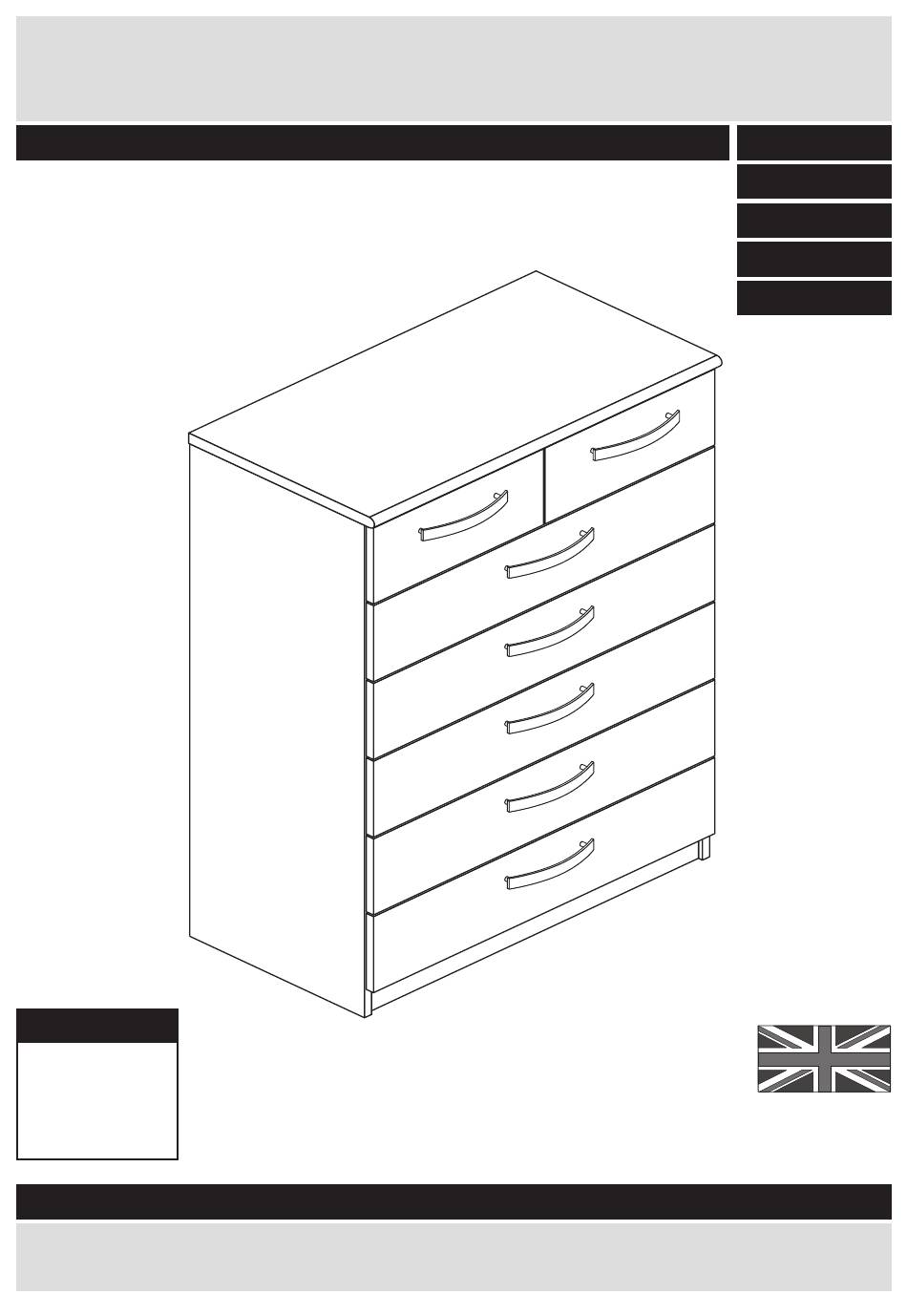

- Page 1 New Hallingford - 5+2 Drawer Chest Assembly Instructions - 245/8629 Please keep for future reference 244/8639 266/1708 258/7772 267/6401 Dimensions Width - 74cm Depth - 40cm MADE IN Height - 107.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number)
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 37kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers below) Please check you have all the panels listed below (D2311A) (740 x 396mm) Rail (D2315A)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers below) Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers below) Step 1 Prepare the 2 small drawer fronts Screw 2 metal dowels into the holes shown on the back of each of the small drawer fronts...
- Page 6 Assembly Instructions Step 4 Fit the small drawer base Slide the small drawer base down the grooves in the drawer sides down into the groove in the small drawer front Step 5 Fit the small drawer back Fit the small drawer back between the drawer sides Make sure that the small...
- Page 7 Assembly Instructions Step 8 Runners must be pushed up against the drawer front Fit runners to the small drawers Turn the 2 small drawer assemblies over. Fit runner , marked with ‘R’, to the bottom edge of the right drawer side , as shown, making sure that it is...
- Page 8 Assembly Instructions Step 11 Groove Attach the drawer sides to the large drawer front Push the left drawer side and right drawer side onto the back of the large drawer front Turn the small locking nuts on the left drawer side and right drawer side Note: Turn the locking...
- Page 9 Assembly Instructions Step 14 Attach the handles Attach a handle each of the large drawer fronts using 2 screws Step 15 Fit the wedgefixes Note: Before adding the wedgefixes, make sure the assembled drawer is square. Turn the drawer assemblies over and slide 4 wedgefixes into the front and back grooves, as shown, and...
- Page 10 Assembly Instructions Step 17 screw screw screw Prepare the left side Fit 6 runners the left side The 1st screw uses Finished the 2nd hole in from the front edge front of the runner. The 2nd and 3rd screws use the holes that line up with the other panel holes.
- Page 11 Assembly Instructions Step 18 Prepare the right side Fit 6 runners the right side The 1st screw uses the 2nd hole in from the Finished front edge front of the runner. The 2nd and 3rd screws screw screw screw use the holes that line up with the other panel holes.
- Page 12 Assembly Instructions Step 20 Join the right side and rails Push the 3 rails onto the right side p l a i n c h i p Use a screwdriver to a r d s u r tighten the 3 large f a c locking nuts fitted to...
- Page 13 Assembly Instructions Step 22 screw screw screw Prepare both surfaces of the divider Note: The colour of the divider may differ from the main unit colour. Fit a runner the divider The 1st screw uses the 2nd hole in from the front of the runner.
- Page 14 Assembly Instructions Step 23 Prepare the top Screw 4 metal dowels into the top 200mm Fix the bracket 200mm in from the side of the top and flush to the back edge, using Shaped screw front edge Step 24 Join the divider and Push the divider onto Finished...
- Page 15 Assembly Instructions Step 26 Fit the 4 plastic nails Tap 2 plastic nails into the bottom edge of each of the sides Step 27 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that...
- Page 16 If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers on the component pages) Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2979...
