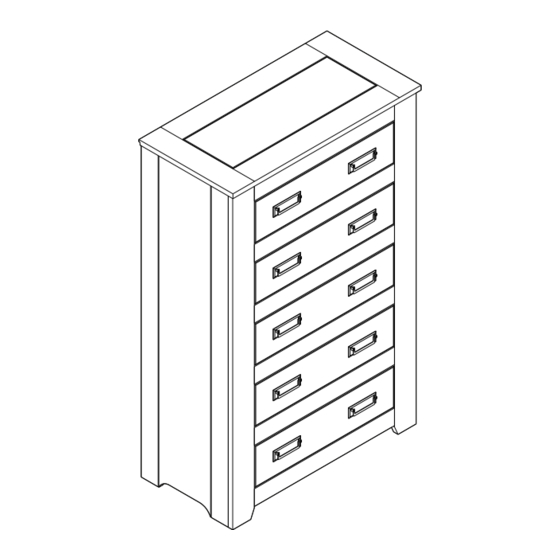

New Penton - 5 Drawer Chest

Assembly Instructions

Dimensions

Width - 80cm

Depth - 40cm

Height - 125cm

Important –

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the

- Please keep for future reference

Customer Helpline: 08456 400 800

245/7864

268/5131

244/4585

Issue 1 - 14/05/14

Need help?

Do you have a question about the New Penton 245/7864 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos New Penton 245/7864

Page 1 New Penton - 5 Drawer Chest Assembly Instructions - Please keep for future reference 245/7864 268/5131 244/4585 Dimensions Width - 80cm Depth - 40cm Height - 125cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400 800 Issue 1 - 14/05/14...
Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly Check you have all the This product has been produced We do not components and tools listed on from natural timber; you may recommend the pages 2 and 3. notice some variation in the grain use of power and colour of different component...
Page 3 Components - Panels Please check you have all the panels listed below 1 Right side panel (123 x 38cm) 7 Top panel (80 x 40cm) 8 Drawer front x 5 (59 x 15.4cm) 2 Left side panel (123 x 38cm) 9 Drawer side x 10 (29.8 x 15.4cm) Drawer back x 5...
Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 08456 400 800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5 Assembly Instructions Step 1 Fixing right front frame. (Two people required for an easier assembly). Insert right side panel into right front frame through joints. Yes! Note: Before fixing the blocks into place it is important to ensure that the slot and groove of parts are fully pushed together and lined up correctly at...
Page 6 Assembly Instructions Step 3 Fitting Metal dowels. Screw metal dowels into top panel Note: Insert metal dowels as far as shown. Do not over tighten. Step 4 Insert dowels into the indicated parts.
Page 7 Assembly Instructions Step 5 Fixing side drawer runners. Fit side drawer runners to the right side panel. Fit and push dowels into the front frame first. Attach side drawer runners using screw Repeat step 5 for the left side panel and side drawer runners.
Page 8 Assembly Instructions Step 7 Assembling the cabinet. Place right side panel properly ensuring front frames are all fitted into their holes at the same time. Fix bottom front frame and central front frame to the right and left side panels using screws as shown in the diagram.
Page 9 Assembly Instructions Step 9 Fixing top panel. With help, fit top panel to the cabinet. Insert 4 locking nuts into side panels where shown. Use a screwdriver to turn locking nuts clockwise to lock. Do not over tighten. Step 10 Fixing back panels.
Page 10 Assembly Instructions Step 11 Drawer assembly. Attach drawer sides to the drawer front using screws Slide drawer bottom into slots on drawer sides and position drawer back in place. Holding the drawer back , press the drawer sides and fix them using screws Using bolts attach...
Page 11 Assembly Instructions Step 13 Note: Wall plugs not supplied. Fixing to wall. The correct type of fixing must be used for your wall, seek Furniture must be fixed to professional advice if in doubt. a wall. Fix wall strap top of furniture using wall washer and screw...
Page 12: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
